Features

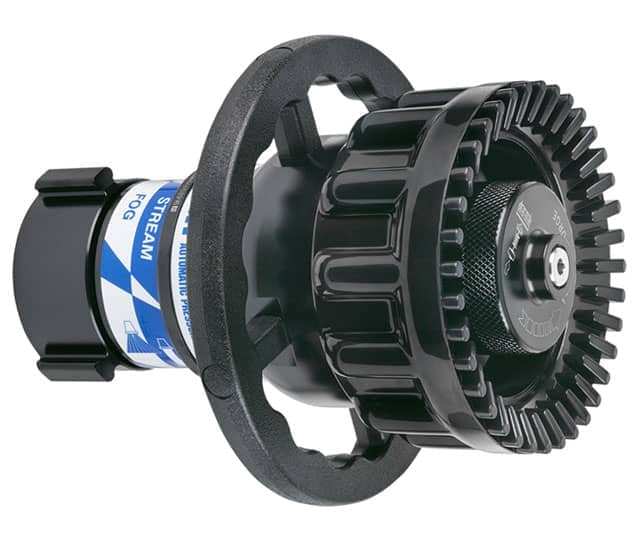

Flow range of 150-1000 gpm (600-3800 l/min). Fully automatic Master Stream nozzle for use on monitors, ladder pipes, deluge guns, and aerial platforms. Constant nozzle pressure regulated to 100 psi (7 bar). Continuously variable from straight stream to wide fog. Includes halo ring for manual pattern control. Rubber bumper incorporates TFT "power fog" teeth for fully-filled, finger-free fog pattern. Lightweight hardcoat anodized aluminum for maximum resistance to corrosion and wear. 2.5" NH (65mm) rocker lug swivel coupling is standard. 3.0" NH (75mm) or 3.5" NH (90mm) coupling is optional.


Specifications

Flow Rate 150-1000 gpm (600-3800 l/min)
Inlet Coupling Style Rocker
Inlet Coupling Swivel Full Time Swivel
Outlet Diameter N/A
Pressure Mode Single
Type Automatic
Operating Pressure 100 psi (7 bar)
Remote Control No

Documents

Certifications & Approvals
