Features

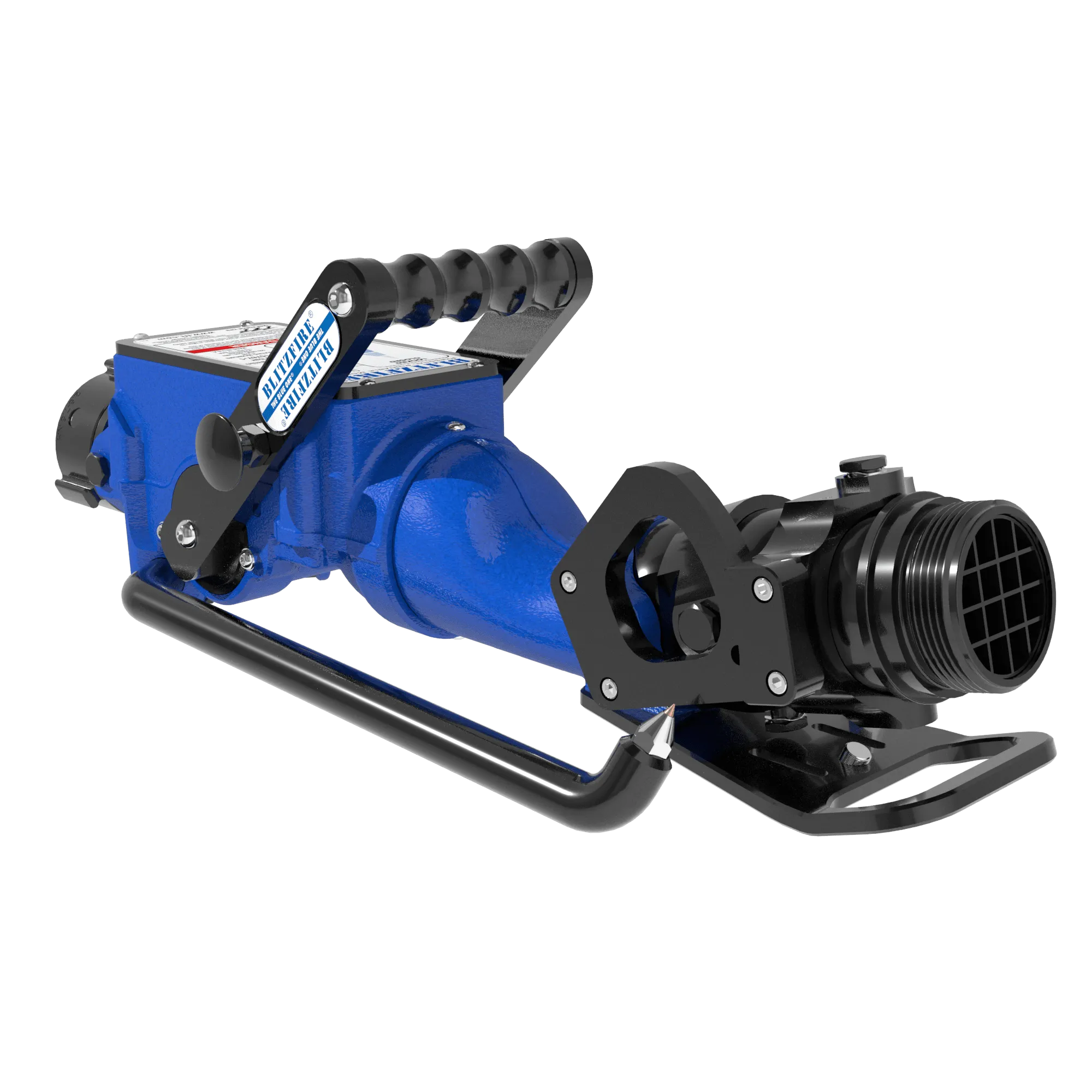

Flow range up to 500 gpm (2000 l/min). The monitor features low friction inlet and outlet pivots. Outlet has built-in stream shaper. Elevation is manually adjustable between 10 and 86 degrees above horizontal. Horizontal rotation is manually adjustable 20 degrees either side of center. The SAFETY SHUT-OFF VALVE will shut off flow if monitor slides or lifts. It has six detent flow positions with a patented turbulence free slide valve for operator flow control. When the legs are folded, the carbide tips point up for carrying safety. The heavy-duty carbide tipped legs are easily folded out to a wide deployed stance. Stowed in storage bracket overall size is 29.5"L x 8.1"W x 8.5"H (74.9 x 20.6 x 21.6 cm). Standard inlet is 2.5" NH (65mm) rocker lug swivel coupling. Standard outlet is 2.5" NH (65mm) rigid male threads.


Specifications

Coupling Style Side A Rocker
Finish Dark Blue
Horizontal Control N/A
Horizontal Movementdegrees 20 left and right of center
Inlet 2.5" (65mm)
Max Flow 500 gpm (2,000 l/min)
Operation Energy Source Manual
Oscillation No
Outlet 2.5" (65mm)
Package No
Safety Shutoff Yes
Valve Design Aluminum Slide Valve
Vertical Control N/A
Vertical Movementdegrees 10 to 86 above horizontal
