Manifolds
3-WAY VALVED SIAMESE MANIFOLD
Find a TFT Dealer Near You
location
Manifolds
LDH Water Thief Appliances allow you to break a single water source down into several smaller water sources.
Manifolds

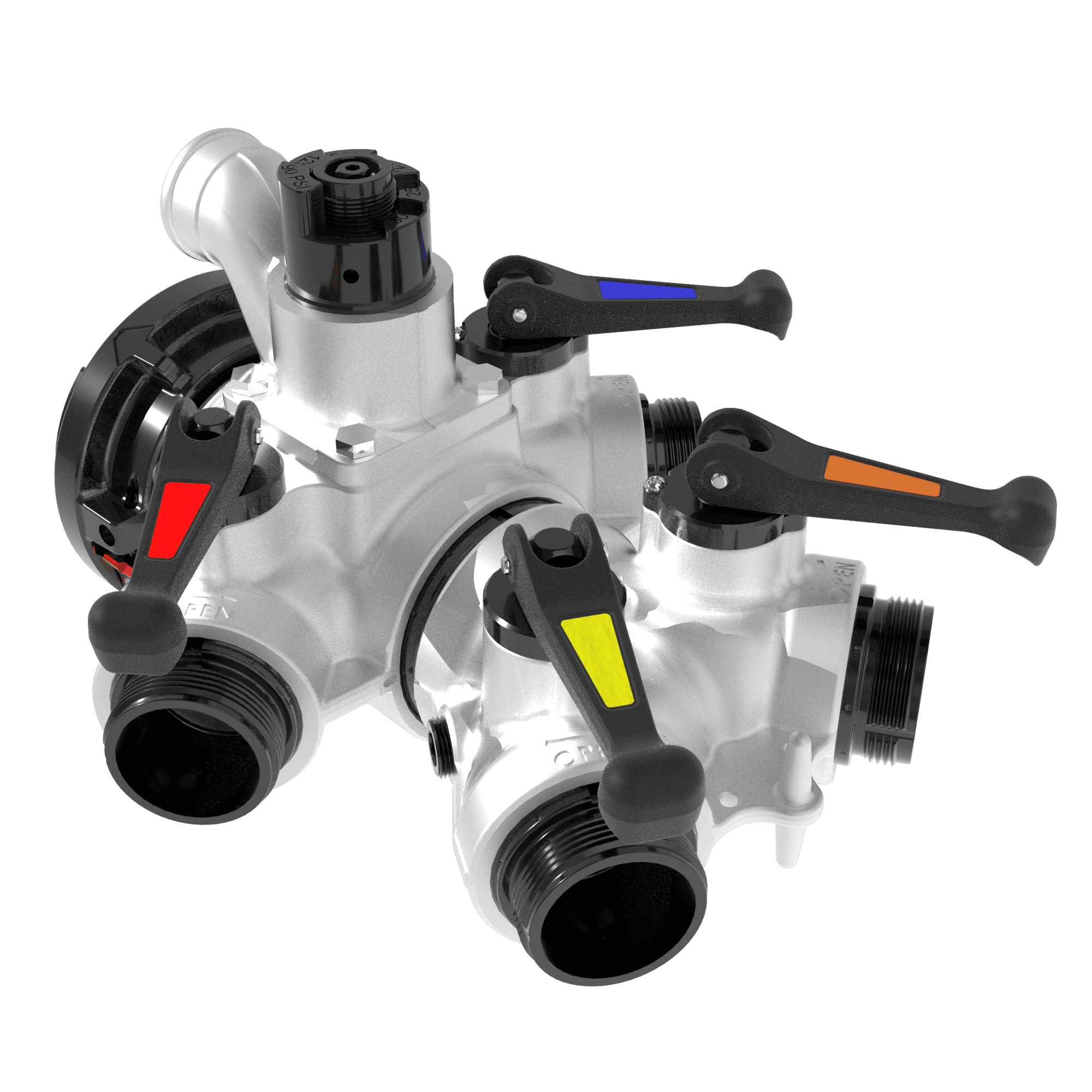

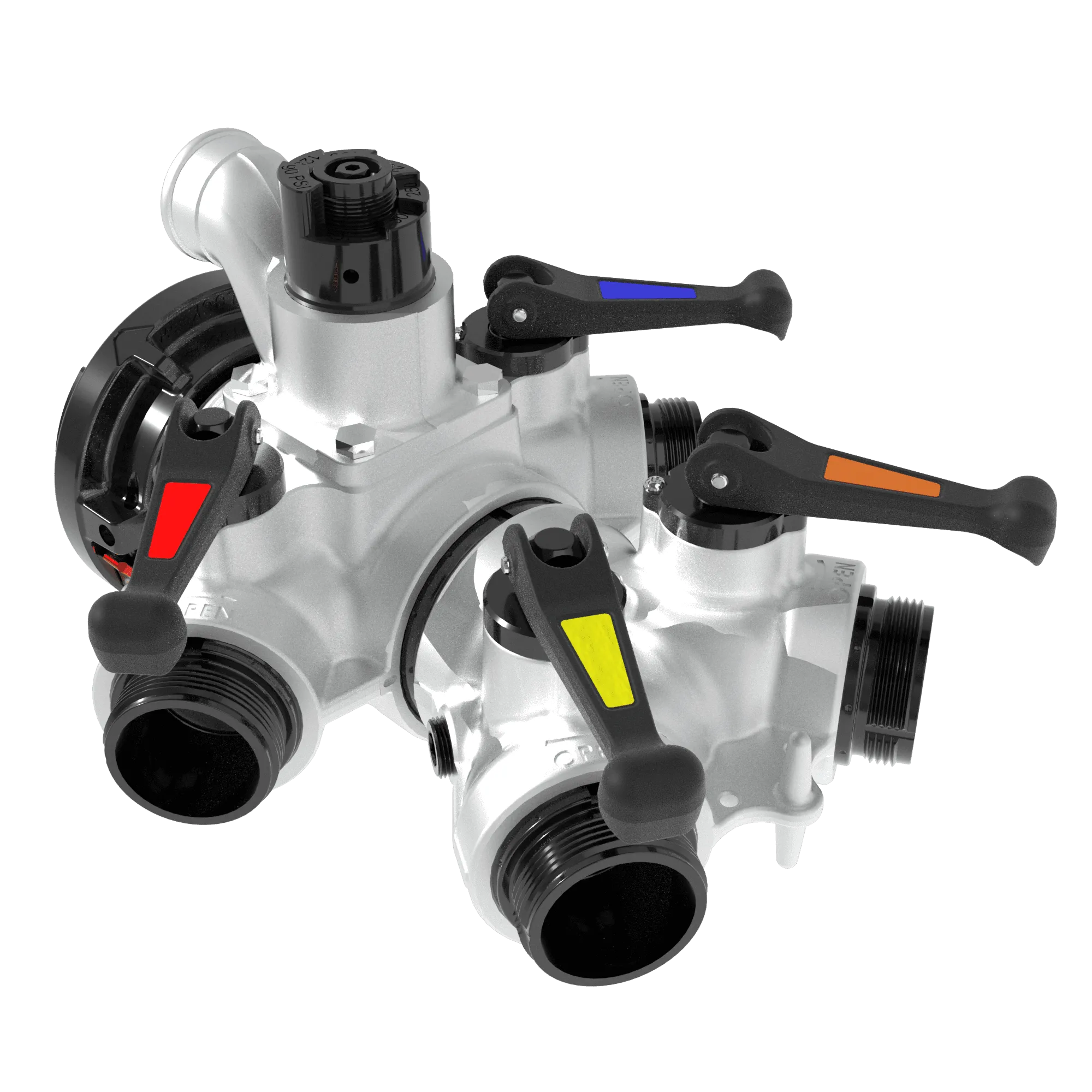

3-WAY VALVED SIAMESE MANIFOLD
AL72X0
A-STORZ 6" C-3 2.5"F
$2720.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Coupling Size Side A
6" (150mm)
Coupling Size Side B
2.5" (65 mm)
Coupling Swivel Side A
Full Time Swivel
Coupling Swivel Side B
Full Time Swivel
Finish
Stardust Silver
Handle Type
Quarter Turn
Inlet
2.5" (65 mm)
L D H Inlet
No
L D H Outlet
Yes
Material
Lightweight Cast Aluminum Alloy
Operation Energy Source
Manual
Pressure Relief Valve
No
Valve Actuation Method
Nylon Lever
Valve Design
Ball Valve Aluminum
Weight
33.45
Connection Type Side A
Storz
Coupling Style Side B
Rocker
Quarter Turn Valve Actuation Method
Nylon Lever
Quarter Turn Valve Design
Ball Valve Aluminum
Documents
Instructions For Installation, Safe Operation and Maintenance
3 & 4 Way, In Line, & Water Thief LDF Adapters (pdf)
4-Way Valved Manifold Suppliment (pdf)
5-WAY MANIFOLD Manual (pdf)
LDH Valved Appliances Manual (pdf)
Technical Bulletins & Testing Reports
LEC-017 New Aluminum Storz Lever (pdf)
LEC-033 Product Bulletin 5-Way Manifold New Safety Warnings (pdf)
Technical Specifications and Drawings
AL72X0 Item Specification (doc)
