Manifolds

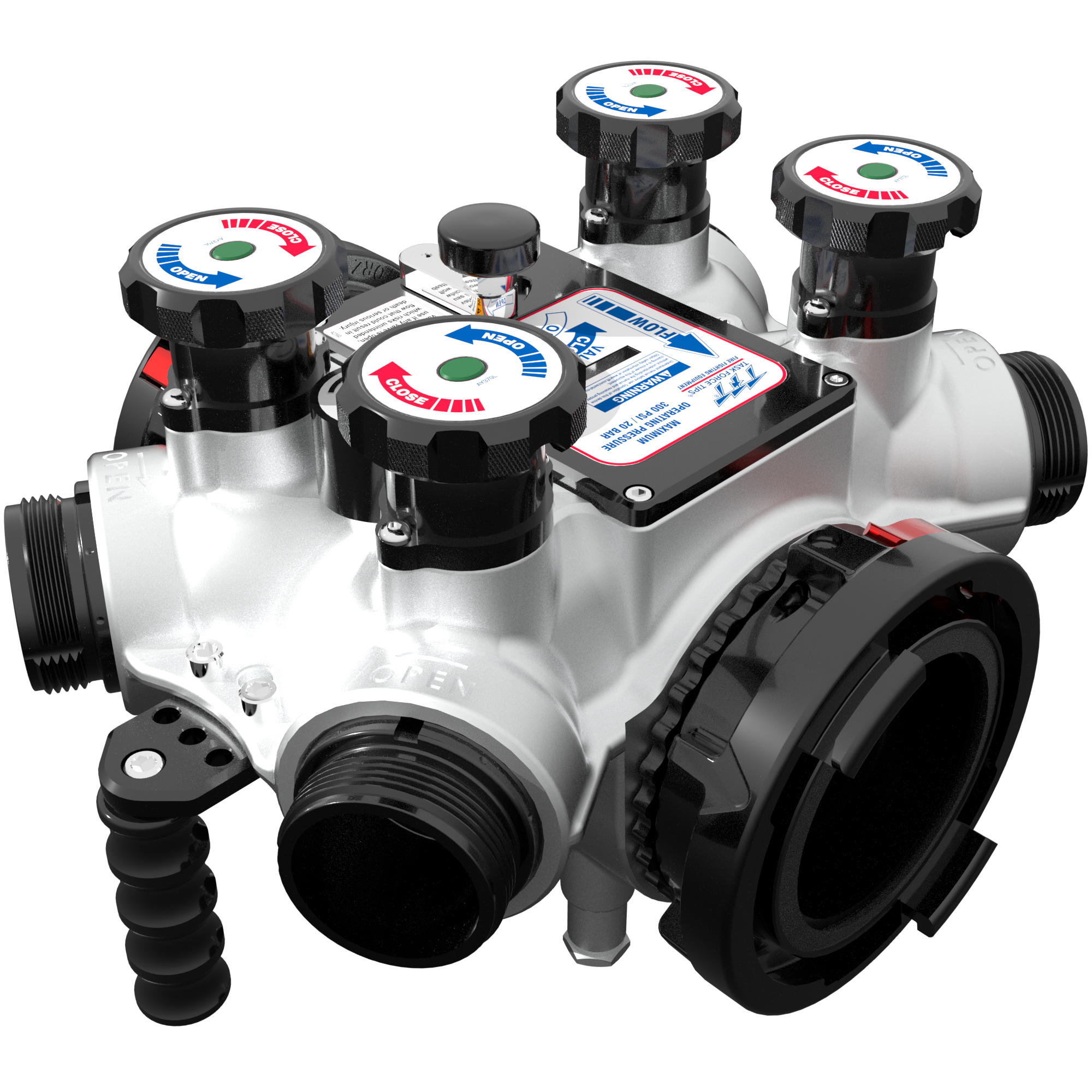

5 WAY MANIFOLD - 5.0"STORZ X 5.0"STORZ
Find a TFT Dealer Near You
location
Manifolds
LDH Water Thief Appliances allow you to break a single water source down into several smaller water sources.
Manifolds
5 WAY MANIFOLD - 5.0"STORZ X 5.0"STORZ
AL92T2T3-SC
W/300PSI PRV SLOW CLOSE VALVES
$4891.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Coupling Size Side A
5" (125 mm)
Coupling Size Side B
5" (125 mm)
Coupling Size Side C1
2.5" (65 mm)
Coupling Swivel Side A
Full Time Swivel
Coupling Swivel Side B
Full Time Swivel
Finish
Stardust Silver
Gear Box Style
Shaft on Top
L D H Inlet
Yes
L D H Outlet
Yes
Material
Lightweight Cast Aluminum Alloy
Operation Energy Source
Water
Pressure Relief Valve
Yes
Valve Actuation Method
Aluminum Lever
Valve Design
Aluminum Slide Valve
Weight
50.6
Quarter Turn Valve Actuation Method
Rotational
Quarter Turn Valve Design
Ball Valve Aluminum
Documents
Instructions For Installation, Safe Operation and Maintenance
3 & 4 Way, In Line, & Water Thief LDF Adapters (pdf)
4-Way Valved Manifold Suppliment (pdf)
5-WAY MANIFOLD Manual (pdf)
LDH Valved Appliances Manual (pdf)
Technical Bulletins & Testing Reports
LEC-017 New Aluminum Storz Lever (pdf)
LEC-033 Product Bulletin 5-Way Manifold New Safety Warnings (pdf)
Technical Specifications and Drawings
AL92T2T3-SC Item Specification (doc)
