Features

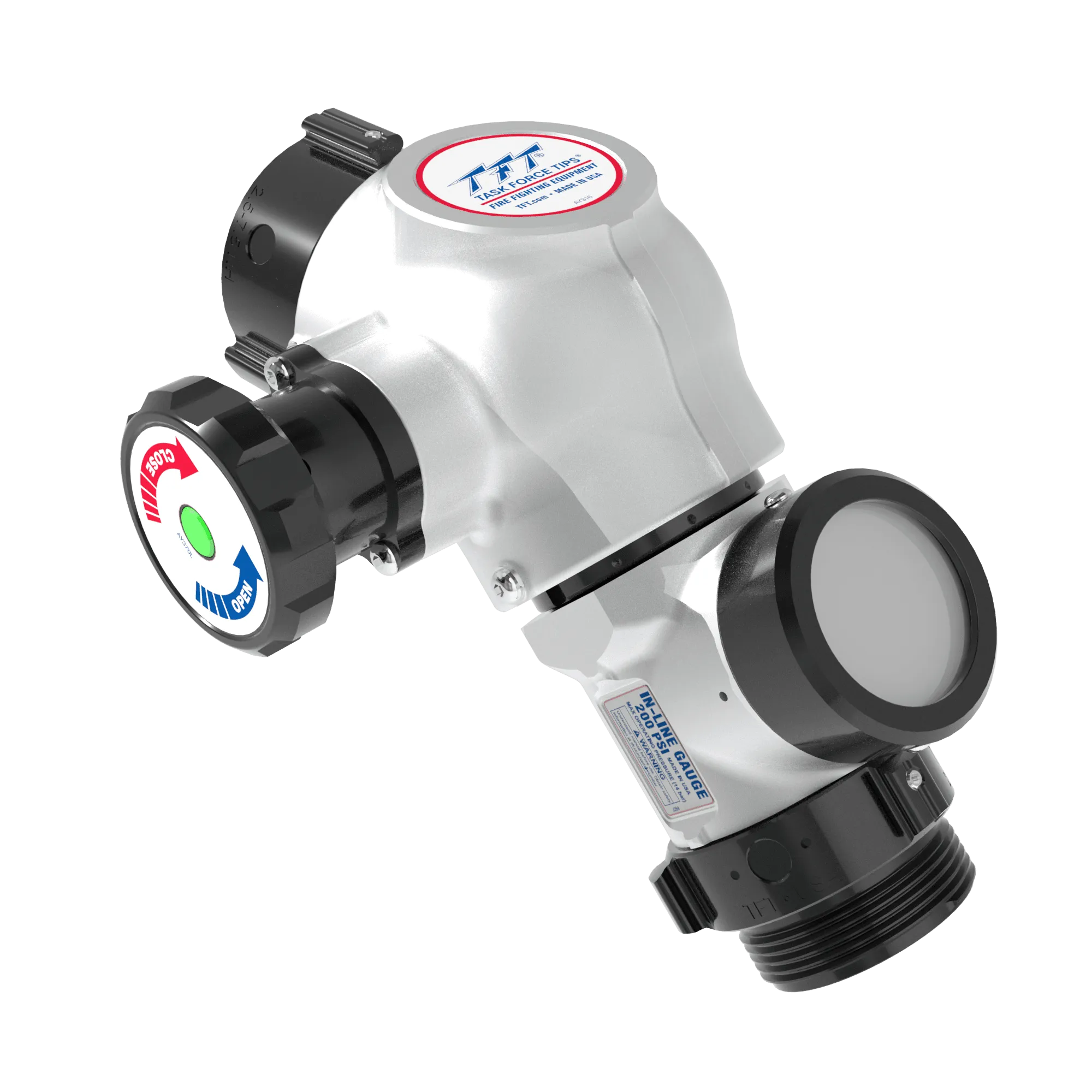

TFT’s 45-degree standpipe waterway with a left-handle slow close valve, has a full 2.5” (64 mm) waterway for maximum flow with minimal friction loss. The valve handle is on the left side of the waterway and includes a position indicator, which identifies open and close positions. The slow close valve prevents water hammer and allows fine-tuning of the water supply exiting the standpipe. The waterway includes an air bleeder and a protected inline pressure gauge that reads 0 – 200 psi (0-14 bar). The inlet valve body of the waterway swivels 360 degrees before tightening and the body of the inline pressure gauge always swivels 360 degrees for easy connection. The 45-degree angle allows for adaptable installation and it positions the attack hose to prevent kinks.


Specifications

Coupling Size Side A 2.5" (65mm)
Coupling Size Side B 2.5" (65mm)
Coupling Swivel Side A Full-Time Swivel
Coupling Swivel Side B Rigid
Finish Stardust Silver
L D H Inlet No
L D H Outlet No
Material Aluminum
Operation Energy Source Manual
Pressure Relief Valve No
Remote Control No
Size 2.5" (65mm)
Valve Design Ball Valve Aluminum
Weight 9.15
Connection Type Side A NH Female
Connection Type Side B NH Male
Coupling Style Side B Male Threads
Coupling Style Side A Rocker
