Hydrant Valves
High Rise Kit Series
HI RISE VALVE 45 DEG RIGHT W/ GAUGE
Find a TFT Dealer Near You
location
High Rise Kit Series
A firefighter high rise kit contains the tools you need to connect to and use a standpipe.
High Rise Kit Series

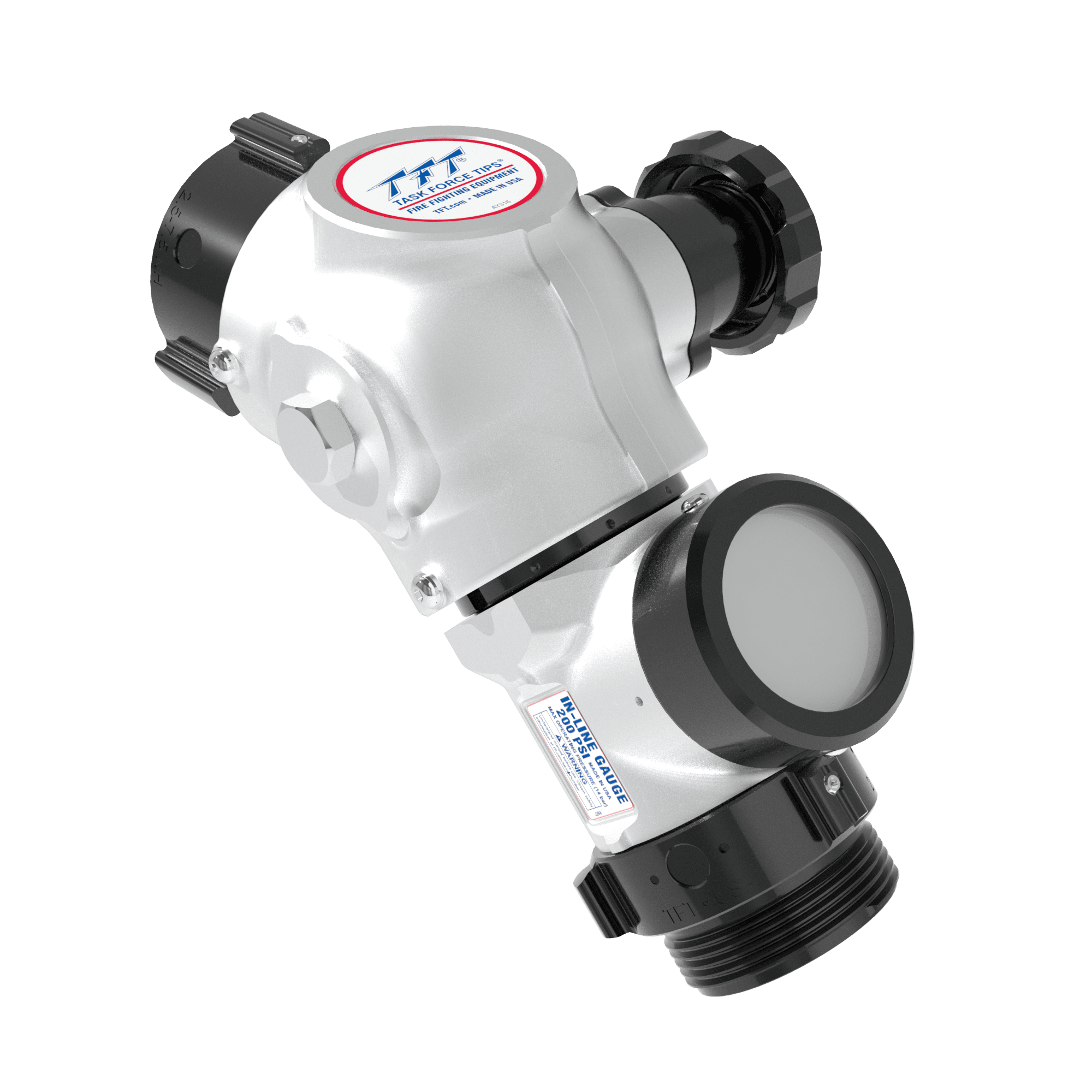

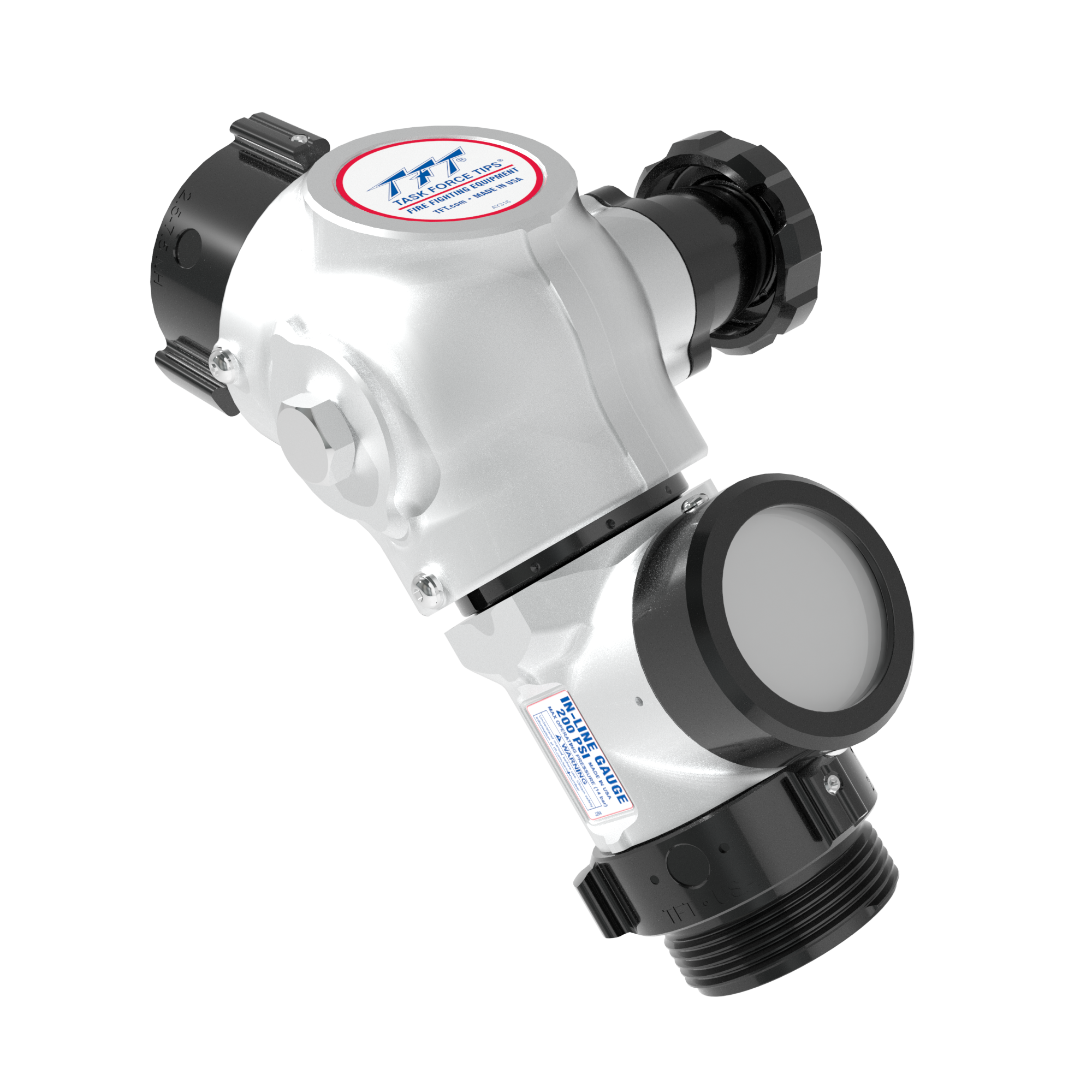

HI RISE VALVE 45 DEG RIGHT W/ GAUGE
AVGSC2RNJNJM
SLOW CLOSE 0-200 PSI/KPA FIXED OUTLET
$1867.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Coupling Size Side A
2.5" (65 mm)
Coupling Size Side B
2.5" (65 mm)
Coupling Swivel Side A
Non-Full Time Swivel
Coupling Swivel Side B
Rigid
Finish
Stardust Silver
L D H Inlet
No
L D H Outlet
No
Material
Aluminum
Operation Energy Source
Manual
Pressure Relief Valve
No
Remote Control
No
Size
2.5" (65 mm)
Valve Design
Ball Valve
Weight
9.4
Connection Type Side A
NH Female
Connection Type Side B
NH Male
Coupling Style Side B
Male Threads
Coupling Style Side A
Rocker
Documents
Online Videos
High-Rise Kit Series Video (mp4)
Technical Specifications and Drawings
AVG2ENJNJ Finished Good Print - STEP (zip)
AVG2ENJNJM Finished Good Print - STEP (zip)
AVGSC2LNJNJ Finished Good Print - STEP (zip)
AVGSC2LNJNJM Finished Good Print - STEP (zip)
AVGSC2RNJNJ Finished Good Print - STEP (zip)
AVGSC2RNJNJM Finished Good Print - STEP (zip)
AVGSC2RNJNJM Item Specification (doc)
Product Brochures
High-Rise Kit Series Brochure (pdf)
Instructions For Installation, Safe Operation and Maintenance
HI-RISE Valve Series: Operation and Maintenance (pdf)
