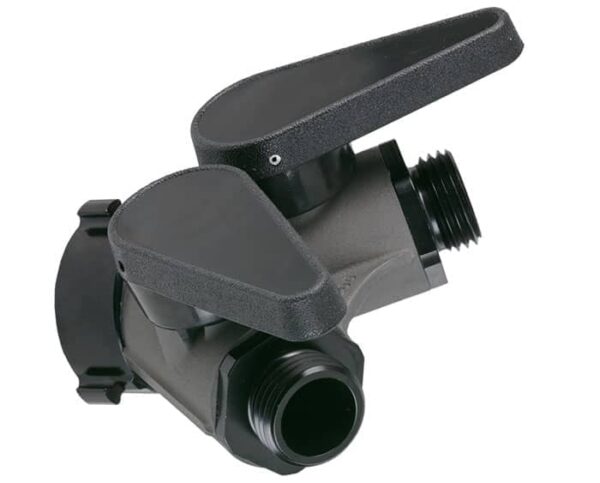

FORESTRY GATED WYE has a cast aluminum body with 1” (25mm) ball type valves and optional long or short nylon valve handles. Hard coat anodized finish. Inlet and outlet threads are available in various combinations of 1” & 1.5” NH and NPSH. Pressure tested to 1000 psi (70 bar) and is 5” (12.7cm) long by 5.5” (14cm) wide, excluding handles. See charts below for model numbers. NPSH threads available at no extra cost. Please specify NPSH in description.


Coupling Size Side A 1" (25 mm)
Coupling Size Side B 1" (25 mm)
Coupling Swivel Side A Non-Full Time Swivel
Coupling Swivel Side B Rigid
L D H Inlet No
L D H Outlet No
Type Wyes
Valve Design Ball Valve Nylon
Weight 2.1
