ULTIMATIC 125 Series
ULTIMATIC W/GRIP 1.0"BSPF
Find a TFT Dealer Near You
location

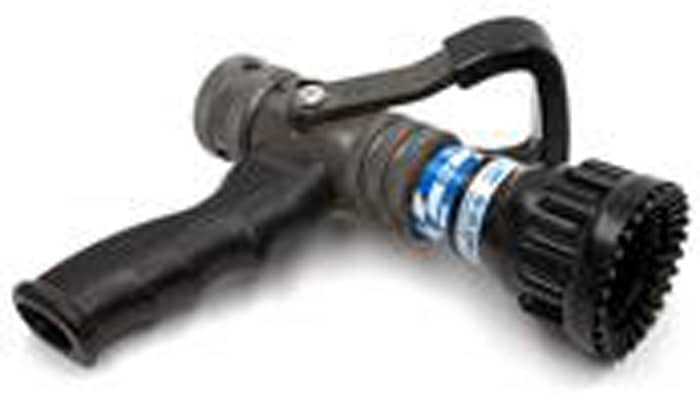

ULTIMATIC 125 Series
Ultimatic is an automatic firefighting nozzle with flow ranges from 10 – 125 GPM (40 – 500 LPM).
ULTIMATIC 125 Series
ULTIMATIC W/GRIP 1.0"BSPF
B-BGH-BD
10-125 GPM @ 100 PSI
$1239.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Pistol Grip
Yes
Valve Design
Stainless Slide Valve
Flow Rate
10-125gpm (40-500 l/min)
Inlet Coupling Style
Knurled
Body Size
1" (25 mm)
Inlet Coupling Swivel
Full-Time Swivel
Style
One Piece with Valve
Pressure Mode
Single
Type
Automatic
Fog Teeth
Fixed
Operating Pressure
100psi (7bar)
Remote Control
No
Weight
3.4
Bumper Material
Rubber - bonded
Documents
Service Procedures
Ultimatic 125 Nozzle Service Poster (pdf)
Instructions For Installation, Safe Operation and Maintenance
Handheld Automatic Pressure Control Nozzle Manuals (pdf)
Ultimatic ER Monitor Nozzles (pdf)
Z French MANUEL : LANCES PORTABLES AVEC CONTRÔLE AUTOMATIQUE DE PRESSION
Certifications & Approvals
ULTIMATIC FO4 (BP20-131) 3rd PARTY CERTIFICATION ENGLISH TRANSLATION EN15182-2 TYPE 4.1 PN16 (pdf)
ULTIMATIC FO4 (BP20-131) 3rd PARTY CERTIFICATION GERMAN LANGUAGE EN15182-2 TYPE 4.1 PN16 (pdf)
