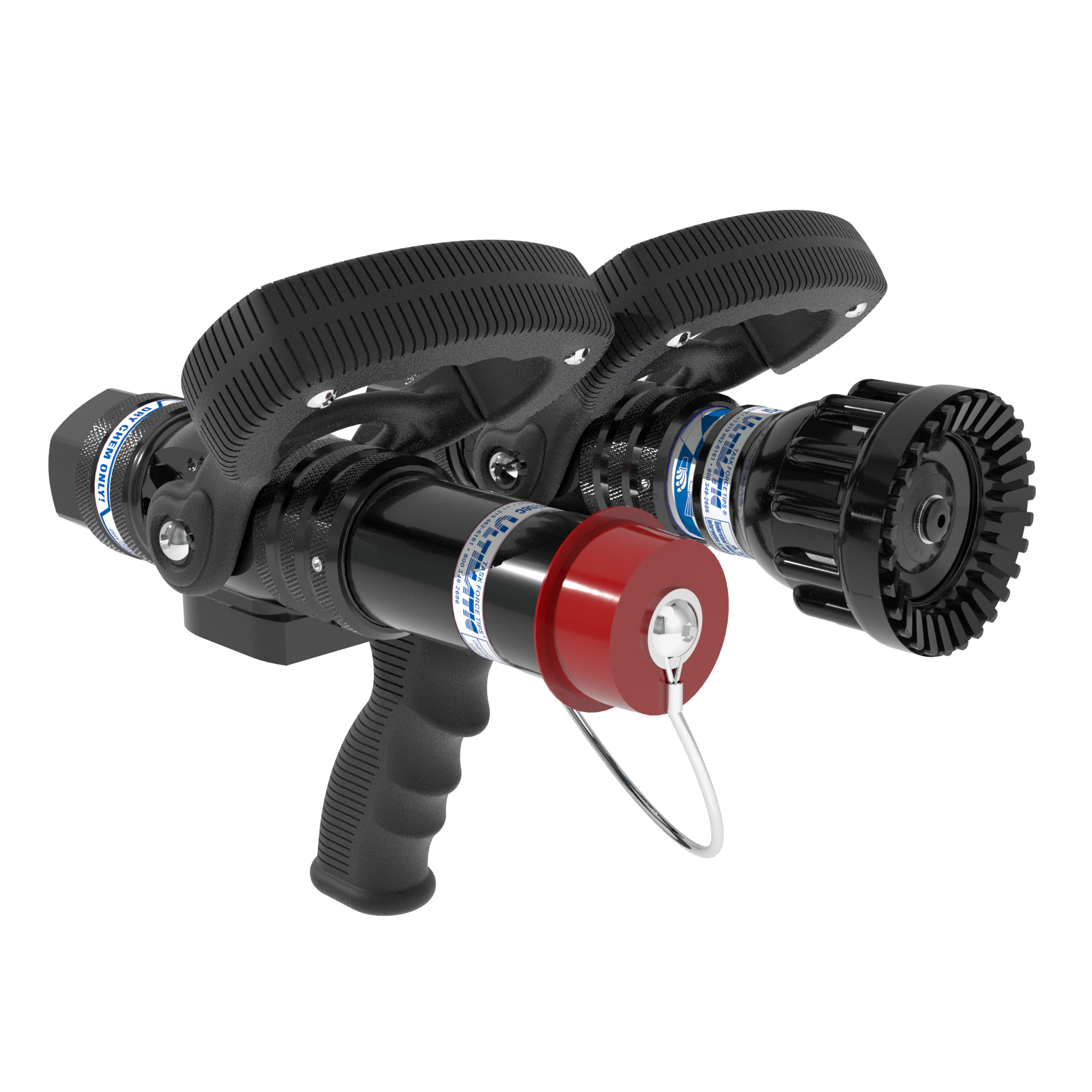

The nozzle for use with water or AFFF is identical to the B-BH (page 31) TFT ULTIMATIC nozzle with the exception of the pipe thread inlet. It has fully automatic pressure control regulated to approximately 100 psi (7 bar) throughout the flow range of 10-125 gpm (40-500 l/min). Accepts the FJ-U FoamJet attachment. Mounted with BTFT-DC5 on single pistol grip.


Pistol Grip Yes
Valve Design Stainless Slide Valve
Flow Rate 10-125 gpm (40-500 l/min)
Inlet Coupling Style Knurled
Body Size 1" (25 mm)
Inlet Coupling Swivel Full Time Swivel
Style One Piece with Valve
Pressure Mode Single
Type Specialty
Fog Teeth Fixed
Operating Pressure 100 psi (7 bar)
Remote Control No
Weight 3
Bumper Material Rubber - bonded
Inlet Connection Type NPT Female
Dry Chem Application Rate 5 lbs/sec
