Features

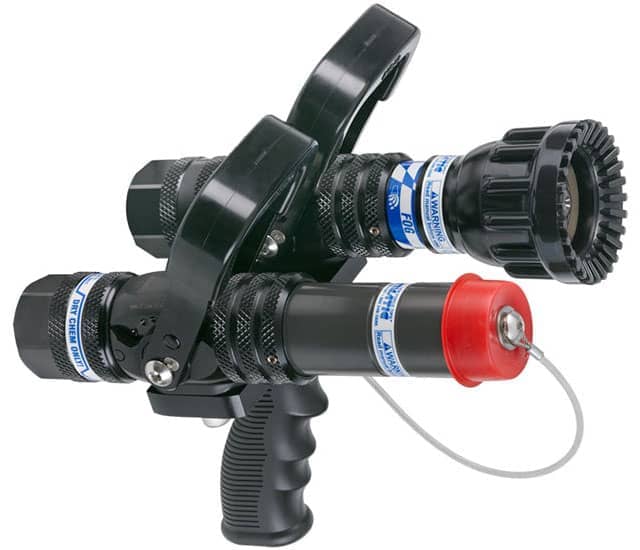

Same as above but with 1.0" NH (25mm) swivel inlets.

Specifications

Pistol Grip Yes
Valve Design Stainless Slide Valve
Flow Rate 10-125 gpm (40-500 l/min)
Inlet Coupling Style Knurled
Body Size 1" (25 mm)
Inlet Coupling Swivel Full Time Swivel
Style One Piece with Valve
Pressure Mode Single
Type Specialty
Fog Teeth Fixed
Operating Pressure 100 psi (7 bar)
Remote Control No
Weight 3
Bumper Material Rubber - bonded
Inlet Connection Type NH Female
Dry Chem Application Rate 5 lbs/sec

Documents

Technical Specifications and Drawings
