ULTIMATIC 125 Series
ULTIMATIC FO5 W/RED GRIP 1.0"F
Find a TFT Dealer Near You
location

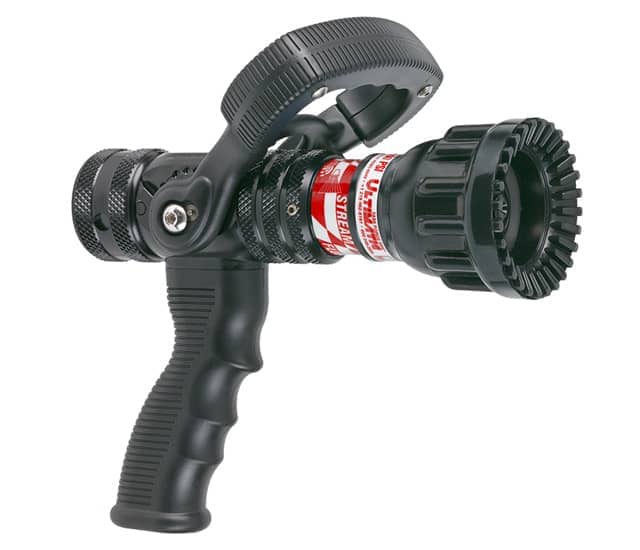

ULTIMATIC 125 Series
Ultimatic is an automatic firefighting nozzle with flow ranges from 10 – 125 GPM (40 – 500 LPM).
ULTIMATIC 125 Series
ULTIMATIC FO5 W/RED GRIP 1.0"F
BL-BGH-FO
40-400 L/MIN @ 500 KPA (5 BAR) FLASHOVER
$1239.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Pistol Grip
Yes
Valve Design
Stainless Slide Valve
Flow Rate
40-400 l/min
Inlet Coupling Style
Knurled
Body Size
1" (25 mm)
Inlet Coupling Swivel
Full Time Swivel
Style
One Piece with Valve
Pressure Mode
Single
Type
Automatic
Fog Teeth
Fixed
Operating Pressure
75psi (5bar)
Remote Control
No
Weight
3
Bumper Material
Rubber - bonded
Documents
Service Procedures
Ultimatic 125 Nozzle Service Poster (pdf)
Instructions For Installation, Safe Operation and Maintenance
Handheld Automatic Pressure Control Nozzle Manuals (pdf)
Ultimatic ER Monitor Nozzles (pdf)
Z French MANUEL : LANCES PORTABLES AVEC CONTRÔLE AUTOMATIQUE DE PRESSION
Technical Specifications and Drawings
BL-BGH-FO Item Specification (doc)
Certifications & Approvals
ULTIMATIC FO4 (BP20-131) 3rd PARTY CERTIFICATION ENGLISH TRANSLATION EN15182-2 TYPE 4.1 PN16 (pdf)
ULTIMATIC FO4 (BP20-131) 3rd PARTY CERTIFICATION GERMAN LANGUAGE EN15182-2 TYPE 4.1 PN16 (pdf)
