Home
Products
Handheld Nozzles
TWISTER Series
TWISTER TIP 1.0"BSPF
Find a TFT Dealer Near You
location
TWISTER Series
Twister Nozzles are economical and durable fire nozzles available in dual gallonage or single gallonage options.
TWISTER Series

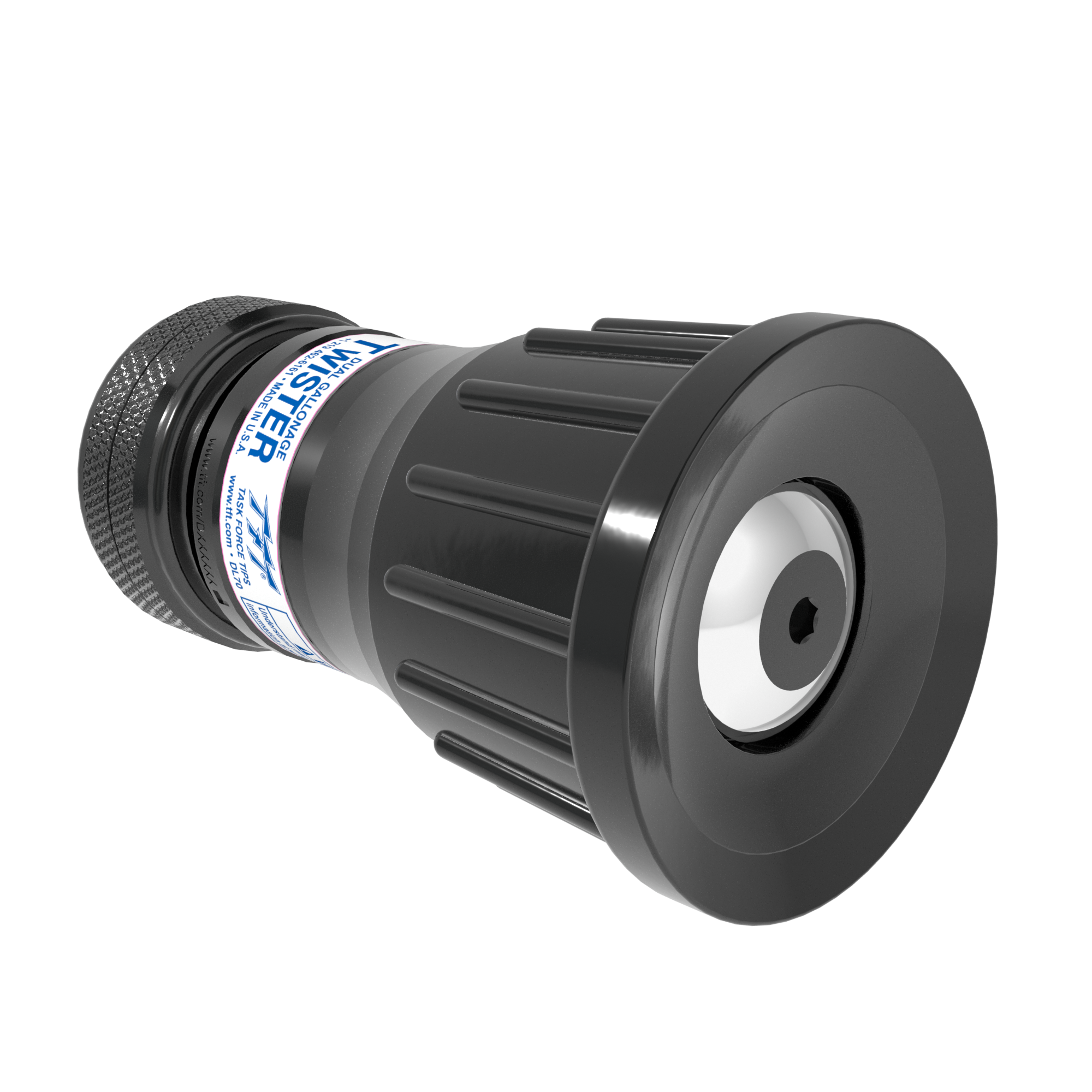

TWISTER TIP 1.0"BSPF
D1024-BD
10&24 GPM DUAL GALLONAGE
$114.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Pistol Grip
No
Valve Design
Twist Style Baffle
Flow Rate
10/24gpm (37/90 l/min)
Break Apart Style
Tip Only
Inlet Coupling Style
Knurled
Body Size
1" (25 mm)
Inlet Coupling Swivel
Rigid
Style
Break-Apart
Pressure Mode
Single
Type
Selectable
Operating Pressure
100psi (7bar)
Remote Control
No
Weight
0.6
Bumper Material
Rubber - press fit
Documents
Service Procedures
1" Twister & BubbleCup Series Service Procedure (pdf)
1.5" Twister & BubbleCup Series Service Procedure (pdf)
Technical Specifications and Drawings
C1024 Item Specification (doc)
PARTS LIST: D SERIES TWISTER AND BUBBLECUP (pdf)
PARTS LIST: F SERIES TWISTER AND BUBBLECUP (pdf)
Instructions For Installation, Safe Operation and Maintenance
Twister Barrel Nozzle Manual (pdf)
Z Spanish MANUAL: Boquillas Twister® and BubbleCup® (pdf)
Product Brochures
Single Flow Twister Product Brochure (pdf)
