QUADRAFOG Series
QUADRAFOG W/GRIP 1.0"BSPF EXTENDED
Find a TFT Dealer Near You
location
QUADRAFOG Series
QUADRAFOG is a selectable gallonage combination nozzle for your 1” (25 mm) or 1.5” (38 mm) hose lines.
QUADRAFOG Series

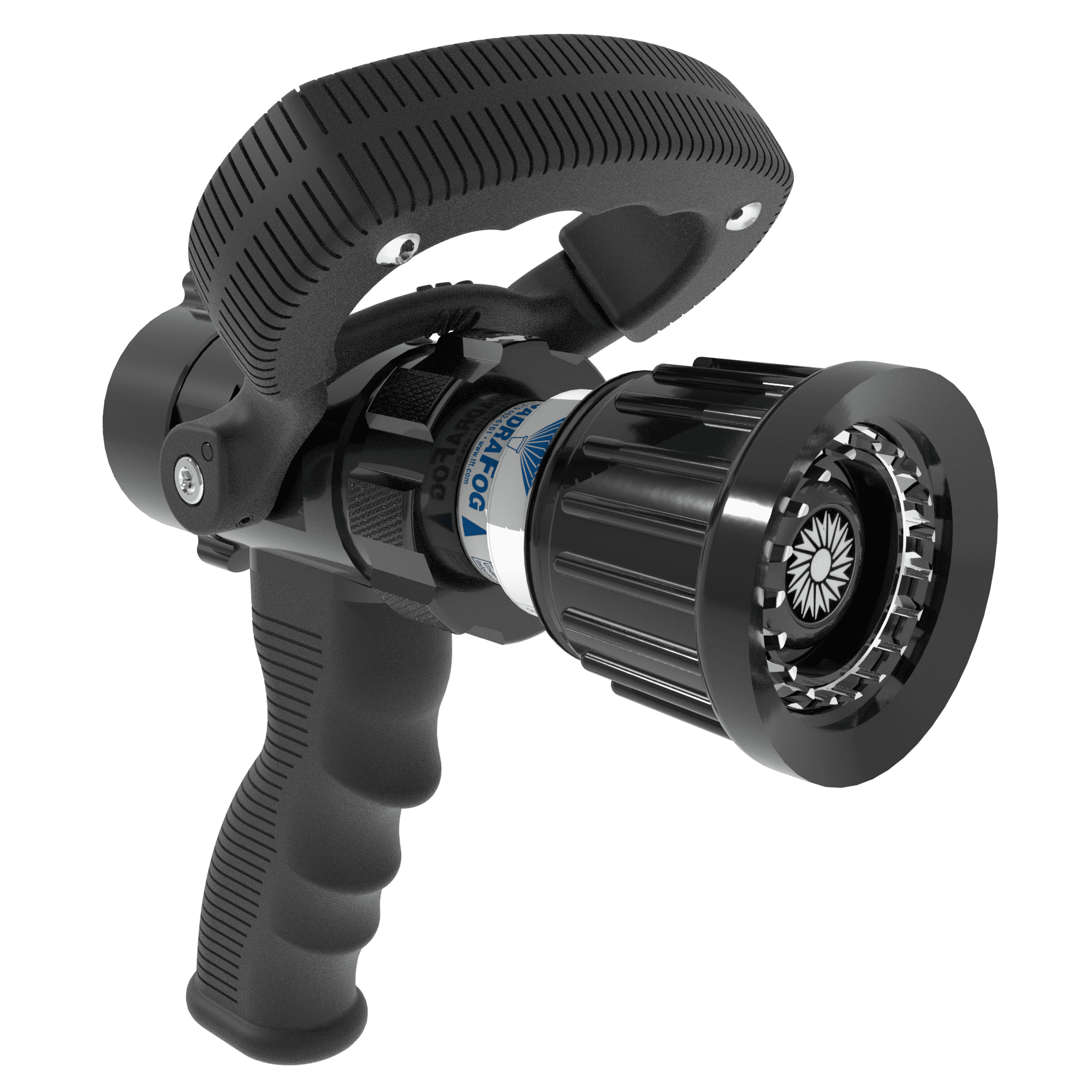

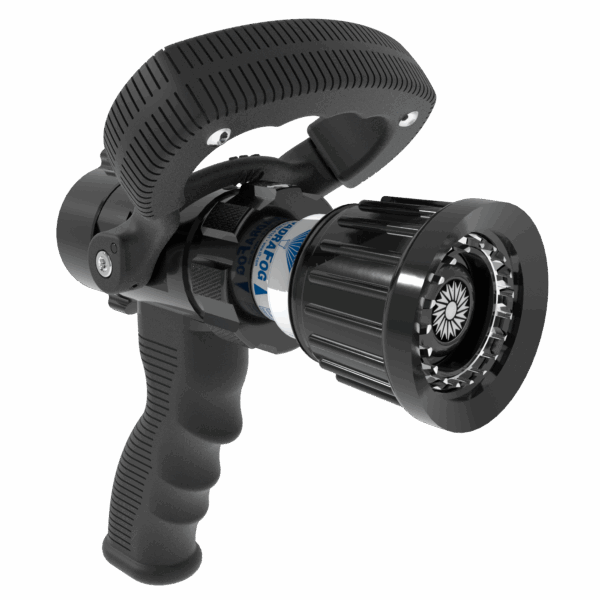

QUADRAFOG W/GRIP 1.0"BSPF EXTENDED
DQS-EKFPS-BD
20-230 L/MIN AT 700 KPA SPINNING TEETH
$1019.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Pistol Grip
Yes
Valve Design
Stainless
Flow Rate
20/40/100/150/230 l/min
Inlet Coupling Style
Knurled
Body Size
1" (25 mm)
Inlet Coupling Swivel
Full Time Swivel
Style
One Piece with Valve
Pressure Mode
Single
Type
Selectable
Fog Teeth
Spinning
Operating Pressure
100 psi (7 bar)
Remote Control
No
Weight
2.75
Bumper Material
Rubber - press fit
Documents
Service Procedures
QuadraFog Service Procedure (pdf)
Instructions For Installation, Safe Operation and Maintenance
QuadraFog & ThunderFog, & QuadraCup Instruction Manual (pdf)
Z French QuadraFog & ThunderFog, & QuadraCup Instruction Manual (pdf)
Z German QuadraFog & ThunderFog, & QuadraCup Instruction Manual (pdf)
Online Videos
QuadraFog Series Video (mp4)
Product Brochures
QUADRAFOG AND THUNDERFOG SELECTABLE GALLONAGE NOZZLES (pdf)
Certifications & Approvals
QUADRAFOG 1000 (QF1000-SL) PN 16 EN15182-2 TYPE3 (pdf)
QUADRAFOG 150 PN40 EN15182-4 (pdf)
Technical Specifications and Drawings
DQS-EKFPS-BD Item Specification (doc)
