Home
Products
Handheld Nozzles
QUADRAFOG Series
QUADRAFOG W/GRIP 1.0"FEMALE
Find a TFT Dealer Near You
location

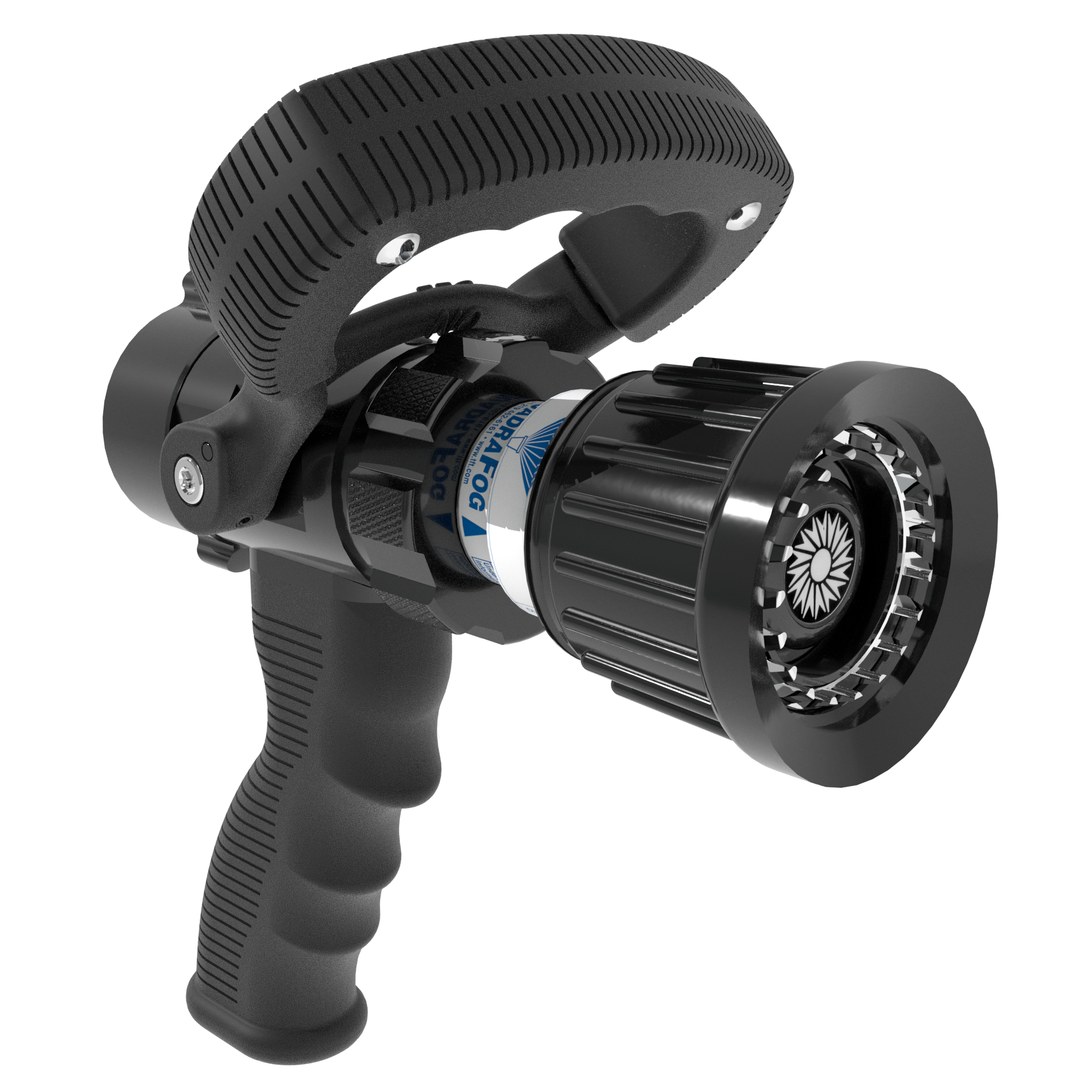

QUADRAFOG Series
QUADRAFOG is a selectable gallonage combination nozzle for your 1” (25 mm) or 1.5” (38 mm) hose lines.
QUADRAFOG Series
QUADRAFOG W/GRIP 1.0"FEMALE
DQS40PS
5-40GPM @ 100PSI SHUTOFF SPINNING TEETH
$970.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Pistol Grip
Yes
Valve Design
Stainless
Flow Rate
5/10/24/40 gpm
Inlet Coupling Style
Rocker
Body Size
1" (25 mm)
Inlet Coupling Swivel
Non-Full Time Swivel
Style
One Piece with Valve
Pressure Mode
Single
Type
Selectable
Fog Teeth
Spinning
Operating Pressure
100 psi (7 bar)
Remote Control
No
Weight
3
Bumper Material
Rubber - press fit
Documents
Service Procedures
QuadraFog Service Procedure (pdf)
Instructions For Installation, Safe Operation and Maintenance
QuadraFog & ThunderFog, & QuadraCup Instruction Manual (pdf)
Z French QuadraFog & ThunderFog, & QuadraCup Instruction Manual (pdf)
Z German QuadraFog & ThunderFog, & QuadraCup Instruction Manual (pdf)
Online Videos
QuadraFog Series Video (mp4)
Product Brochures
QUADRAFOG AND THUNDERFOG SELECTABLE GALLONAGE NOZZLES (pdf)
Certifications & Approvals
QUADRAFOG 1000 (QF1000-SL) PN 16 EN15182-2 TYPE3 (pdf)
QUADRAFOG 150 PN40 EN15182-4 (pdf)
Technical Specifications and Drawings
DQS40PS Item Specification (doc)
