Home
Products
Handheld Nozzles
SMOOTHBORE Series
STRAIGHT TIP 1/2" X 1.0"NH
Find a TFT Dealer Near You
location
SMOOTHBORE Series
A smooth bore nozzle is type of firefighting nozzle with a smooth, tapered waterway that produces a solid, straight stream of water.
SMOOTHBORE Series

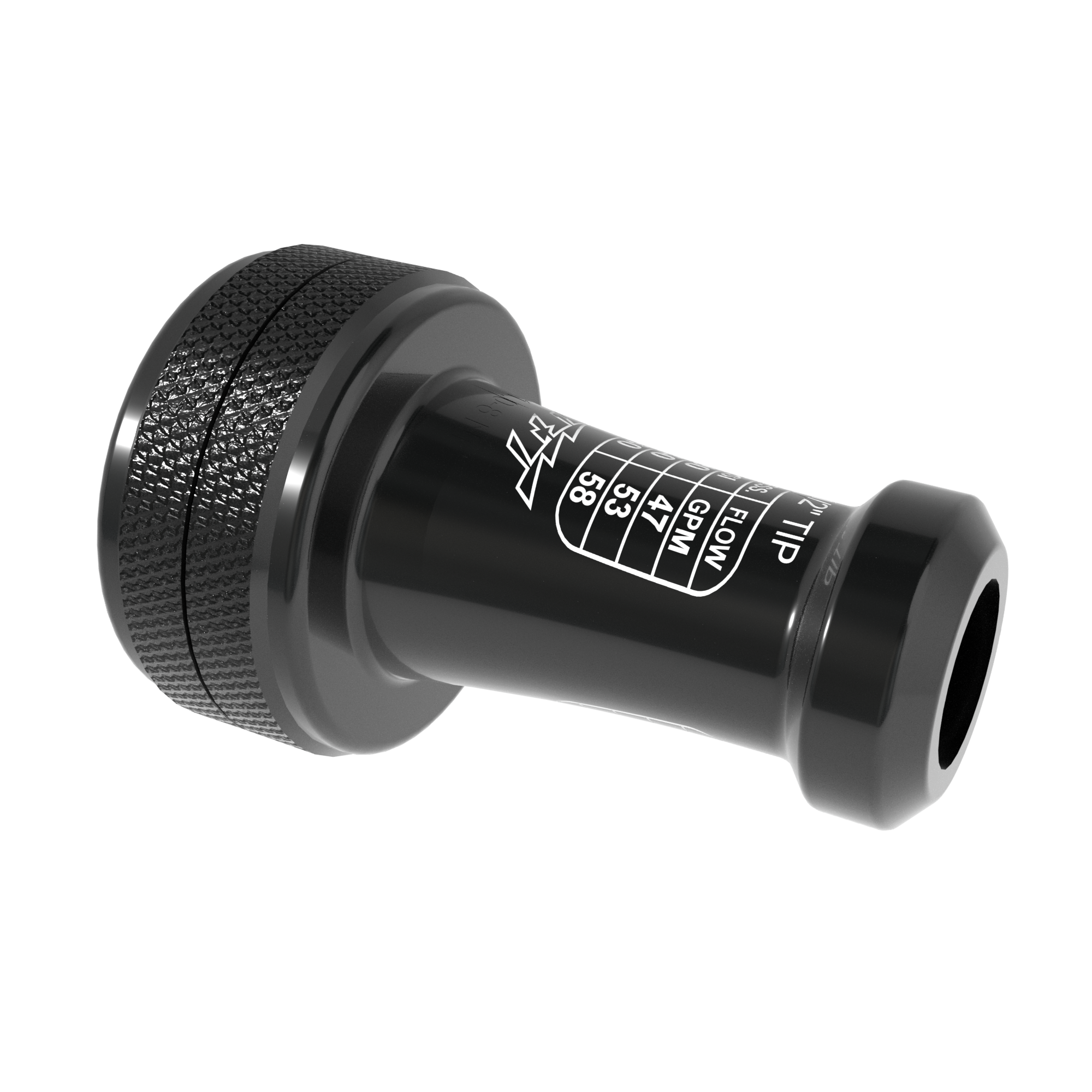

STRAIGHT TIP 1/2" X 1.0"NH
DSS5-ND
NH THREAD
$85.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Pistol Grip
No
Inlet Coupling Style
1.0 inch NH Female
Body Size
1" (25 mm)
Inlet Coupling Swivel
Rigid
Outlet Diameter
1/2" (12 mm)
Type
Smoothbore
Remote Control
No
Weight
0.2
Connection Type
NH Female
Coupling Size
1" (25 mm)
Orifice Size
1/2 inch (13 mm)
Connection Type Side A
NH Female
Coupling Size Side A
1" (25 mm)
Coupling Style Side A
Knurled
Coupling Swivel Side A
Rigid
Documents
Instructions For Installation, Safe Operation and Maintenance
Smooth Bore / VIT Inserts Kit (pdf)
Product Brochures
SMOOTH BORE SERIES FIXED FLOW ATTACK (pdf)
Technical Specifications and Drawings
DSS5-ND Item Specification (doc)
