THUNDERFOG Series

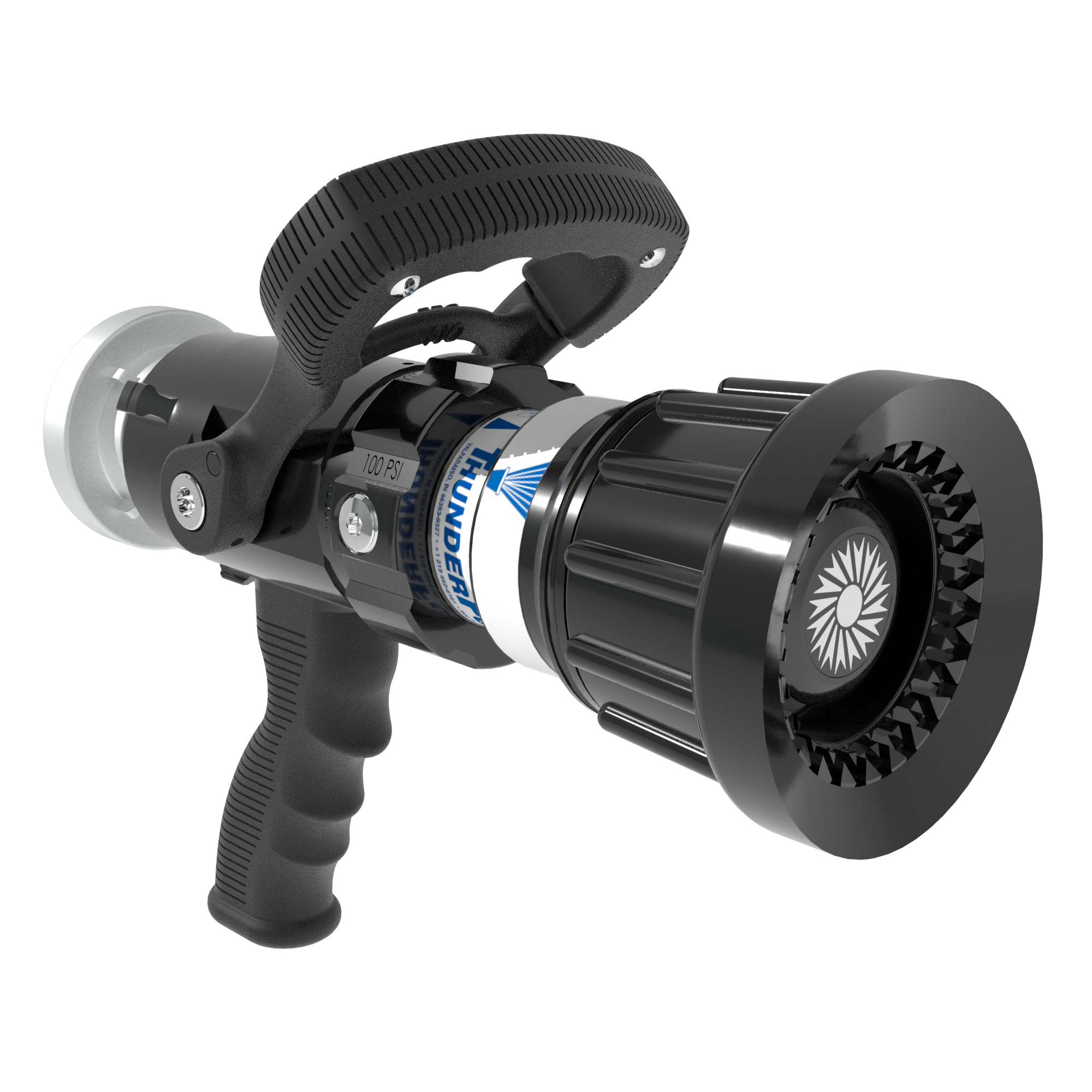

THUNDERFOG W/GRIP 38MM STORZ
Find a TFT Dealer Near You
location
THUNDERFOG Series
THUNDERFOG is a selectable combination handline nozzle capable of flowing as low as 30 GPM (110 LPM) and up to 250 GPM (950 LPM) depending on your chosen model.
THUNDERFOG Series
THUNDERFOG W/GRIP 38MM STORZ
FTS200PF38MM
30-200 GPM @ 100 PSI FIXED TEETH
$1514.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Pistol Grip
Yes
Valve Design
Stainless
Flow Rate
30/60/95/125/150/200gpm
Inlet Coupling Style
38 mm Storz
Body Size
1.5" (38 mm)
Inlet Coupling Swivel
Full Time Swivel
Style
One Piece with Valve
Pressure Mode
Single
Type
Selectable
Fog Teeth
Fixed
Operating Pressure
100 psi (7 bar)
Remote Control
No
Weight
5.95
Bumper Material
Rubber - press fit
Certification
NFPA/FM
Documents
Product Brochures
QUADRAFOG AND THUNDERFOG SELECTABLE GALLONAGE NOZZLES (pdf)
Z Indonesian ThunderFog (pdf)
Instructions For Installation, Safe Operation and Maintenance
QuadraFog & ThunderFog, & QuadraCup Instruction Manual (pdf)
Z German QuadraFog & ThunderFog, & QuadraCup Instruction Manual (pdf)
Online Videos
Thunderfog Series Video (mp4)
Technical Specifications and Drawings
FTS200PF38MM Item Specification (doc)
