Home
Products
Handheld Nozzles
G-FORCE Series
1.0" G-FORCE 1.0"F VALVE W/GRIP
Find a TFT Dealer Near You
location
G-FORCE Series

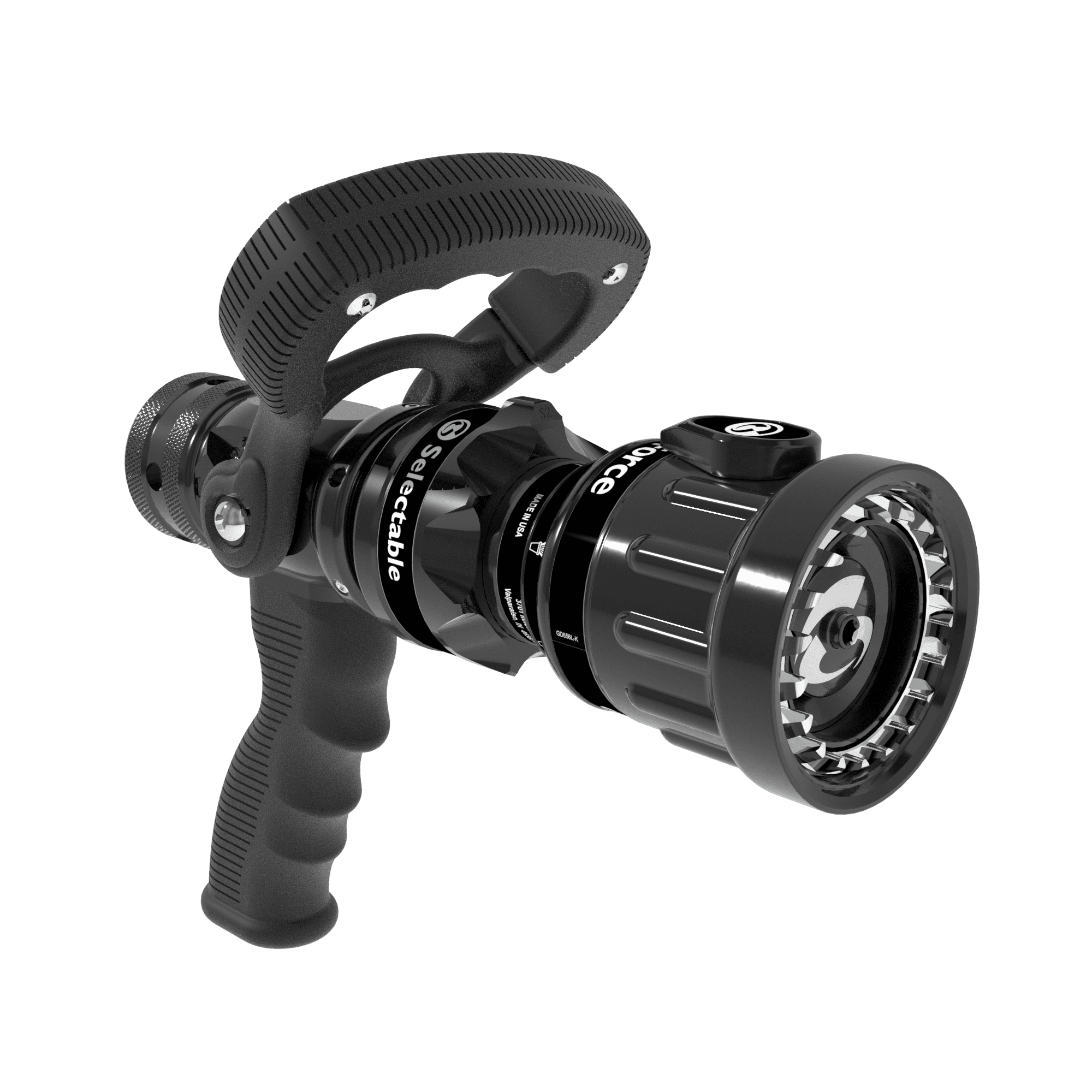

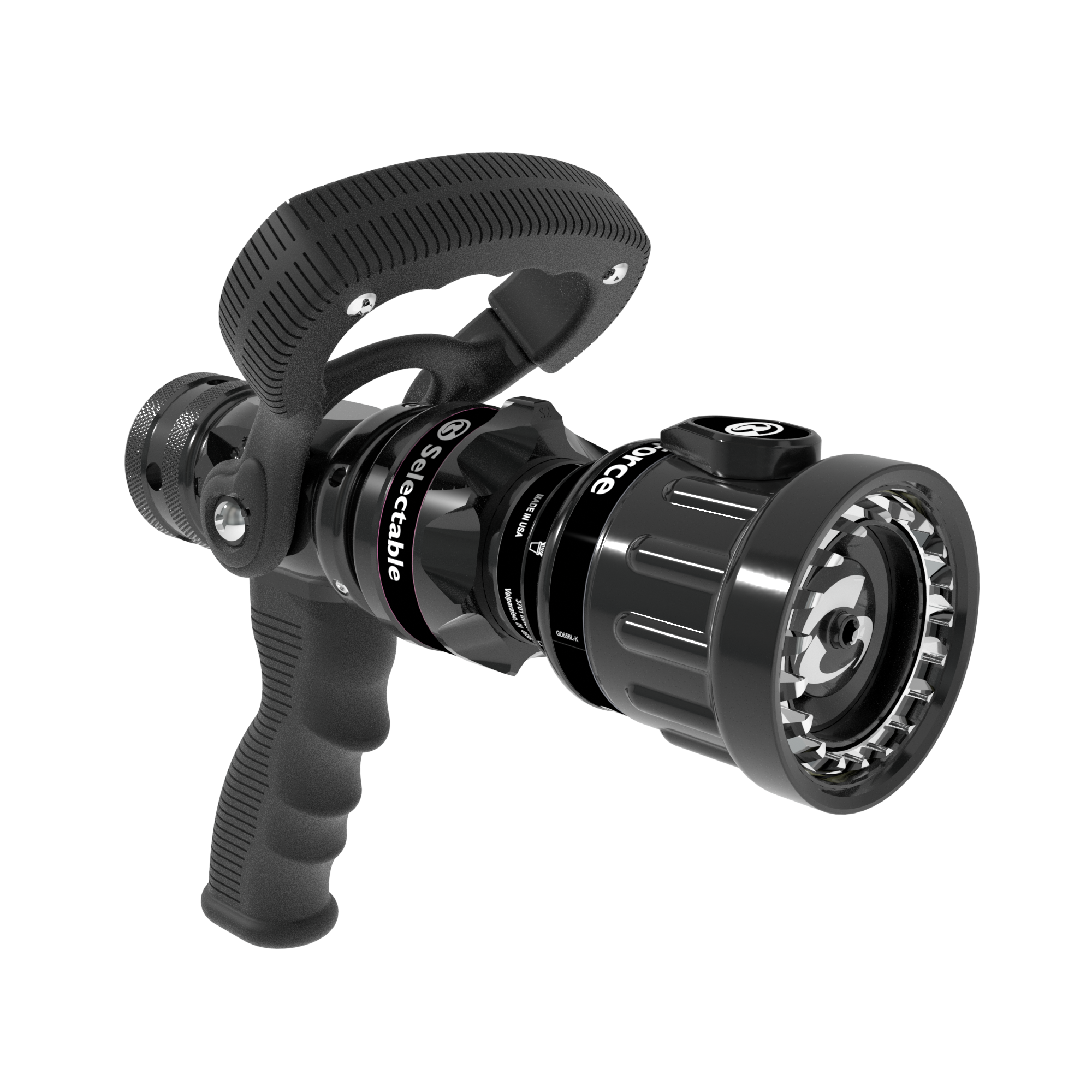

1.0" G-FORCE 1.0"F VALVE W/GRIP
GDD3G1S
SEL 15/30/45/60/75 GPM @ 75 PSI SPINNING TEETH
$722.00 Guaranteed US Price
Find a New Force Dealer
{{topic}}
{{topic}}
Features
Specifications
Pistol Grip
Yes
Flow Rate
15/30/45/60/75 gpm (60/110/170/230/285 l/min)
Inlet Coupling Style
Knurled
Body Size
1" (25 mm)
Inlet Coupling Swivel
Full-Time Swivel
Style
One Piece with Valve
Pressure Mode
Single
Type
Selectable
Fog Teeth
Spinning
Operating Pressure
75psi (5bar)
Remote Control
No
Weight
3.45
Bumper Material
Rubber - bonded
Inlet Connection Type
NH Female
Documents
Service Procedures
G-Force G903-KIT: G-Force Valve Plug Service Procedure (pdf)
How to replace a 1- G-Force Shaper (mp4)
How to replace the Bail Handle on G-Force Nozzle
Impulse™ Trigger Valve System Maintenance and Service Procedure (pdf)
Product Brochures
Z Arabic G-Force (pdf)
Product Catalogs
G-Force Catalog (pdf)
G-Force Spanish Catalog (pdf)
Z French G-Force French Catalog (pdf)
Z German G-Force Gesamtkatalog (pdf)
Instructions For Installation, Safe Operation and Maintenance
G-Force Manual: Fixed & Selectable and Automatic (pdf)
International G-Force Nozzle Fixed, Selectable, Automatic and Automatic with Flow Limiting Manual
Z Italian G-Force Manual: International G-Force Nozzle (pdf)
Z Spanish G-Force Manual: Boquilla Internacional G-Force (pdf)
Certifications & Approvals
G-FORCE (GP**Y**) PN 16 EN15182-2 TYPE3 (pdf)
