Features

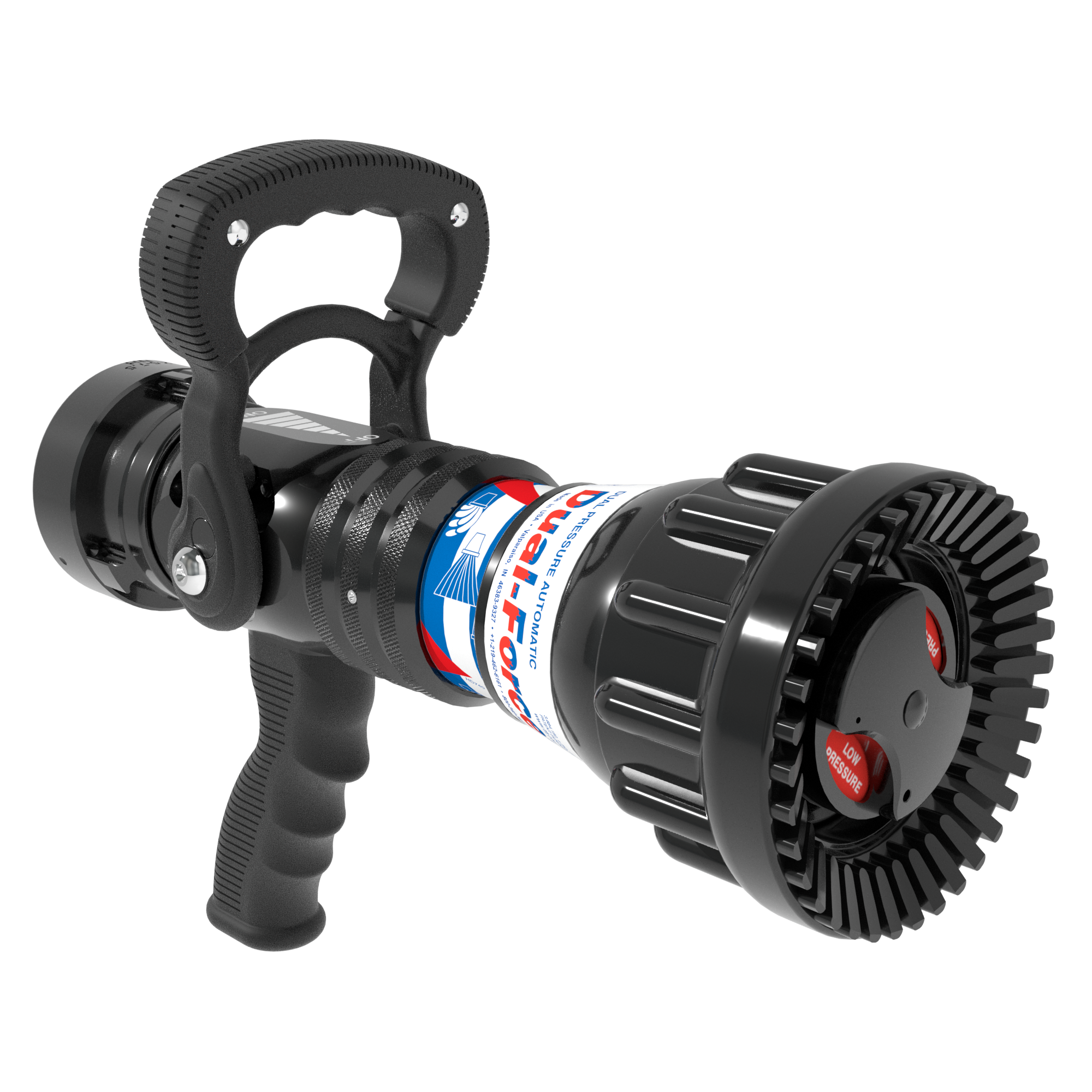

Automatic pressure control with a flow capacity of 95-300 gpm (360-1150 l/min). Includes flush without shutting down, patented slide-type valve for turbulence-free flow control, six detent flow positions, molded rubber teeth for full-fill "power fog", and "Gasket Grabber" inlet screen. Pistol grip is mounted below valve (HD-2VPGI), or behind the valve (HD-2VPG). Lightweight hard coat anodized aluminum materials for maximum resistance to corrosion and wear. 2.5" NH (64mm) rocker lug full-time swivel coupling is standard. Nozzle may be switched between standard 100 psi (7 bar) and low pressure.


Specifications

Pistol Grip Yes
Valve Design Stainless Slide Valve
Flow Rate 95-300gpm (360-1150 l/min)
Inlet Coupling Style Rocker
Body Size 2.5" (65 mm)
Inlet Coupling Swivel Full Time Swivel
Style One Piece with Valve
Pressure Mode Dual
Type Automatic
Fog Teeth Fixed
Operating Pressure 100/55 psi (7/3.8 bar)
Remote Control No
Weight 7
Bumper Material Rubber - bonded

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance

General Articles of Interest
