Features

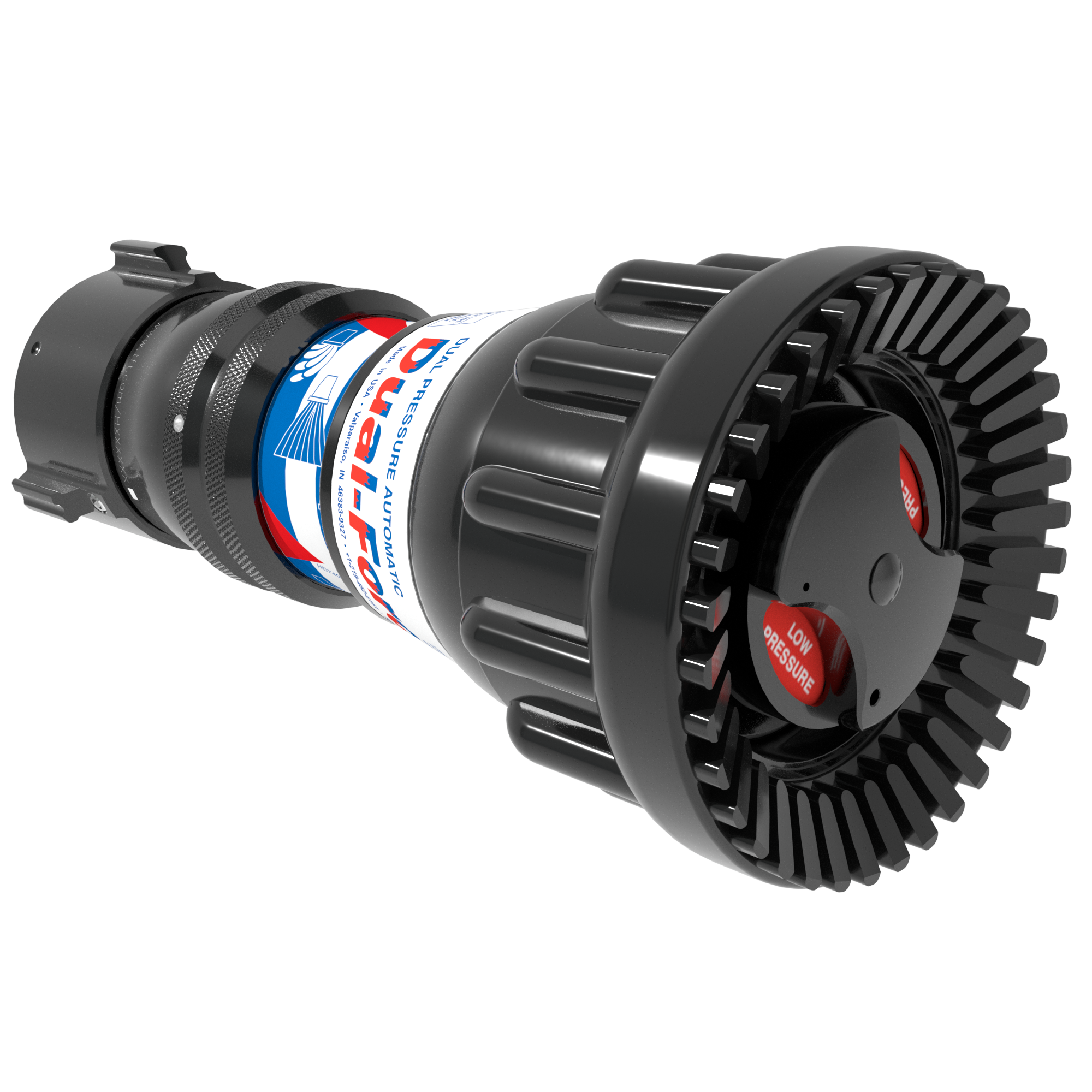

Automatic pressure control with a flow capacity of 95-250gpm (360-950 l/min). Includes flush without shutting down, molded rubber teeth for full-fill "power fog", "Gasket Grabber", and turbulence-free flow control. Lightweight hardcoat anodized aluminum materials for maximum resistance to corrosion and wear. 1.5" NH (38mm) rigid rocker lug coupling is standard. Tip does not shut off and must be used with a separate valve or valved playpipe. Nozzle may be switched between standard 75 psi (5 bar)/45 psi (3 bar) and low pressure.


Specifications

Pistol Grip No
Valve Design No Valve
Flow Rate 95-250gpm (360-950 l/min)
Break Apart Style Tip Only
Inlet Coupling Style Rocker
Body Size 1.5" (38 mm)
Inlet Coupling Swivel Rigid
Style Break-Apart
Pressure Mode Dual
Type Automatic
Fog Teeth Fixed
Operating Pressure 75/45psi (5/3bar)
Remote Control No
Weight 4.6
Bumper Material Rubber - bonded
