Features

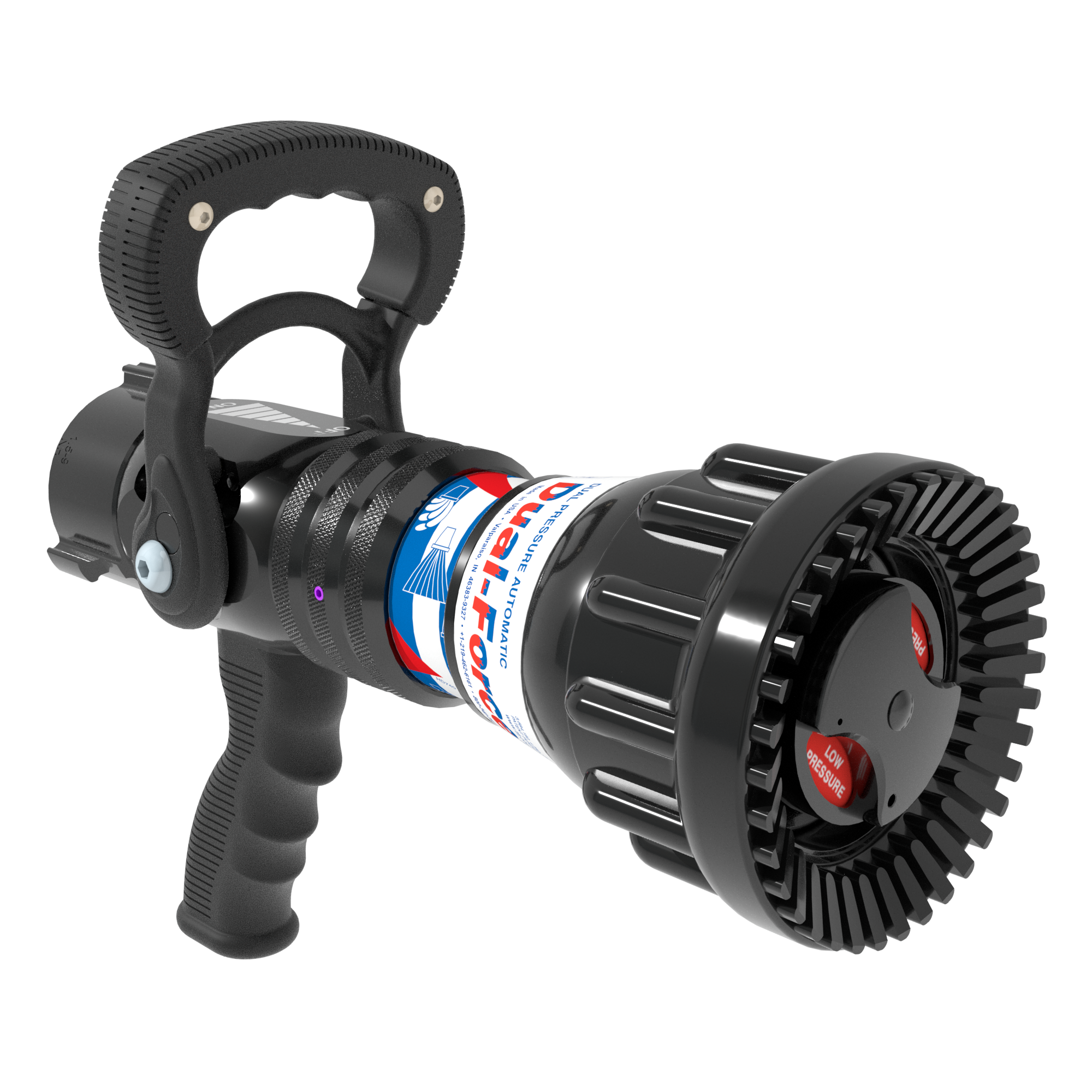

Automatic pressure control with a flow capacity of 95-250 gpm (360-950 l/min). Includes flush without shutting down, patented slide-type valve for turbulence-free operator flow control, six detent flow positions, molded rubber teeth for full-fill "power fog", and "Gasket Grabber" inlet screen. Pistol grip is mounted below the valve (HDL-VPGI), or behind the valve (HDL-VPG). Lightweight hardcoat anodized materials for maximum resistance to corrosion and wear. 1.5" NH (38mm) rocker lug full-time swivel coupling is standard. Nozzle may be switched between standard 75 psi (5 bar)/45psi (3 bar) and low pressure.


Specifications

Pistol Grip Yes
Valve Design Stainless Slide Valve
Flow Rate 95-250gpm (360-950 l/min)
Inlet Coupling Style Rocker
Body Size 1.5" (38 mm)
Inlet Coupling Swivel Full Time Swivel
Style One Piece with Valve
Pressure Mode Dual
Type Automatic
Fog Teeth Fixed
Operating Pressure 75/45psi (5/3bar)
Remote Control No
Weight 6.8
Bumper Material Rubber - bonded
