Handheld Nozzles
MID-MATIC Series
MID-MATIC W/GRIP 1.5"BSPF
Find a TFT Dealer Near You
location

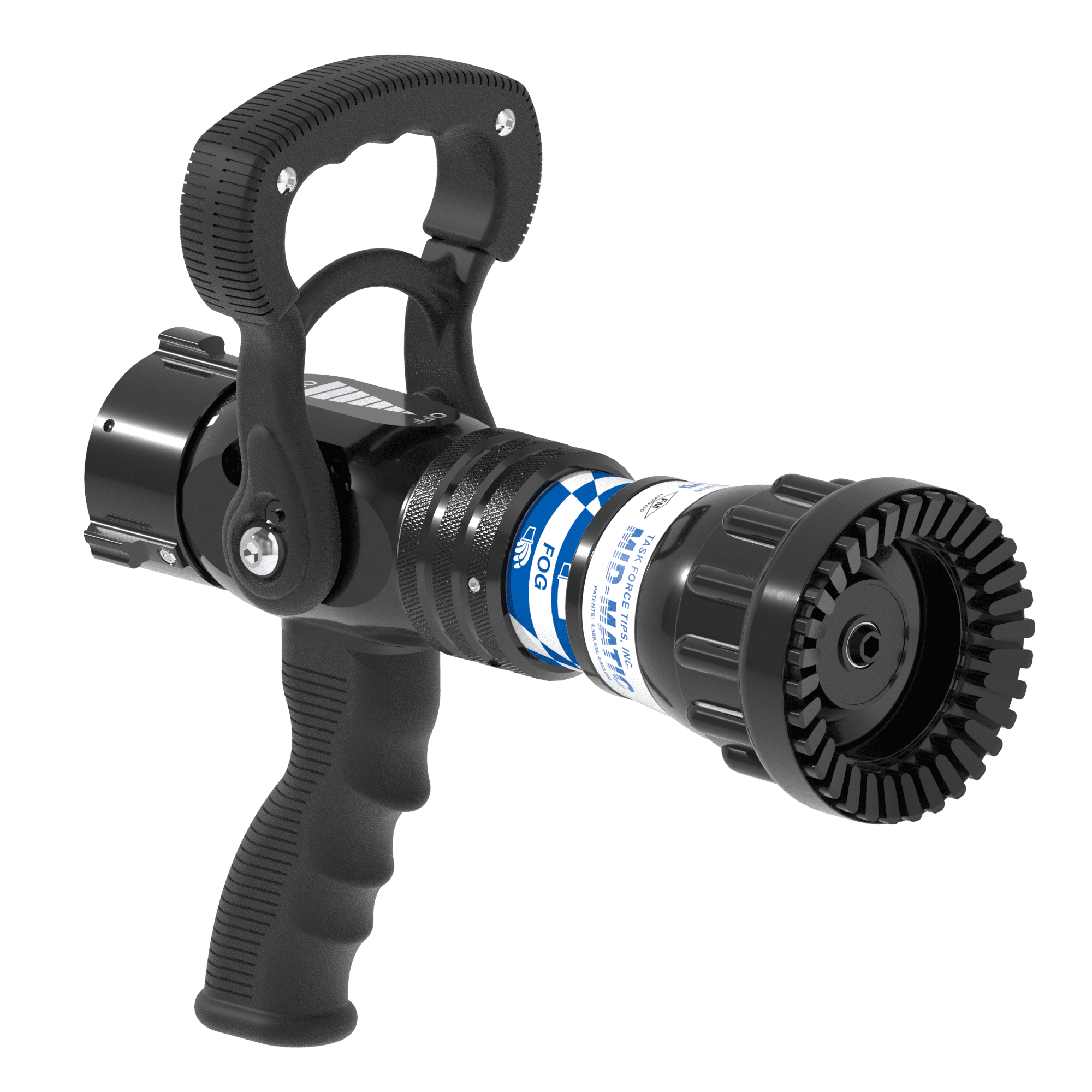

MID-MATIC Series
The MID-MATIC nozzle is an automatic nozzle with a flow range of 70-200 GPM (260-760 LPM).
MID-MATIC Series
MID-MATIC W/GRIP 1.5"BSPF
HM-VPGI-BSP
70-200 GPM @ 100 PSI
$1655.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Pistol Grip
Yes
Valve Design
Stainless Slide Valve
Flow Rate
70-200gpm
Inlet Coupling Style
Knurled
Body Size
1.5" (38mm)
Inlet Coupling Swivel
Full-Time Swivel
Style
One Piece with Valve
Pressure Mode
Single
Type
Automatic
Fog Teeth
Fixed
Operating Pressure
100psi (7bar)
Remote Control
No
Weight
3.2
Bumper Material
Rubber - bonded
Certification
NFPA/FM
Documents
Instructions For Installation, Safe Operation and Maintenance
Handheld Automatic Pressure Control Nozzle Manuals (pdf)
Z French MANUEL : LANCES PORTABLES AVEC CONTRÔLE AUTOMATIQUE DE PRESSION
Z Portuguese ESGUICHOS MANUAIS COM CONTROLE AUTOMÁTICO DE PRESS (pdf)
Service Procedures
Mid-Matic, Mid-Force, Metro 1 Service Procedure (pdf)
Product Brochures
MID-MATIC SERIES (pdf)
Online Videos
MID-MATIC SERIES (mp4)
General Articles of Interest
9 Common Questions, If You’re Considering an Automatic Firefighting Nozzle (doc)
