MID-FORCE Series
Mid-Force nozzles are dual pressure automatic nozzles for your handline or monitor operations. They offer a flow range of 70 – 200 GPM (260 – 760 LPM).
MID-FORCE Series

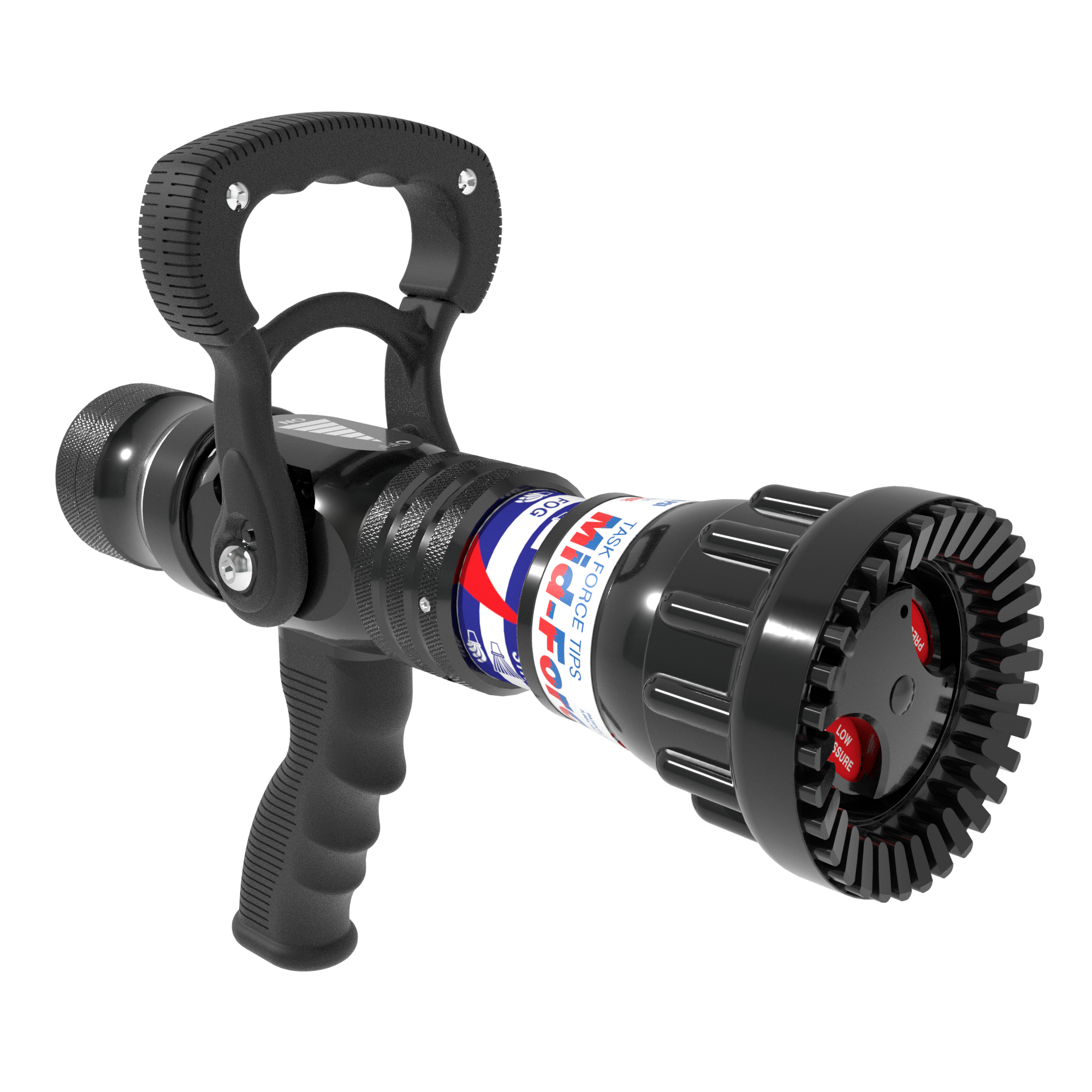

MID-FORCE W/GRIP 1.5"BSPF EXTENDED
HMD-VPGI-BF
70-200 GPM DUAL PRESSURE EXTENDED COUPLING
$1844.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Pistol Grip
Yes
Valve Design
Stainless Slide Valve
Flow Rate
70-200gpm
Inlet Coupling Style
Knurled
Body Size
1.5" (38mm)
Inlet Coupling Swivel
Full-Time Swivel
Style
One Piece with Valve
Pressure Mode
Dual
Type
Automatic
Fog Teeth
Fixed
Operating Pressure
100/55 psi (7/3.8 bar)
Remote Control
No
Weight
5.2
Bumper Material
Rubber - bonded
Certification
NPFA
Documents
Online Videos
Mid-Force Series (mp4)
Service Procedures
Mid-Matic, Mid-Force, Metro 1 Service Procedure (pdf)
Instructions For Installation, Safe Operation and Maintenance
Mid-Force, CAFS-Force and Dual-Force Users Manual (pdf)
General Articles of Interest
9 Common Questions, If You’re Considering an Automatic Firefighting Nozzle (doc)
