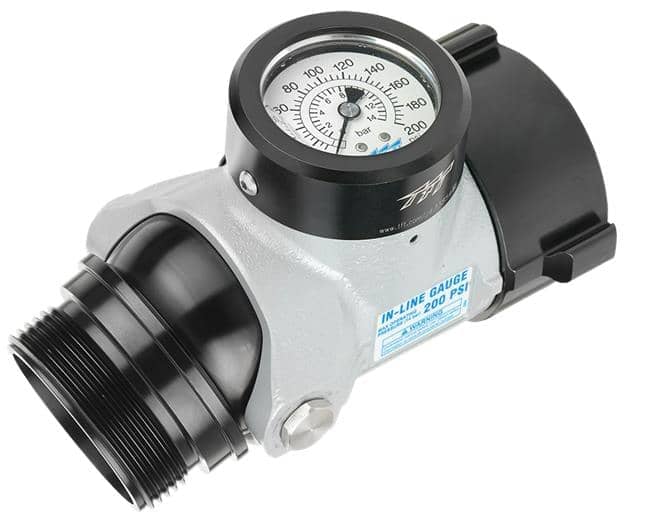

Liquid-filled 0-200 psi (0-14 bar) gauge designed for use on standpipes, truck outlets, on the ground, or where having a pressure reading is advantageous. System includes a protective ring and lens cover for the pressure gauge. Swivel inlet coupling and +/- 20° pivoting outlet. 2.5" NH (65mm) thread is standard.


Type Nozzle Repair Kits
Inlet 2.5" (65 mm)
Inlet Coupling Style Rocker
Inlet Coupling Swivel Full-Time Swivel
Inlet Connection Type NH Female
Outlet 2.5" (65 mm)
Outlet Coupling Style Male Threads
Outlet Coupling Swivel Swivel
Outlet Connection Type NH Male
Maximum Operating Pressure 300 psi (21 bar)
Weight 2
Type Line Pressure Gauge
