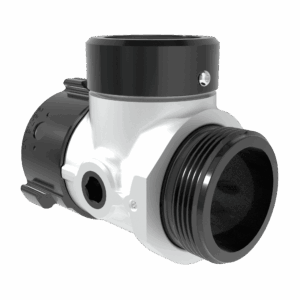

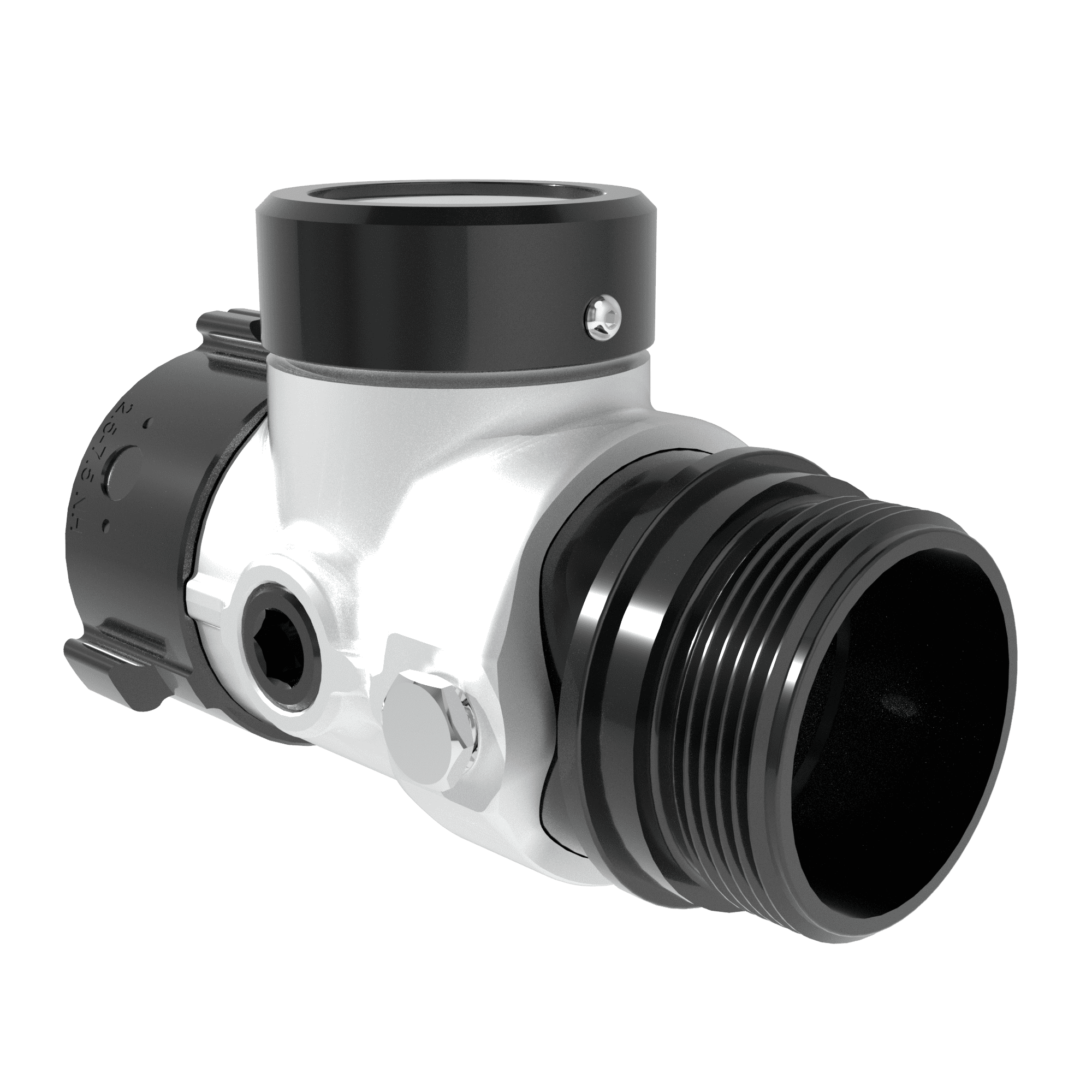

PIVOT IN-LINE PRESSURE GAUGE 2.5

PIVOT IN-LINE PRESSURE GAUGE 2.5"F

J25G300S

0-300 PSI RANGE

$518.00 List Price

Find a Dealer

{{topic}}

{{topic}}

Features

Same as J25G200S above with liquid-filled 0-300 psi (0-21 bar) gauge.

Specifications

Type	Line Pressure Gauge
Weight	2.2
Hemisphere Clamp	No
Hemisphere Mount	No
Inlet	2.5" (65 mm)
Outlet	2.5" (65 mm)
Inlet Coupling Swivel	Full-Time Swivel
Inlet Connection Type	NH Female
Inlet Coupling Style	Rocker
Accuracy	+/-3%-2%-3% Full Scale
Maximum Operating Pressure	300 psi (21 bar)
Measurable Pressure Range	0-300psi (0-20bar)
Outlet Connection Type	NH Male
Outlet Coupling Style	Male Threads
Outlet Coupling Swivel	Swivel
Waterway	2.5" (65 mm)

Documents

Instructions For Installation, Safe Operation and Maintenance

In-Line Pivot Gage and In-Line Gage Manual (pdf)

Technical Specifications and Drawings

J25G300S Item Specification (doc)

Service Procedures

PARTS LIST: IN-LINE PIVOT GAUGE (pdf)
