MASTERSTREAM Series

A Master Stream Nozzle is a deluge nozzle capable of flow rates of 350 GPM (1325 LPM) and above. Our Master Stream nozzles offer a wide variety of flow ranges and come as fixed, selectable, or automatic nozzles.

MASTER STREAM 1000 ER 12-24 VDC 2.5

MASTERSTREAM Series

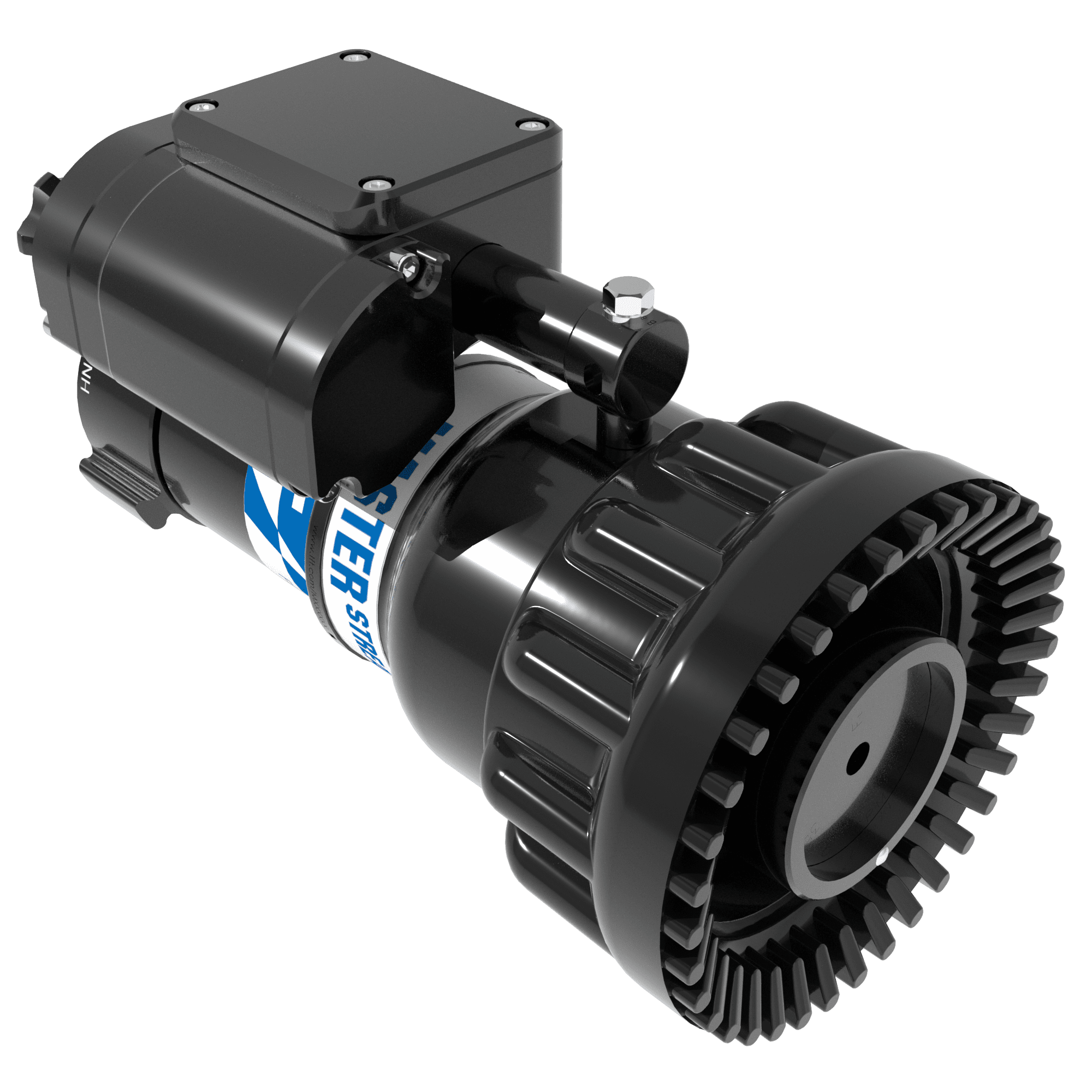

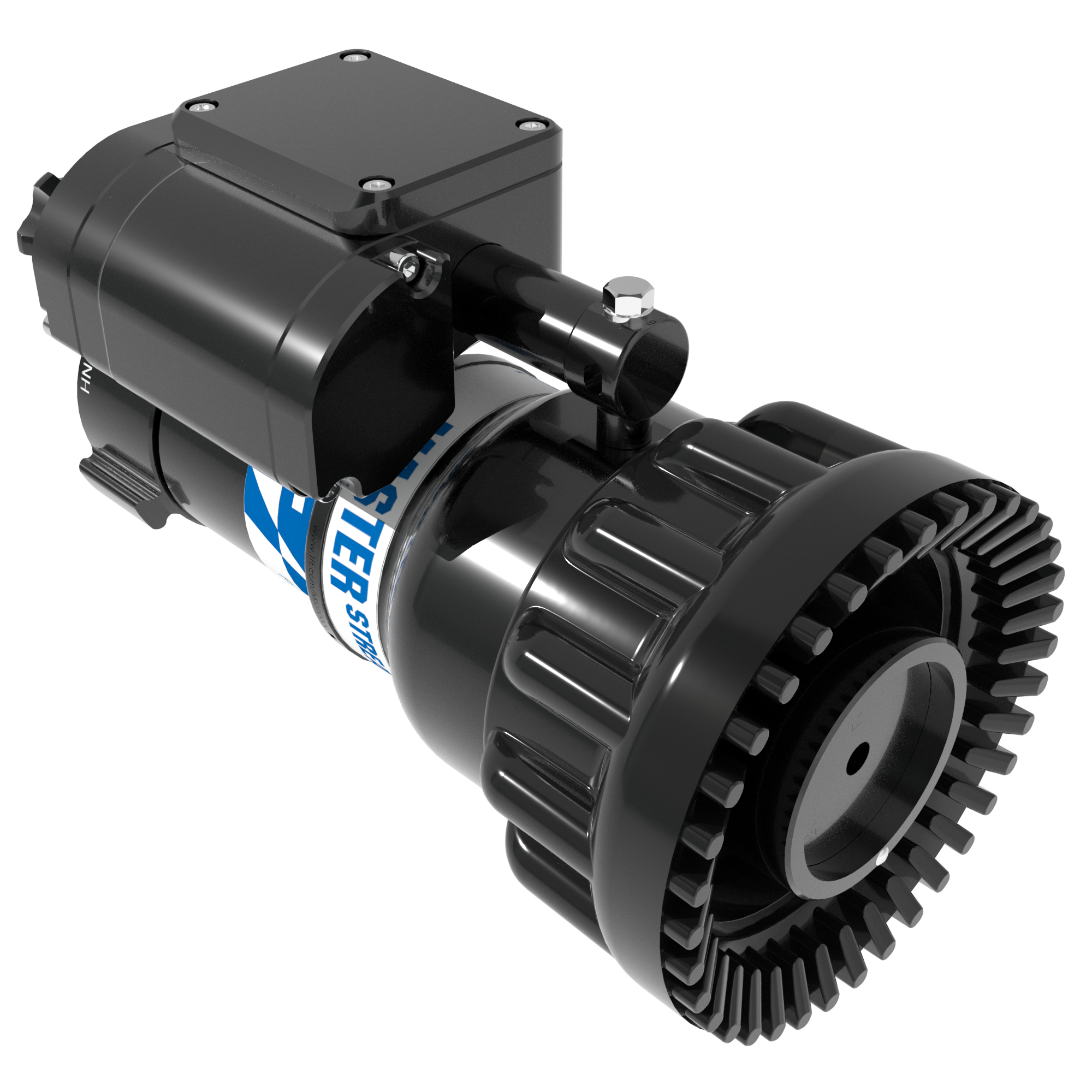

MASTER STREAM 1000 ER 12-24 VDC 2.5"F

M-ERS1000-NJ

250-350-500-750-1000 GPM @ 100 PSI (2) WIRE

$3093.00 List Price

Find a Dealer

{{topic}}

{{topic}}

Features

Same as M-ERSP1000-NJ except with 6 ft (2m) of non-terminated remote wire for custom installations. Does not have SMARTSTREAM technology.

Specifications

Valve Design	No Valve
Flow Rate	250/350/500/750/1000 gpm
Inlet Coupling Style	Rocker
Inlet Coupling Swivel	Non-Full Time Swivel
Pressure Mode	Single
Type	Selectable
Operating Pressure	100 psi (7 bar)
Remote Control	Yes
Weight	13.5
Bumper Material	Rubber - press fit

Documents

Technical Bulletins & Testing Reports

Nozzle Trajectory Elevation Factors (pdf)

Instructions For Installation, Safe Operation and Maintenance

Technical Specifications and Drawings

Service Procedures
