Features

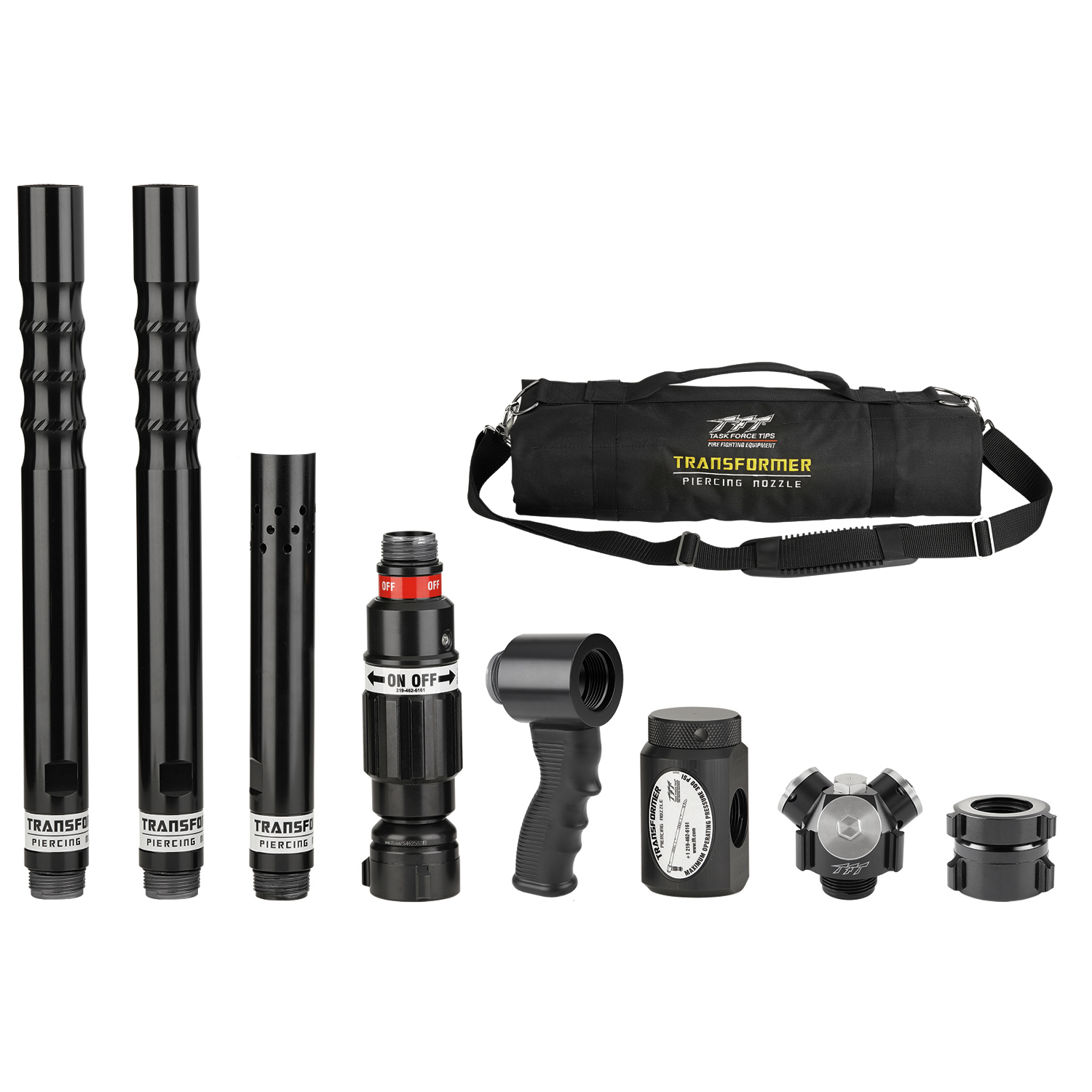

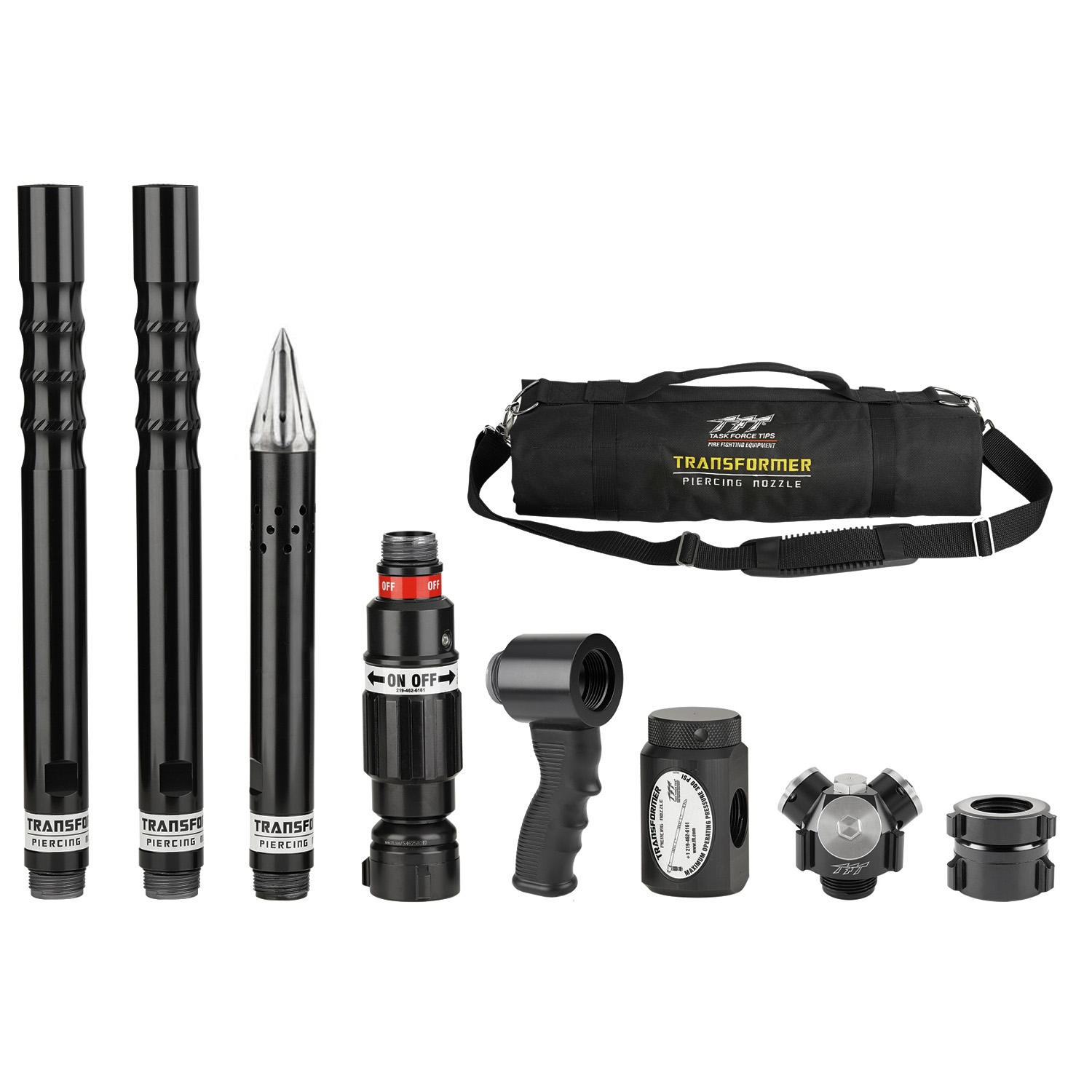

The Task Force Tips Transformer PA2 Piercing Nozzle System is designed to deliver water or foam solutions to areas inaccessible to the fire fighter. A series of jets near the point apply a wide reaching pattern at a rated flow of 570 LPM at 7 bar (150 gpm at 100 psi). The PA2 system includes a distribution nozzle rated at 570 LPM (150 gpm), that provides a wide fully filled pattern, and an adapter allowing the distributor nozzle to be used on any 2.5 cm (1.5") NH threaded hoseline. Also included is a unique twist-grip shutoff valve, a 3 port junction block with striking head, pistol grip, 2 extension tubes, and the flow tube with piercing point. The easy to use and rugged, twist-grip shutoff valve, regulates nozzle flow without the need for an additional shutoff valve. The 3 port junction block and striking head allow the nozzle to be configured to short, medium, long and L shaped combinations, making it easily adaptable to specific fireground situations. The PA2 system features a hardened steel piercing point, an aluminum and stainless distribution nozzle, all extension tubes, pistol grip and valve are constructed of hard coated extruded aluminum, and a sturdy nylon carrying bag with compartments for each component is included.


Specifications

Pistol Grip No
Inlet Coupling Style 1.5 inch BSP Female
Body Size 1.5" (38 mm)
Inlet Coupling Swivel Full Time Swivel
Type Specialty
Remote Control No
Weight 16.8
