Features

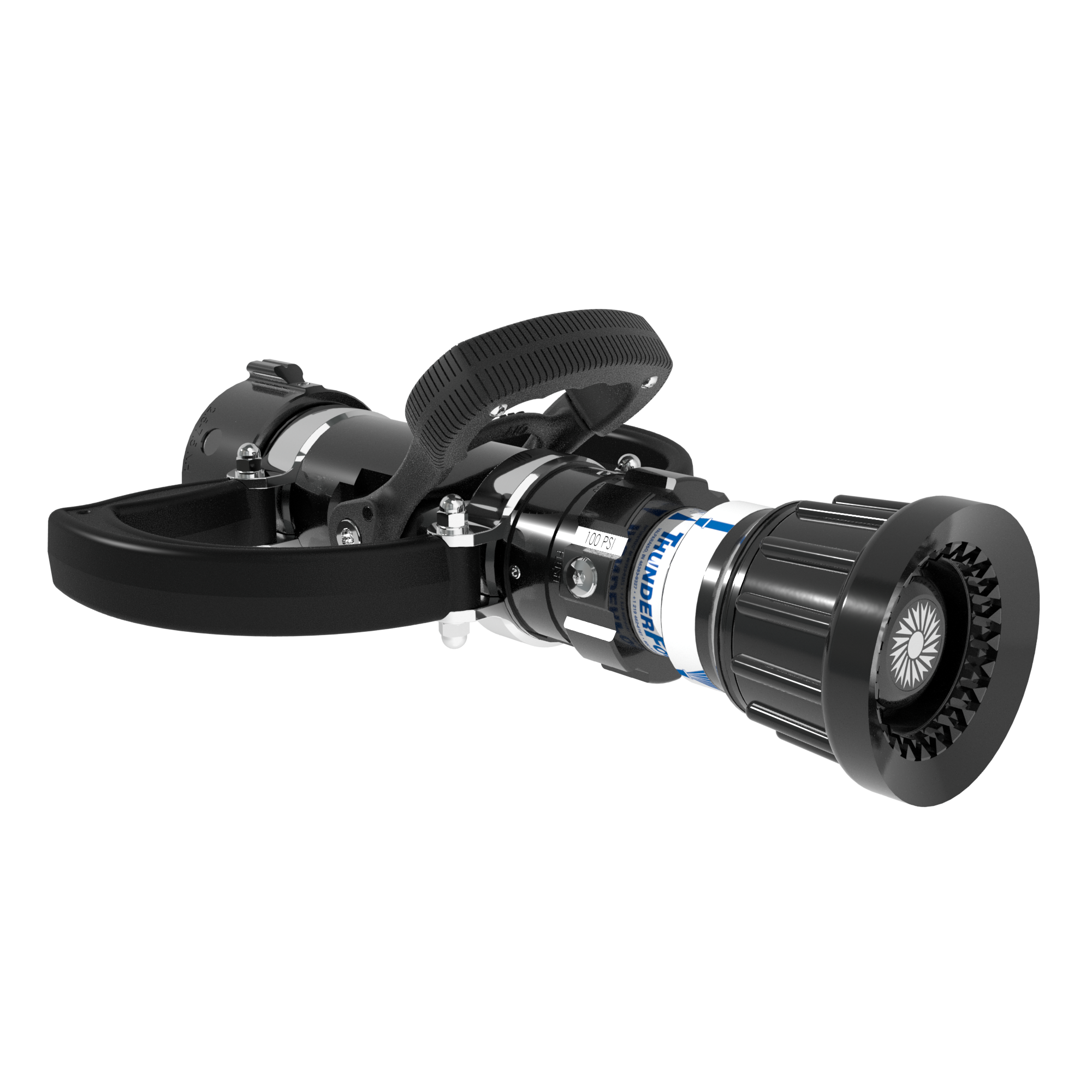

Smallest, most compact nozzle/playpipe combination available for use on 2.5" or 3" (64mm or 76mm) lines. Selectable gallonage nozzle with five flow settings of 95, 125, 150, 200, and 250 gpm @ 100 psi (360-470-570-750-950 l/min @ 7 bar). All lightweight materials, hard coat anodized aluminum. Flush without shutting down. Quick-change rear valve seat and stainless steel shut-off ball. Lightweight hard coat anodized aluminum alloy for maximum corrosion and wear. Nozzle is attached to valve and is not removable. Rubber coated playpipe handles are designed to reduce fatigue. 2.5" NH (64mm) full-time swivel rocker lug coupling is standard. FM Approved


Specifications

Pistol Grip No
Valve Design Stainless
Flow Rate 285-950 l/min
Inlet Coupling Style Rocker
Body Size 2.5" (65 mm)
Inlet Coupling Swivel Non-Full Time Swivel
Style One Piece with Valve
Pressure Mode Single
Type Selectable
Operating Pressure 6 bar (87psi)
Remote Control No
Weight 9.8
Bumper Material Rubber - press fit
Certification EN
