WORKING FIRE Series

The Working Fire nozzle operates like a fixed orifice combination nozzle up to its rated flow. When you over pump the nozzle to intentionally to deliver a higher flow rate, a pressure relief function in the baffle relieves nozzle pressure and minimizes nozzle reaction force as flow rate increases.

WORKING FIRE Series

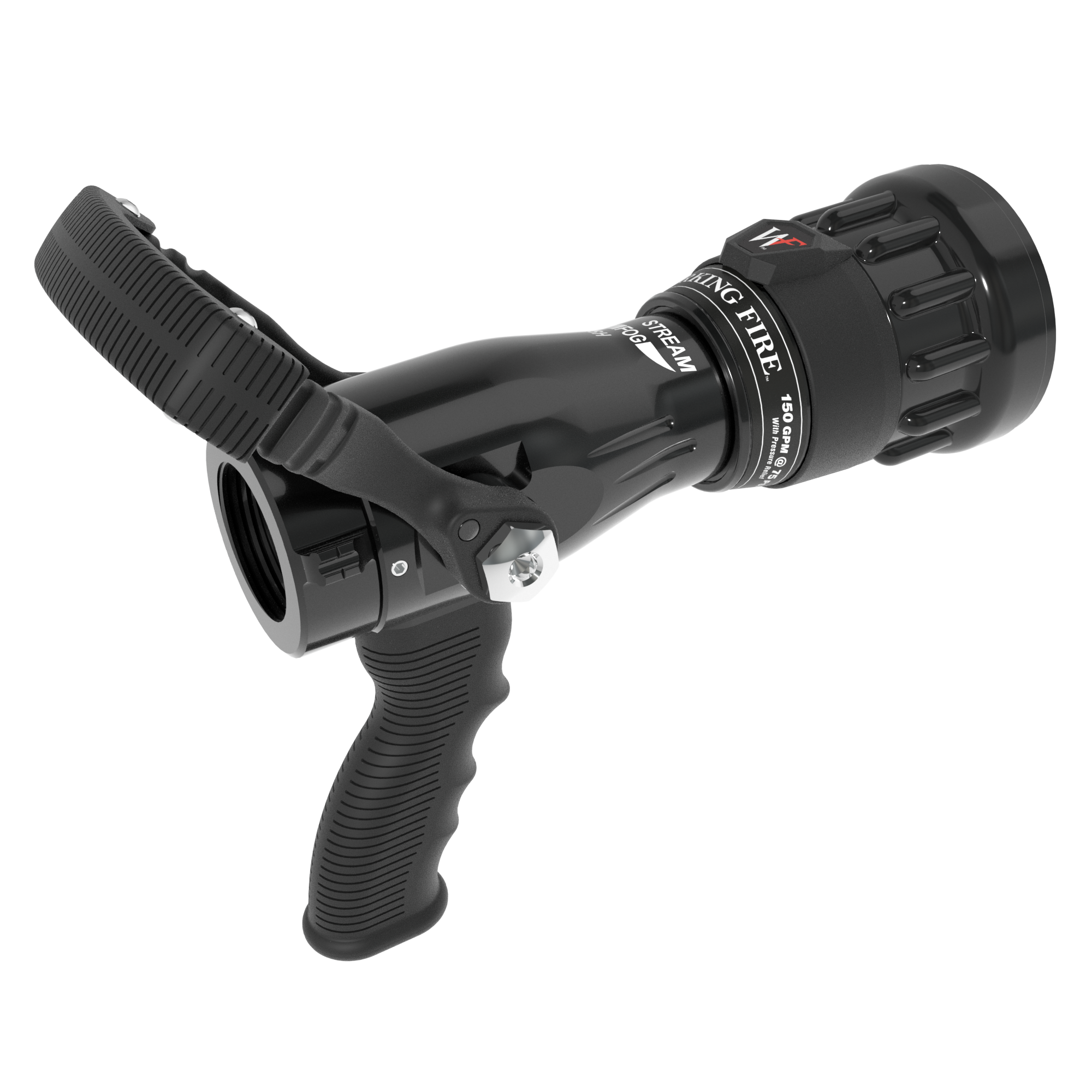

WORKING FIRE VALVE W/GRIP 150GPM@75PSI

WF1GFS-173

1.5"NH SPINNING TEETH

$1374.00 List Price

Find a Dealer

Features

The Working Fire is available in a break-apart or integrated, stainless steel ball valve configuration. Pistol grips, bail handles, and stream shaper are available in colors and spinning teeth are an option. The nozzle has a rugged, black hard coat finish with a black reflective Scotchlite trim. There is a tactile indicator and detent for straight stream that prevents unintended rotation into other streams.

Specifications

Pistol Grip	Yes
Valve Design	Ball Valve
Flow Rate	150 gpm (565 l/min)
Inlet Coupling Style	Rocker
Body Size	1.5" (38 mm)
Inlet Coupling Swivel	Full Time Swivel
Style	One Piece with Valve
Pressure Mode	Single
Type	Fixed
Fog Teeth	Spinning
Operating Pressure	75psi (5bar)
Remote Control	No
Weight	5.15
Bumper Material	Rubber - bonded
Connection Type	NH Female
