WORKING FIRE Series

The Working Fire nozzle operates like a fixed orifice combination nozzle up to its rated flow. When you over pump the nozzle to intentionally to deliver a higher flow rate, a pressure relief function in the baffle relieves nozzle pressure and minimizes nozzle reaction force as flow rate increases.

WORKING FIRE Series

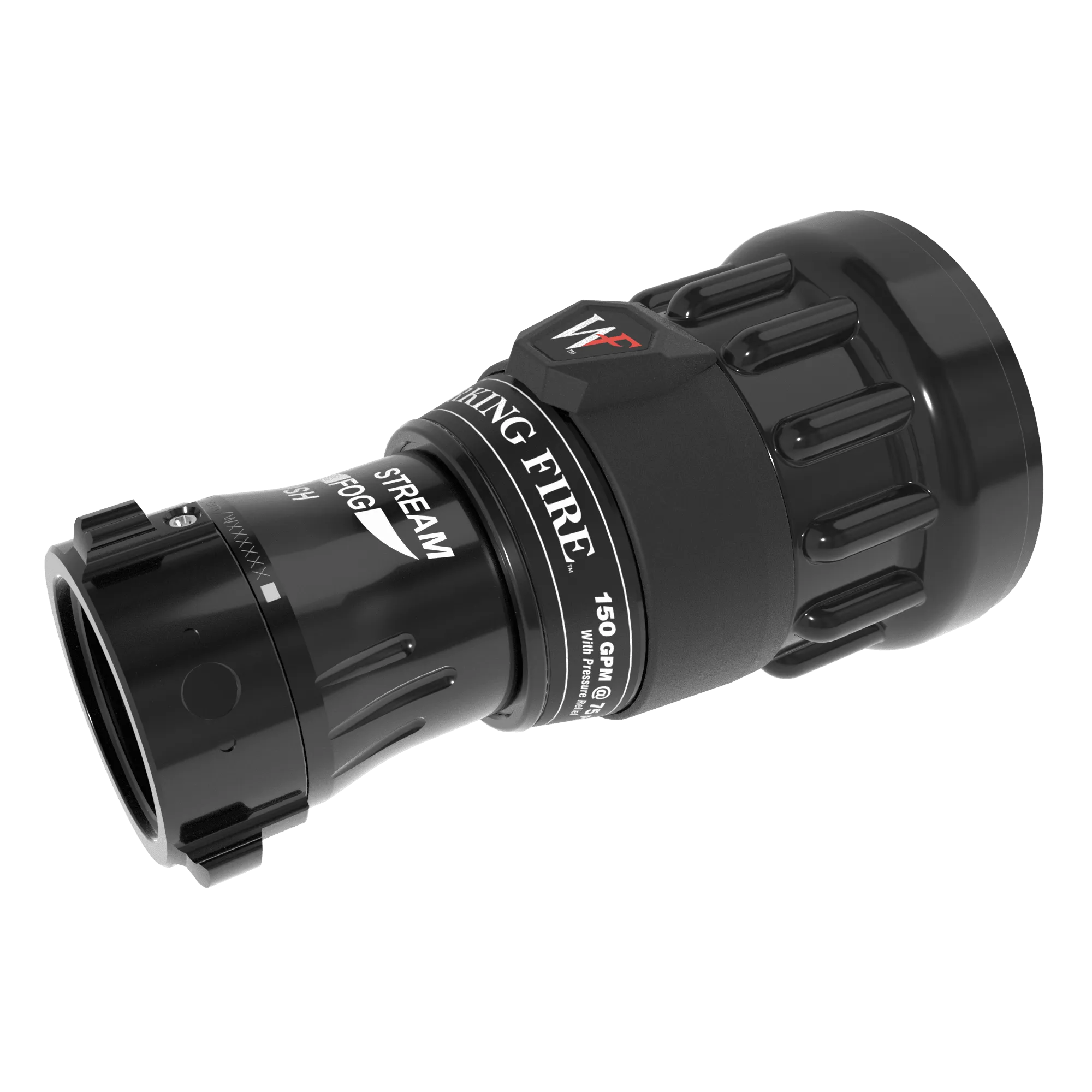

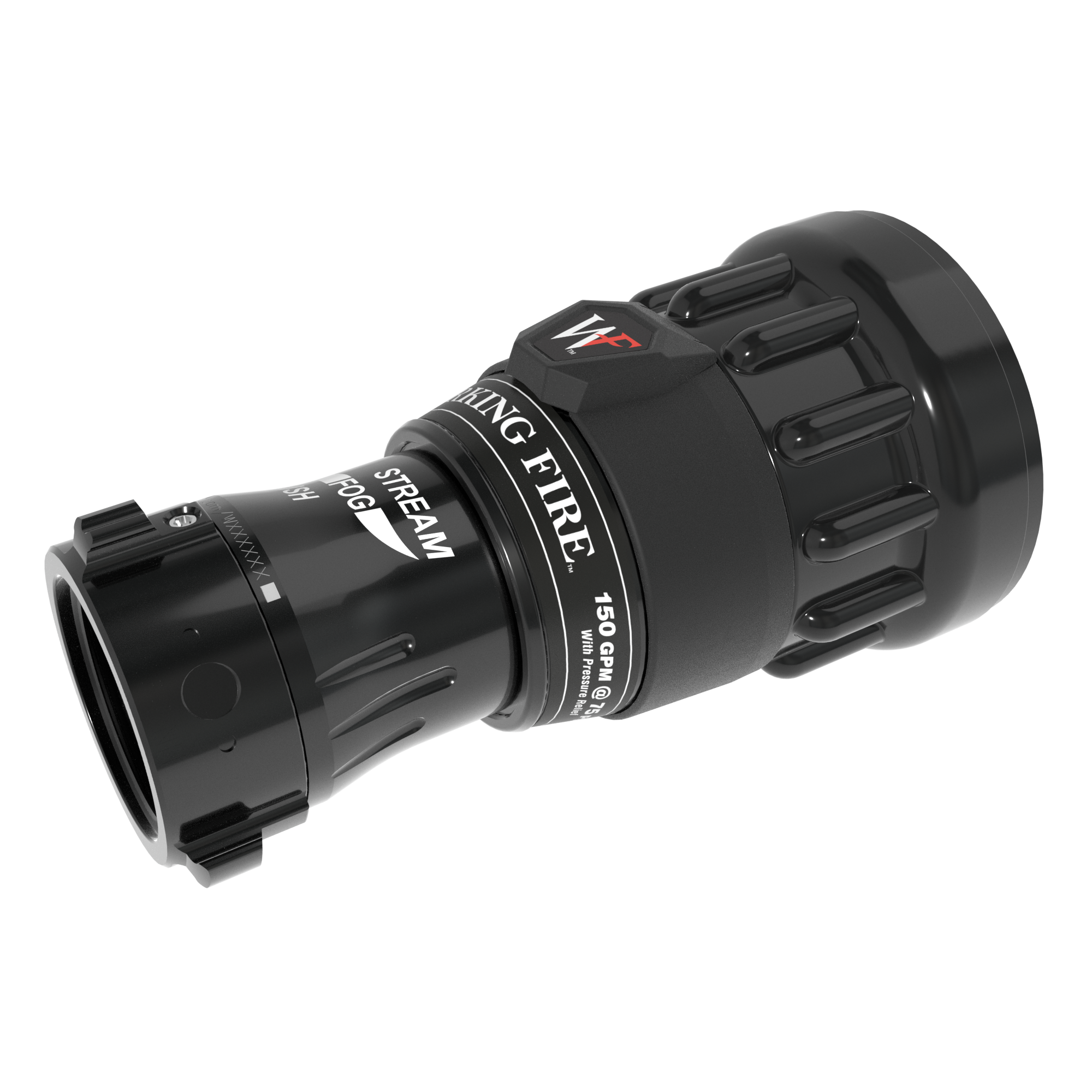

WORKING FIRE TIP ONLY 150GPM@75PSI

WF1TFS-173

1.5"NH SPINNING TEETH

$989.00 List Price

Find a Dealer

Features

The Working Fire is available in a break-apart or integrated, stainless steel ball valve configuration. Pistol grips, bail handles, and stream shaper are available in colors and spinning teeth are an option. The nozzle has a rugged, black hard coat finish with a black reflective Scotchlite trim. There is a tactile indicator and detent for straight stream that prevents unintended rotation into other streams.

Specifications

Pistol Grip	No
Flow Rate	150 gpm (565 l/min)
Break Apart Style	Tip Only
Inlet Coupling Style	Rocker
Body Size	1.5" (38mm)
Inlet Coupling Swivel	Full-Time Swivel
Style	Break-Apart
Pressure Mode	Single
Type	Fixed
Fog Teeth	Spinning
Operating Pressure	75psi (5bar)
Remote Control	No
Weight	2.8
Bumper Material	Rubber - bonded
Connection Type	NH Female
