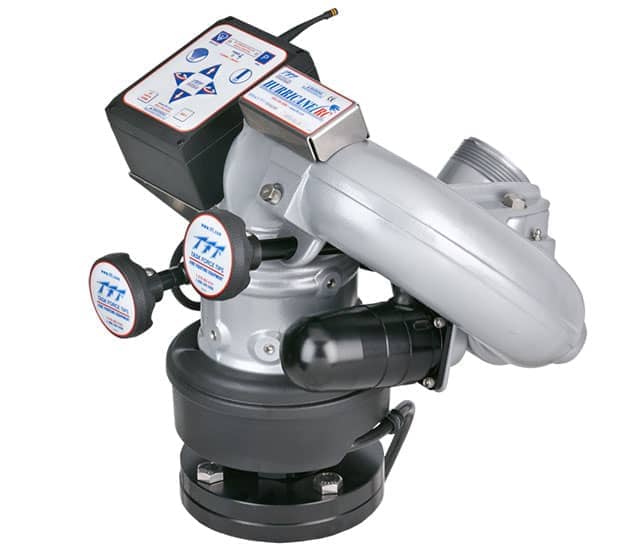

HURRICANE Series
The Hurricane is a fixed location Master Stream device capable of flows up to 1250 GPM (4500 LPM) while maintaining a full 360 degree or 450 degree rotational ability.
HURRICANE Series
HURRICANE RC
XFIH-EL2A
CODE-RLF INLET X 2.5"BSPM OUTLET
$10966.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Apparatus
Pumper
Certification
CE
Finish
Stardust Silver
Horizontal Control
3" Handwheel
Horizontal Movementdegrees
225 left and right
Inlet
TFT-RLF
Max Flow
1,250 gpm (4,500 l/min)
Operation Energy Source
12/24 VDC
Oscillation
No
Outlet
2.5"BSP Male
Remote Control
Yes
Valve Design
No Valve
Vertical Control
3" Handwheel
Vertical Movementdegrees
-45 to 90
Weight
35.2
Documents
Certifications & Approvals
RC Monitors and Nozzles ATEX Certificate Brazil (pdf)
RC Monitors and Nozzles ATEX Certificate Europe (pdf)
Instructions For Installation, Safe Operation and Maintenance
Hurricane Fixed & RC Monitor Instruction Manual (pdf)
Hurricane Monitor Exploded View and Parts List (pdf)
REMOTE CONTROL (RC) MONITOR ELECTRICAL CONTROLS MANUAL (pdf)
Z French MANUEL : SÉRIE HURRICANE DE CANONS À EAU (pdf)
Z German Hurricane Fixed & RC Monitor Instruction Manual (pdf)
Z Portuguese Hurricane and Hurricane RC Monitor (por) (pdf)
Z Spanish Monitores Hurricane Y Hurricane RC (pdf)
Technical Bulletins & Testing Reports
Crossfire® and Hurricane™ Shaft Seal Change (pdf)
LEC-019 Integrating CANbus with TFT RC Monitors (pdf)
Product Bulletin: 3" Monitor Flange Connection Change (pdf)
Online Videos
Hurricane Monitor Series Video (mp4)
Product Brochures
Hurricane Monitor Page (pdf)
Technical Specifications and Drawings
Hurricane Monitor Exploded View and Parts List (pdf)
