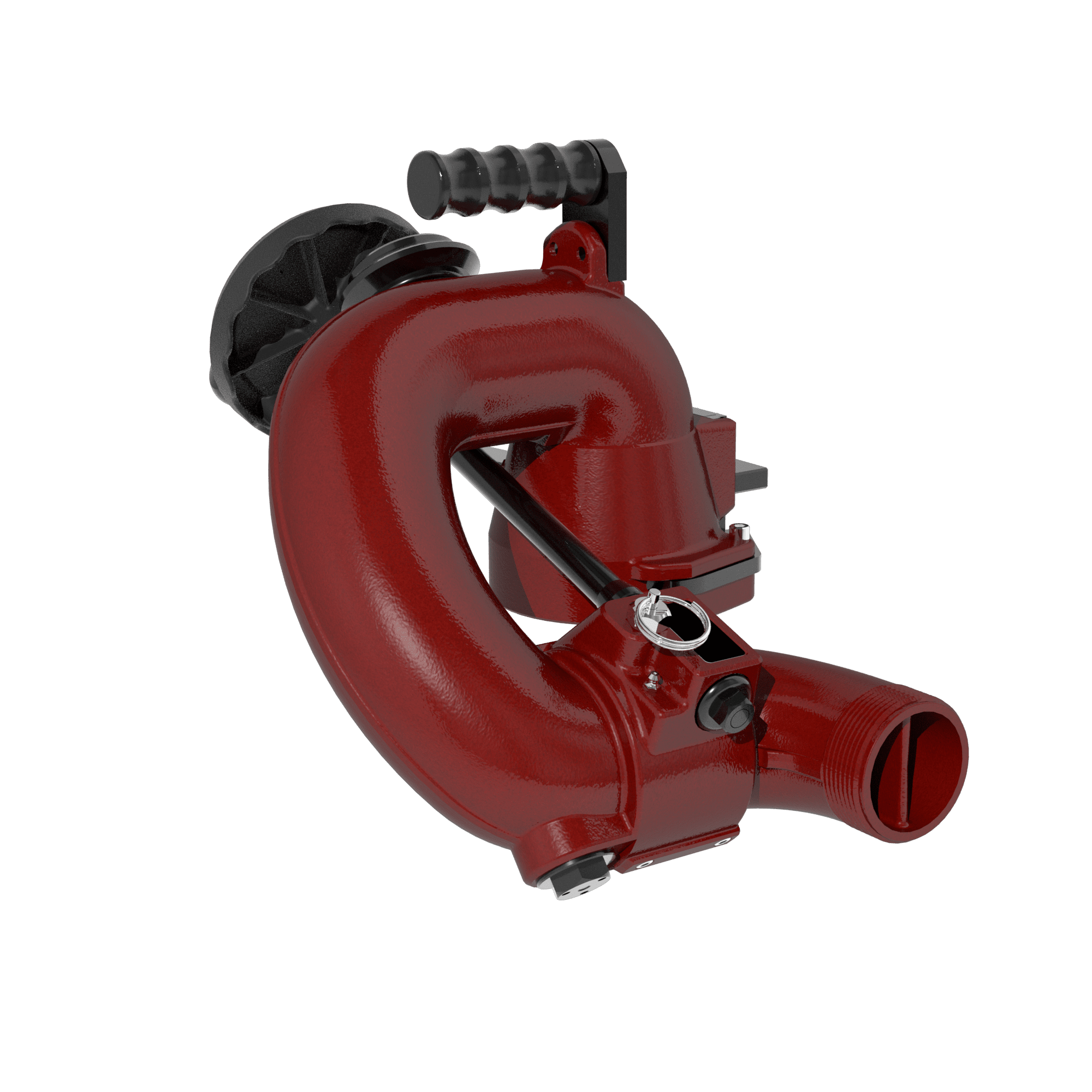

can be connected to either a portable base or a truck with the adapters on page 72 or a TFT Extend-A-Gun with XL outlet on page 137. The connection is easy, positive, and visually verified. When in use, the release is "locked out" by water pressure. The waterway is a large 3.25" (83mm) which lets the CROSSFIRE deliver up to 1250 gpm (4750 l/min) with low friction loss. Horizontal rotation is securely locked with a simple lever, and position can be visually confirmed. Only seven (7) turns of the handwheel change the discharge elbow from vertical to the stop elevation. Includes highly visible pressure gauge and built-in automatic drain valve. Standard outlet thread is male 2.5" NH (65mm).


Coupling Size Side A 2.5" (65 mm)
Coupling Size Side B 2.5" (65 mm)
Coupling Style Side B Male Threads
Finish Fire Engine Red
Horizontal Control Lock Lever
Horizontal Movementdegrees Continuous 360
Inlet Quick Connect Female
Max Flow 1,250 gpm (4,500 l/min)
Operation Energy Source Manual
Oscillation No
Outlet 2.5" (65 mm)
Package No
Safety Shutoff No
Valve Design No Valve
Vertical Control 6" Handwheel
Vertical Movementdegrees 90 to 90
Weight 17
Safety Inlet No
