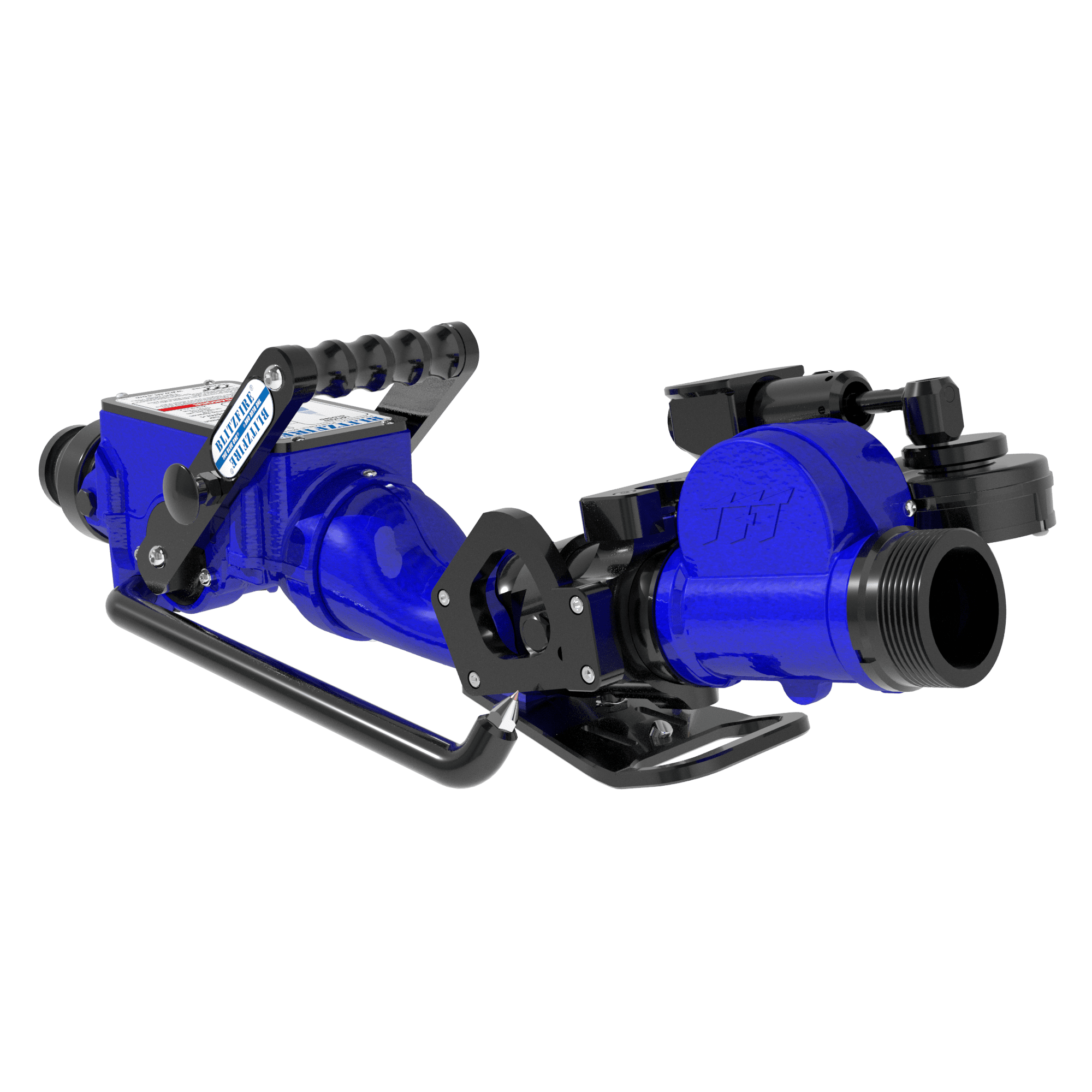

BLITZFIRE HE OSCILLATING MONITOR Flow range up to 500 gpm (2000 l/min). The monitor features low friction inlet and outlet pivots. Elevation is manually adjustable between 10 and 86° above horizontal. The water driven turbine makes the nozzle automatically sweep 10, 15, or 20° either side of center. The oscillating mechanism can be disengaged and horizontal rotation moved manually. The safety shut-off valve will shut off flow if monitor slides or lifts. It has six detent flow positions with a patented turbulence-free slide valve for operator flow control. When the legs are folded, the carbide tips point up for carrying safety. The heavy-duty carbide tipped legs are easily folded out to a wide deployed stance. Stowed in storage bracket overall size is 37.3"L x 10.5"W x 9.5"H (94.7 x 26.7 x 24.4 cm). Standard inlet is 2.5" NH (64mm) swivel rocker lug coupling. Standard outlet is 2.5" NH rigid male threads.


Finish Dark Blue
Horizontal Control N/A
Horizontal Movementdegrees 20 left and right of center
Inlet 2.5" (65 mm)
Max Flow 500 gpm (2,000 l/min)
Operation Energy Source Water
Oscillation Yes
Outlet 2.5" (65 mm)
Package No
Safety Shutoff Yes
Valve Design Aluminum Slide Valve
Vertical Control N/A
Vertical Movementdegrees 10 to 86 above horizontal
Weight 31.2
Safety Inlet No
