Features

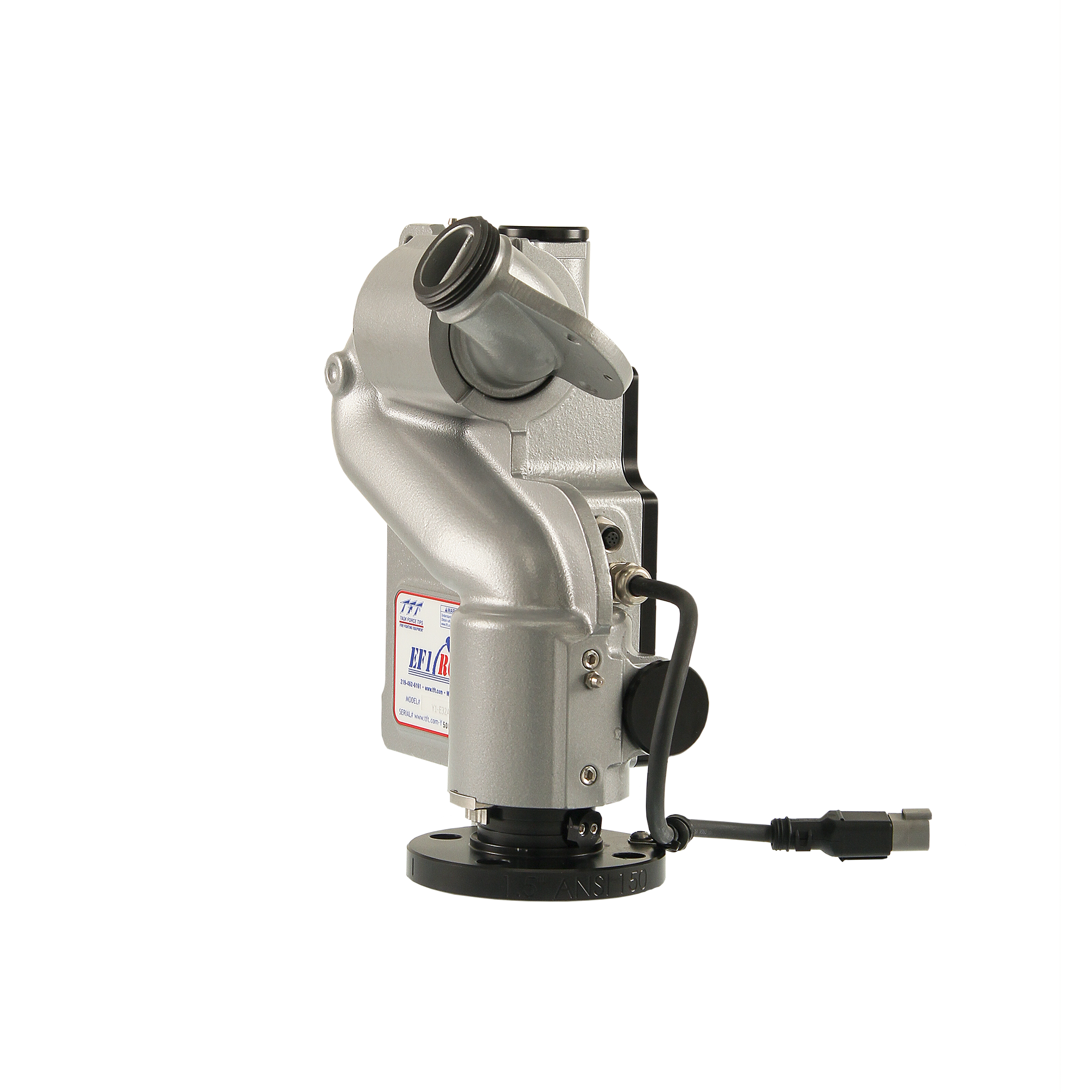

The EF1 RC monitor is extremely compact, yet it has a large 1.5" (38mm) waterway, capable of flowing up to 200 gpm, making it the ideal forestry bumper turret. Waterway with turning vane has only 19 psi (1.3 bar) friction loss at 200 gpm (750 l/min). Elevation range is 90° above horizontal to 45° below. Horizontal travel is 270° (135° either side of a center position). Field changeable horizontal travel stops to give 180° (90° either side of a center position). Designed for 12 VDC or 24 VDC operation, selection is automatic. The EF1 RC monitor optional controllers allow for monitor horizontal rotation, elevation, nozzle pattern, programmable PARK and Oscillate. The motor control circuits use position encoders and current limiting to protect the drive train at the ends of travel. Unit has waterproof factory installed plug on power wire for easy removal or reinstallation. Electric drives and control box are waterproof. Main waterway made from hard coat anodized aluminum. Silver powder coat finish. Various inlets are available. Contact factory for details about wireless operation.


Specifications

Apparatus Pumper
Finish Stardust Silver
Horizontal Movementdegrees 270 total range
Inlet 2.5" ANSI 150
Max Flow 200 gpm (757 l/min)
Operation Energy Source 12/24 VDC
Oscillation No
Outlet 1.5" (38 mm) NPSH Male
Remote Control Yes
Valve Design No Valve
Vertical Movementdegrees 45 below to 90 above horizontal
Weight 22.2
