Home
Products
Fixed Monitors
EF1 Series
EF1 RC CODE-RLF QC INLET
Find a TFT Dealer Near You
location

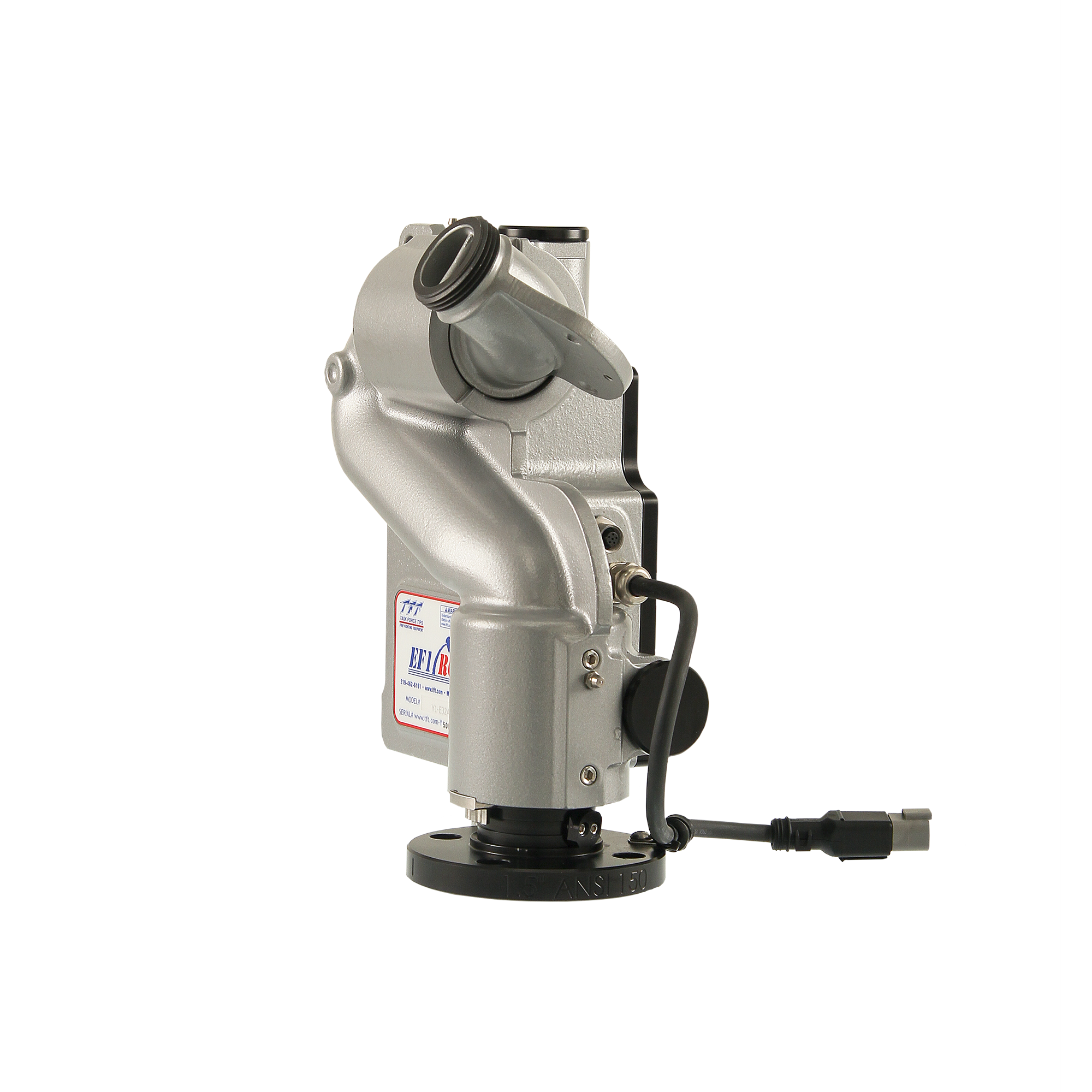

EF1 Series
Our most compact monitor, the EF1 is capable of flows up to 200 GPM (760 LPM).
EF1 Series
EF1 RC CODE-RLF QC INLET
Y1-EH2A
1.5"NHM OUTLET
$5867.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Apparatus
Pumper
Coupling Style Side B
Male Threads
Finish
Stardust Silver
Horizontal Control
N/A
Horizontal Movementdegrees
270 total range
Inlet
TFT-RLF
Max Flow
200 gpm (757 l/min)
Operation Energy Source
12/24 VDC
Oscillation
No
Outlet
1.5" (38 mm)
Remote Control
Yes
Valve Design
No Valve
Vertical Control
N/A
Vertical Movementdegrees
-45 to 90
Weight
18.5
Documents
Technical Specifications and Drawings
EF1 Exploded View (pdf)
Y1-EH2A Item Specification (doc)
YE-LK12-KIT Item Specification (doc)
Instructions For Installation, Safe Operation and Maintenance
EF1 RC MONITOR (pdf)
REMOTE CONTROL (RC) MONITOR ELECTRICAL CONTROLS MANUAL (pdf)
Product Brochures
EF1 RC Product Brochure (pdf)
Online Videos
EF1 Series Video (mp4)
Service Procedures
EF1 RC Motor Replacement Field Installation Procedure (pdf)
