Features

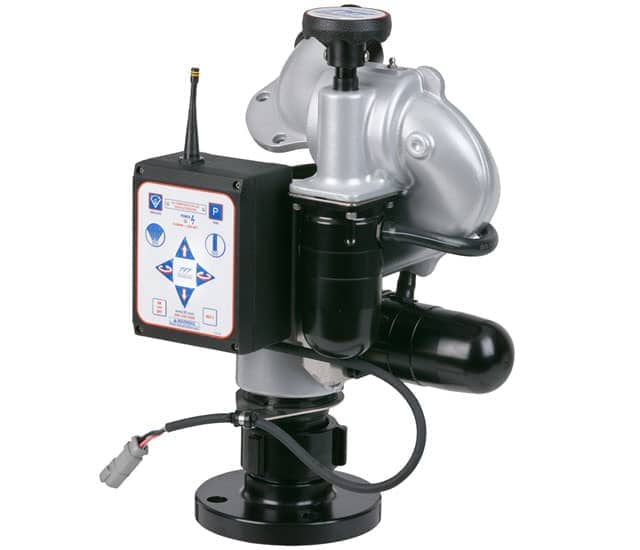

Rated up to 500 gpm, the Tornado is a remotely controlled truck mounted monitor with electric remote control of rotation and elevation angle and nozzle pattern. The electric motor shall provide elevation control from 90° above horizontal to 45° below horizontal. The unit shall have an electronically operated 370° horizontal rotational travel, user installed travel limit stops, stainless steel worm gear drive with manual override knobs, and shall have grease zerk fittings for easy service and lubrication. User operation controls shall be mounted on the monitor, and shall include rotation, elevation, and nozzle stream pattern control programmable park and oscillate and two auxiliary controls. Optional remote wired, tethered and wireless remote controls shall be available. The discharge elbow shall include an integral stream straightener. The monitor shall be constructed of hard coat anodized aluminum alloy and shall have a silver powder coat finish inside and out. Various flange and threaded inlets including locking quick connect shall be available (specify). Unit shall have serial number and a 5-year warranty.


Specifications

Apparatus Pumper
Certification CE
Finish Stardust Silver
Horizontal Control 3" Handwheel
Horizontal Movementdegrees 185 left and right of center
Inlet 2.5"NH
Max Flow 500 gpm (2,000 l/min)
Operation Energy Source 12/24 VDC
Oscillation Yes
Outlet 2.5"BSP Male
Remote Control Yes
Valve Design No Valve
Vertical Control 3" Handwheel
Vertical Movementdegrees 45 below to 90 above horizontal
Weight 27
Oscillation Method Electrical
