MONSOON Series
MONSOON RC 4"ANSI 150/DN100PN16 PLATFORM
Find a TFT Dealer Near You
location
MONSOON Series
Monsoon can flow up to 1250 GPM (4750 LPM) or 2000 GPM (7600 LPM) and comes in manual or remote versions.
MONSOON Series

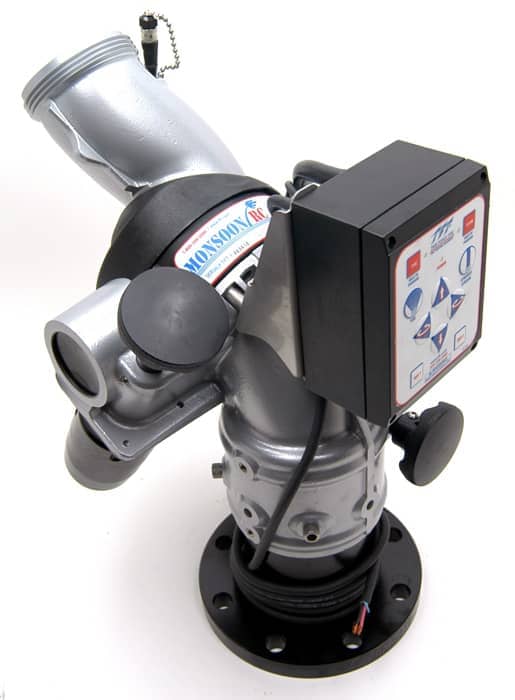

MONSOON RC 4"ANSI 150/DN100PN16 PLATFORM
Y4-E21A-P-01
3.5"NH MALE OUTLET W/O ELEC BOX
$11801.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Apparatus
Aerial Platforms
Certification
CE
Finish
Stardust Silver
Horizontal Control
3" Handwheel
Horizontal Movementdegrees
90 left and right
Inlet
4"ANSI 150
Max Flow
2,000gpm (7,600 l/min)
Operation Energy Source
12/24 vdc
Oscillation
No
Outlet
3.5in (90mm) NH Male
Remote Control
No
Valve Design
No Valve
Vertical Control
3" Handwheel
Vertical Movementdegrees
45 to 45
Weight
44.2
Documents
Instructions For Installation, Safe Operation and Maintenance
Monsoon Monitor Instruction Manual (pdf)
REMOTE CONTROL (RC) MONITOR ELECTRICAL CONTROLS MANUAL (pdf)
Z Portuguese Monsoon RC Monitor (pdf)
Z Spanish Manual Monitor Monsoon Y Monsoon RC-SPANISH (pdf)
Technical Specifications and Drawings
MONSOON DRAWING & PARTS LIST (pdf)
Y4-E21A-P-01 Item Specification (doc)
Certifications & Approvals
RC Monitors and Nozzles ATEX Certificate Brazil (pdf)
RC Monitors and Nozzles ATEX Certificate Europe (pdf)
Technical Bulletins & Testing Reports
LEC-019 Integrating CANbus with TFT RC Monitors (pdf)
Online Videos
Monsoon Series Video (mp4)
Product Brochures
Monsoon Monitor Page (pdf)
