Home
Products
Fixed Monitors
MONSOON Series
MONSOON 4"ANSI 150/DN100 PN16 INLET
Find a TFT Dealer Near You
location

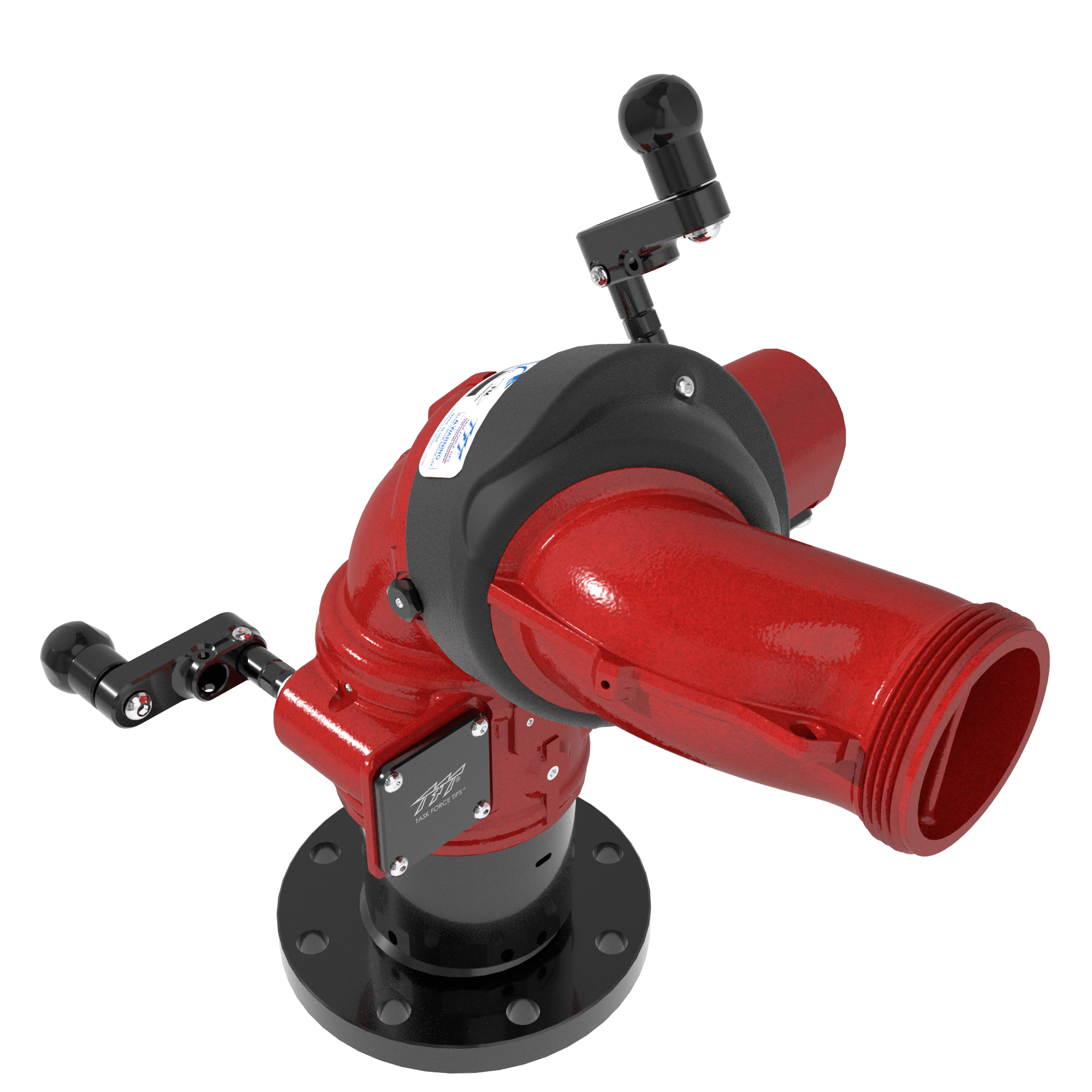

MONSOON Series
Monsoon can flow up to 1250 GPM (4750 LPM) or 2000 GPM (7600 LPM) and comes in manual or remote versions.
MONSOON Series
MONSOON 4"ANSI 150/DN100 PN16 INLET
Y4-M25A-Z
2.5"NH MALE OUTLET -AMER. RED POWDERCOAT
$3899.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Apparatus
Pumper
Certification
FM
Finish
American Red
Horizontal Control
Alum Crank Handle
Horizontal Movementdegrees
Continuous 360
Inlet
4"ANSI 150
Max Flow
1,250 gpm (4,500 l/min)
Operation Energy Source
Manual
Oscillation
No
Outlet
2.5"NH Male
Remote Control
No
Valve Design
No Valve
Vertical Control
Alum Crank Handle
Vertical Movementdegrees
-45 to 90
Weight
25
Documents
Instructions For Installation, Safe Operation and Maintenance
Monsoon Monitor Instruction Manual (pdf)
REMOTE CONTROL (RC) MONITOR ELECTRICAL CONTROLS MANUAL (pdf)
Z Portuguese Monsoon RC Monitor (pdf)
Z Spanish Manual Monitor Monsoon Y Monsoon RC-SPANISH (pdf)
Certifications & Approvals
RC Monitors and Nozzles ATEX Certificate Brazil (pdf)
RC Monitors and Nozzles ATEX Certificate Europe (pdf)
Technical Specifications and Drawings
MONSOON DRAWING & PARTS LIST (pdf)
Y4-M25A-Z Item Specification (doc)
Y4-M25A-Z_Horizontal - 3D (zip)
Technical Bulletins & Testing Reports
LEC-019 Integrating CANbus with TFT RC Monitors (pdf)
Online Videos
Monsoon Series Video (mp4)
Product Brochures
Monsoon Monitor Page (pdf)
