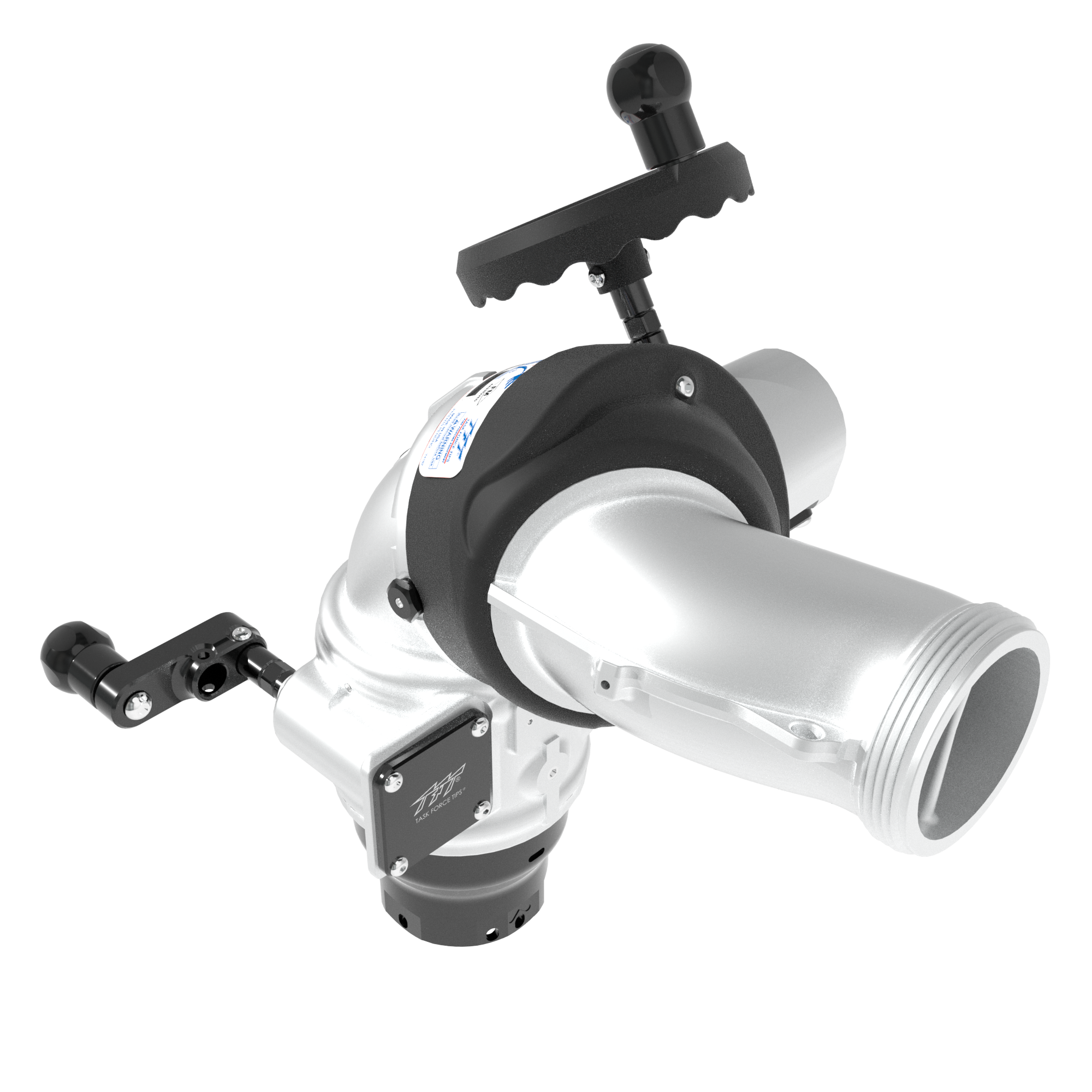

MONSOON Series
Monsoon can flow up to 1250 GPM (4750 LPM) or 2000 GPM (7600 LPM) and comes in manual or remote versions.
MONSOON Series
MONSOON TFT CODE-RLF INLET
Y4-ML5A
2.5"NH MALE OUTLET
$3899.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Apparatus
Pumper
Certification
FM
Coupling Style Side B
Male Threads
Finish
Stardust Silver
Horizontal Control
Alum Crank Handle
Horizontal Movementdegrees
Continuous 360
Inlet
TFT-RLF
Max Flow
1,250 gpm (4,500 l/min)
Operation Energy Source
Manual
Oscillation
No
Outlet
2.5"NH Male
Remote Control
No
Valve Design
No Valve
Vertical Control
6" Handwheel
Vertical Movementdegrees
45 below to 90 above horizontal
Weight
27.65
Documents
Instructions For Installation, Safe Operation and Maintenance
Monsoon Monitor Instruction Manual (pdf)
REMOTE CONTROL (RC) MONITOR ELECTRICAL CONTROLS MANUAL (pdf)
Z Portuguese Monsoon RC Monitor (pdf)
Z Spanish Manual Monitor Monsoon Y Monsoon RC-SPANISH (pdf)
Certifications & Approvals
RC Monitors and Nozzles ATEX Certificate Brazil (pdf)
RC Monitors and Nozzles ATEX Certificate Europe (pdf)
Technical Bulletins & Testing Reports
LEC-019 Integrating CANbus with TFT RC Monitors (pdf)
Online Videos
Monsoon Series Video (mp4)
Product Brochures
Monsoon Monitor Page (pdf)
Technical Specifications and Drawings
MONSOON DRAWING & PARTS LIST (pdf)
Y4-ML5A Item Specification (doc)
