MONSOON Series
Monsoon can flow up to 1250 GPM (4750 LPM) or 2000 GPM (7600 LPM) and comes in manual or remote versions.
MONSOON Series

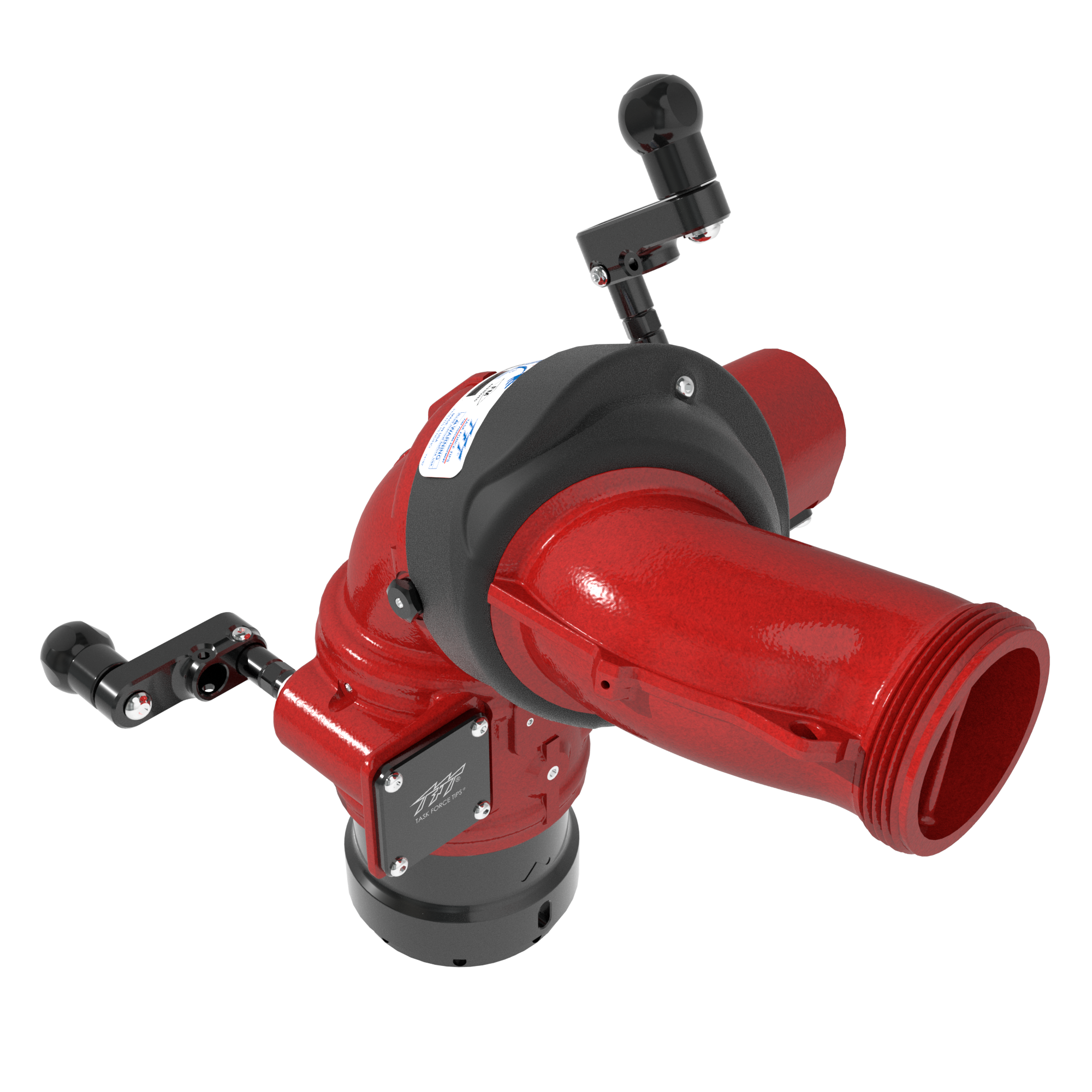

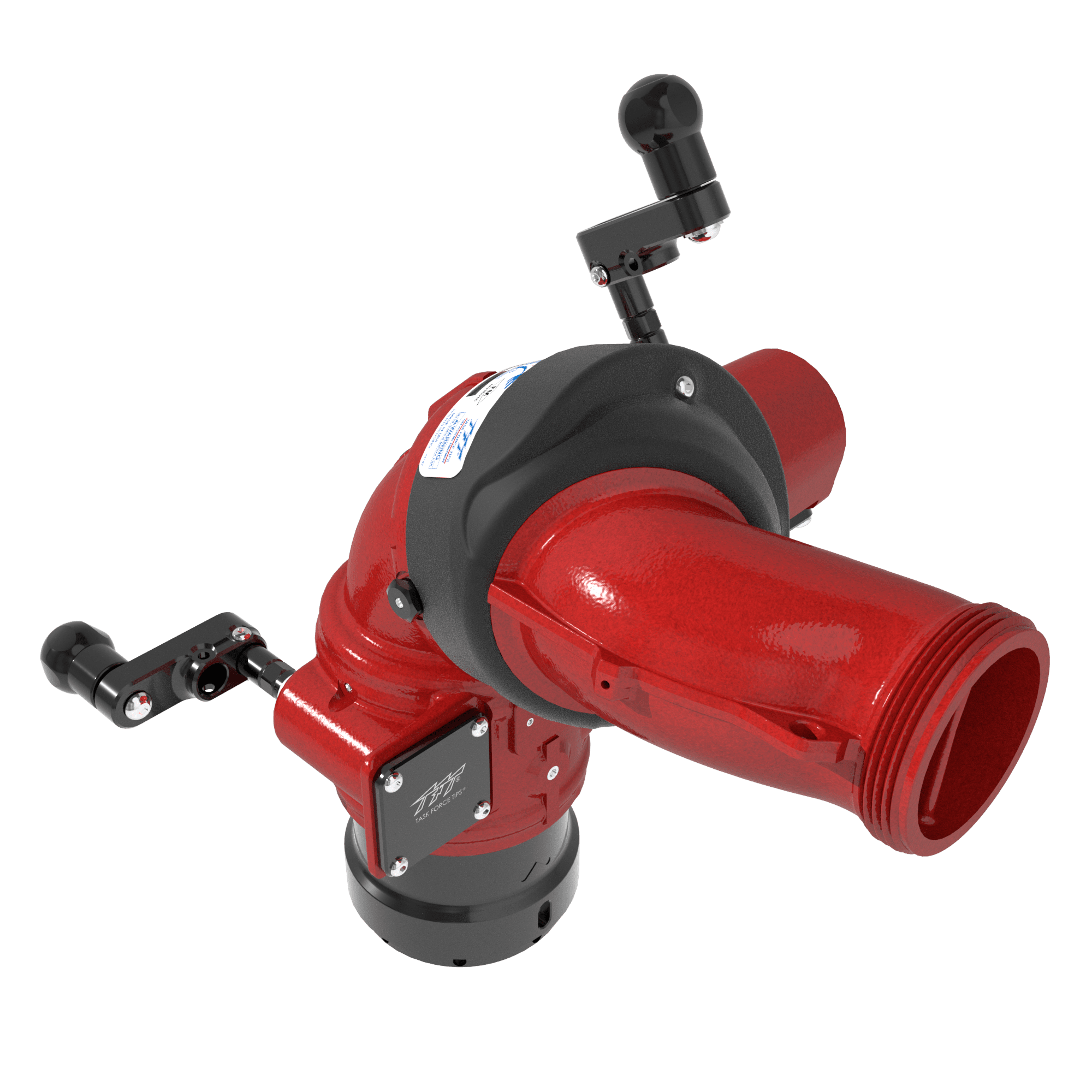

MONSOON TFT CODE-RRM INLET
Y4-MX1A-Z
3.5"NH MALE OUTLET -AMER. RED POWDERCOAT
$5525.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Apparatus
Pumper
Certification
FM
Finish
American Red
Horizontal Control
Alum Crank Handle
Horizontal Movementdegrees
Continuous 360
Inlet
TFT Code-RRM
Max Flow
2,000 gpm (7,600 l/min)
Operation Energy Source
Manual
Oscillation
No
Outlet
3.5in (90mm) NH Male
Remote Control
No
Valve Design
No Valve
Vertical Control
Alum Crank Handle
Vertical Movementdegrees
-45 to 90
Weight
20
Documents
Instructions For Installation, Safe Operation and Maintenance
Monsoon Monitor Instruction Manual (pdf)
REMOTE CONTROL (RC) MONITOR ELECTRICAL CONTROLS MANUAL (pdf)
Z Portuguese Monsoon RC Monitor (pdf)
Z Spanish Manual Monitor Monsoon Y Monsoon RC-SPANISH (pdf)
Certifications & Approvals
RC Monitors and Nozzles ATEX Certificate Brazil (pdf)
RC Monitors and Nozzles ATEX Certificate Europe (pdf)
Technical Specifications and Drawings
MONSOON DRAWING & PARTS LIST (pdf)
Y4-MX1A-Z Finished Good Print (zip)
Y4-MX1A-Z Finished Good Print (pdf)
Y4-MX1A-Z Finished Good Print - STEP (dxf)
Y4-MX1A-Z Item Specification (doc)
Technical Bulletins & Testing Reports
LEC-019 Integrating CANbus with TFT RC Monitors (pdf)
Online Videos
Monsoon Series Video (mp4)
Product Brochures
Monsoon Monitor Page (pdf)
