Home
Products
Fixed Monitors
TYPHOON Series
TYPHOON RC 3"ANSI 150
Find a TFT Dealer Near You
location
TYPHOON Series

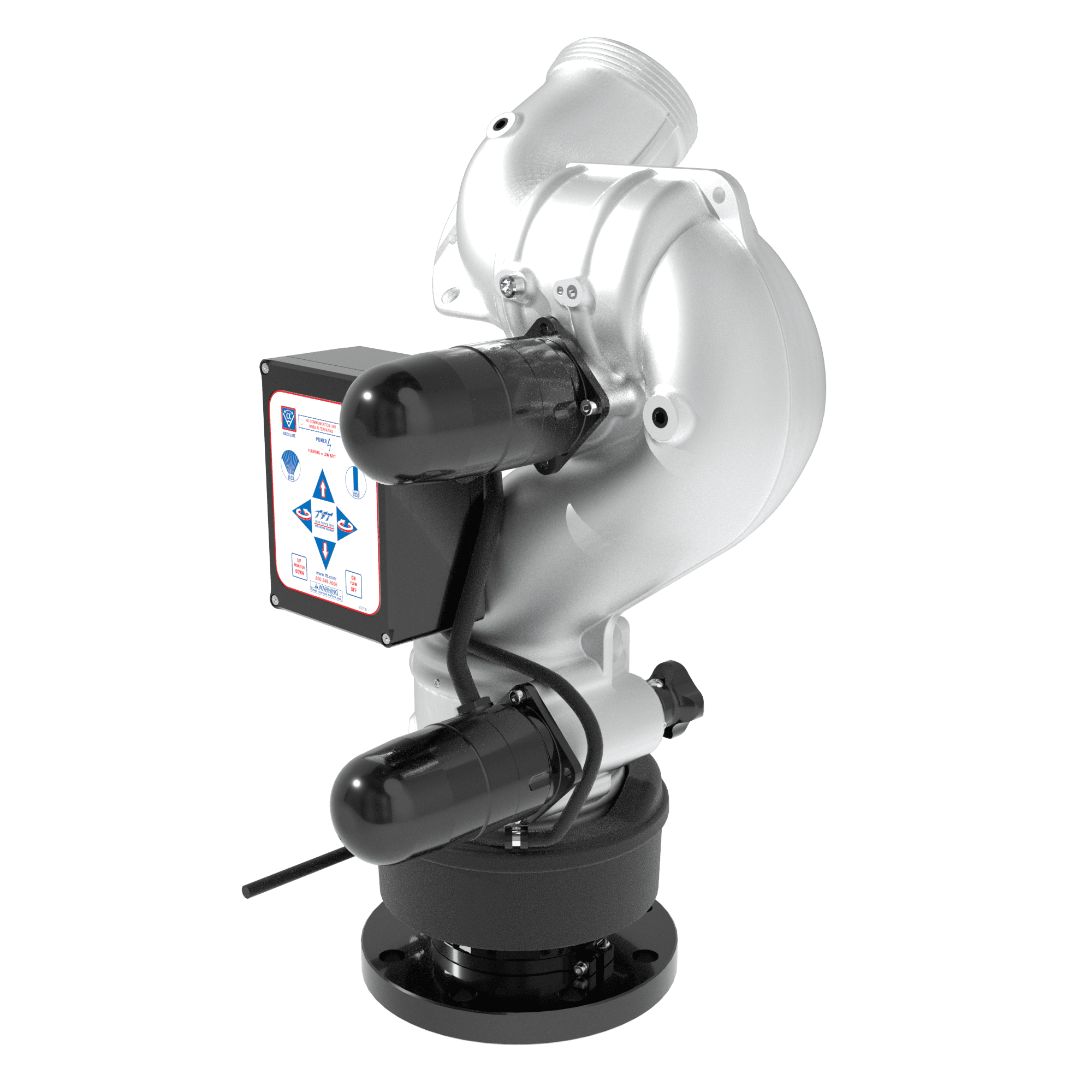

Typhoon is a fixed firefighting monitor capable of flowing up to 1500 GPM (6000 LPM). The appliance is compatible with our Extend-A-Gun and Valve Under Monitor.
TYPHOON Series
TYPHOON RC 3"ANSI 150
Y5-E11A
3.5"NH MALE OUTLET
$11860.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Apparatus
Pumper
Certification
CE
Finish
Stardust Silver
Horizontal Control
3" Handwheel
Horizontal Movementdegrees
225 left and right
Inlet
3.0" ANSI 150
Max Flow
1,500 gpm (6,000 l/min)
Operation Energy Source
12/24 VDC
Oscillation
No
Outlet
3.5in (90mm) NH Male
Remote Control
Yes
Valve Design
No Valve
Vertical Control
3" Handwheel
Vertical Movementdegrees
-45 to 90
Weight
43
Documents
Technical Specifications and Drawings
Typhoon Exploded View and Parts List (pdf)
Y5-E11A Item Specification (doc)
Y5-E11A_Horizontal - 3D (zip)
YE-LK12-KIT Item Specification (doc)
Certifications & Approvals
RC Monitors and Nozzles ATEX Certificate Brazil (pdf)
RC Monitors and Nozzles ATEX Certificate Europe (pdf)
Instructions For Installation, Safe Operation and Maintenance
Typhoon & Typhoon RC Monitor Instruction Manual (pdf)
Typhoon Exploded View and Parts List (pdf)
Z Portuguese Typhoon RC Monitor (pdf)
Technical Bulletins & Testing Reports
LEC-019 Integrating CANbus with TFT RC Monitors (pdf)
Service Procedures
PARTS LIST: TYPHOON (pdf)
