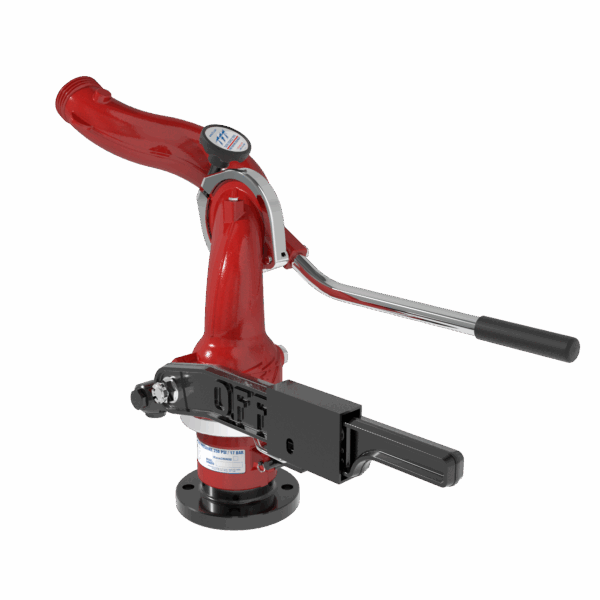

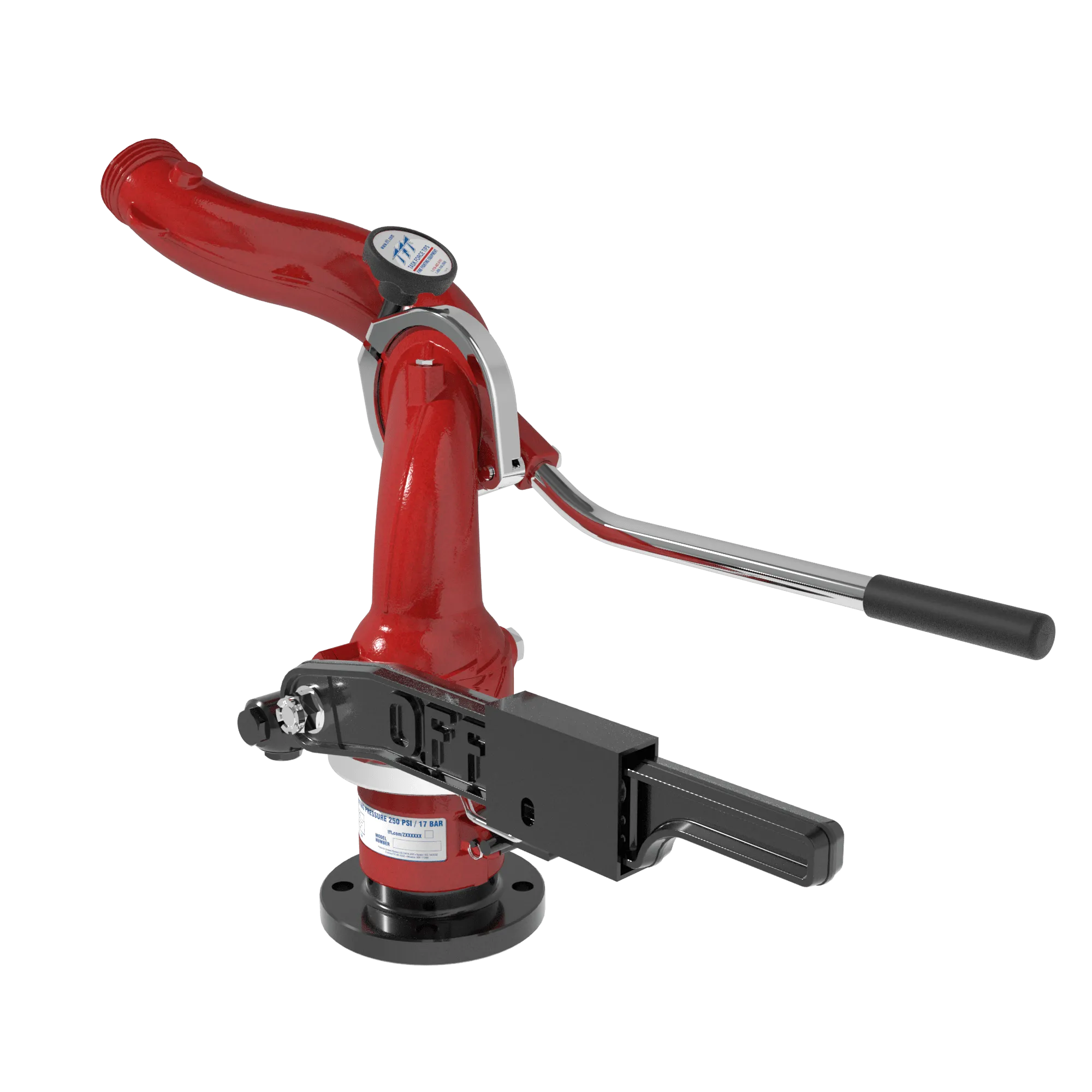

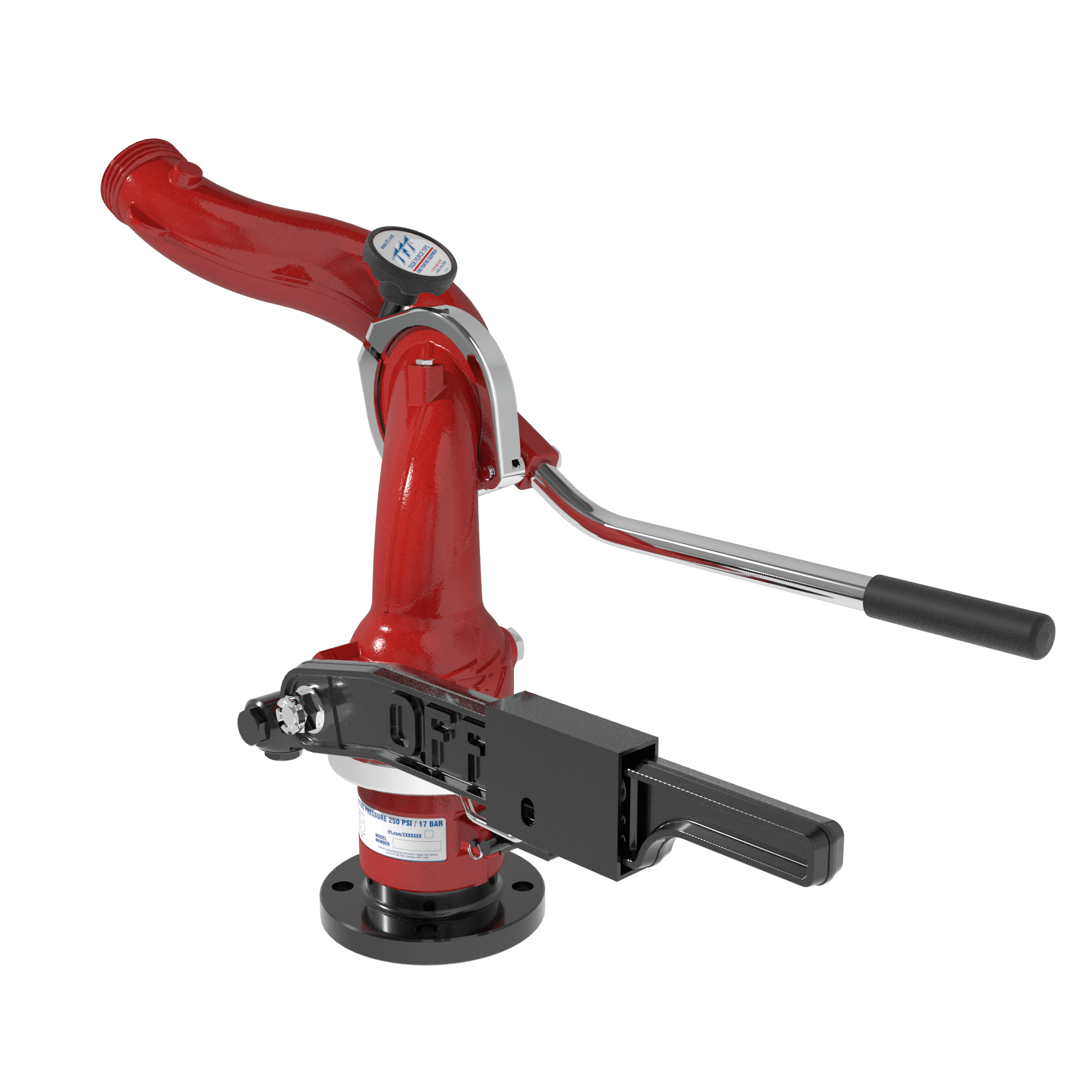

The Task Force Tips’ Protector is a simple and rugged fixed station monitor with many unique features. Its patented waterway gives low friction loss and delivers water to the nozzle with fewer twists and turns than a conventional monitor. The optional built-in on/off valve with position indicator eliminates the need to add a costly valve to the monitor installation. The Protector is capable of flowing up to 1250 gpm (4750 l/min) while maintaining a FULL 360° rotational ability. The lever-action rotational lock is activated in one motion, visually confirmed, and securely holds the monitor’s horizontal position. The Protector can be directly bolted to many common pipe flanges. The outlet is available with various 2.5” (65mm) male threads. The simple and basic design requires no grease application or other maintenance. Swiveling elements and seals (including valve seat) can be replaced within a few minutes with common hand tools. Threaded ports (0.25” NPT) (6mm) are provided for drain valve (included) and pressure gauge installation. Maximum pressure is 250 psi (17 bar). The Protector is hard coat anodized ANSI 356-T6 aluminum and is fully powder coat finished inside and out. Swivel clamps, 3” (75mm) valve ball, trunnions, and hardware are 18-8 stainless steel.


Finish American Red
Horizontal Control Tiller Bar w/Lever Lock
Horizontal Movementdegrees Continuous 360
Inlet 3.0" ANSI 150
Max Flow 1,250 gpm (4,500 l/min)
Operation Energy Source Manual
Oscillation No
Outlet 2.5"NH Male
Remote Control No
Sweep Angledegrees Fixed Center
Valve Design Stainless
Vertical Control Tiller Bar w/Lock
Vertical Movementdegrees 70 below to 80 above horizontal
Weight 36
