PROTECTOR Series

The Protector monitor can flow up to 1250 GPM (4800 LPM) while maintaining a full 360-degrees of rotational ability.

PROTECTOR NO VALVE

PROTECTOR Series

PROTECTOR NO VALVE

Z1242A

DN80 PN16 X 2.5"BSPM

$2539.00 List Price

Find a Dealer

{{topic}}

{{topic}}

Features

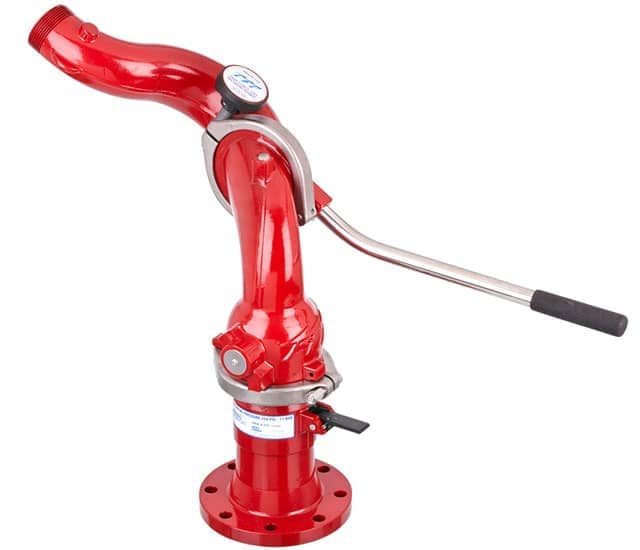

Protector monitor without on/off valve and with 2.5" (65mm) threaded exit. 1250 gpm (4500 l/min) rating. See chart to obtain model number for specific inlet and outlet options.

Specifications

Finish	American Red
Horizontal Control	Tiller Bar w/Lever Lock
Horizontal Movementdegrees	Continuous 360
Inlet	DN80, PN16
Max Flow	1,250 gpm (4,500 l/min)
Operation Energy Source	Manual
Oscillation	No
Outlet	2.5"BSP Male
Remote Control	No
Sweep Angledegrees	Fixed Center
Valve Design	No Valve
Vertical Control	Tiller Bar w/Lock
Vertical Movementdegrees	70 below to 80 above horizontal
Weight	33

Documents

Product Brochures

Z Indonesian Protector (pdf)

Instructions For Installation, Safe Operation and Maintenance

Protector Monitor Instruction Manual (pdf)

Service Procedures

PARTS LIST: PROTECTOR (pdf)
