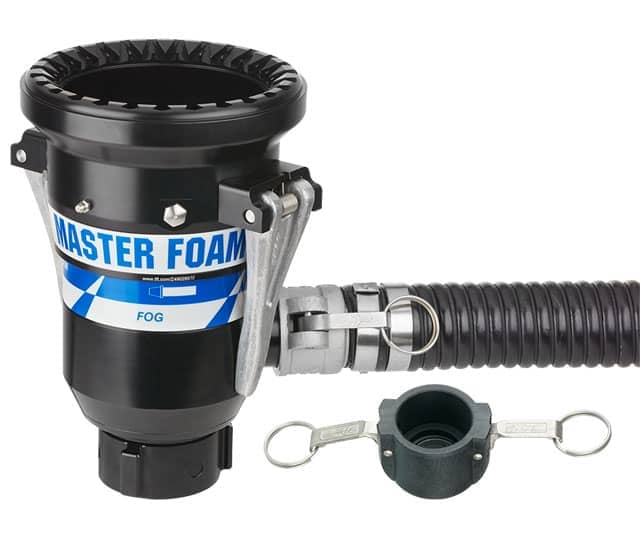

The Task Force Tips’ MASTER FOAM nozzle is a simple and rugged self-educting foam nozzle with superior stream quality and reach. This fixed gallonage fog nozzle rated at 100 psi (7 bar) is available with your choice of 1000, 1250, 1500 or 2000 gpm (3800, 4800, 6000 or 8000 l/min). Fog angle is user adjustable between 90º wide fog and straight stream. The nozzle’s baffle is easily removed for flushing debris. The standard swivel coupling is 2.5” NH, NPSH, or BSP (65mm) or 3.5” NH (89mm) female threads. The simple flow geometry can educt foam concentrate at 1% or 3% with no small passages to clog. Nozzle comes with an industrial grade UV resistant, 10 feet long, 2” diameter (3m x 50mm) concentrate hose with two cam lock fitting for quick and secure attachment to the nozzle. The simple and basic design requires minimal maintenance. Includes folding handles for manual pattern control. Hardcoat anodized aluminum ANSI A6061-T6 for maximum resistance to corrosion and wear.


Flow Rate 1250 gpm (4800 l/min)
Inlet Coupling Style Rocker
Inlet Coupling Swivel Non-Full Time Swivel
Kfactor 1250 gpm@100 psi -- Kfactor=125(4800 l/min@7 bar)
Pattern Actuation Method Manual w/Folding Handles
Pressure 100 psi (7 bar)
Type Fixed
Weight 22.8
