Self Educting Nozzle
MASTER FOAM Nozzles
MASTER FOAM 3.5"F
Find a TFT Dealer Near You
location
MASTER FOAM Nozzles

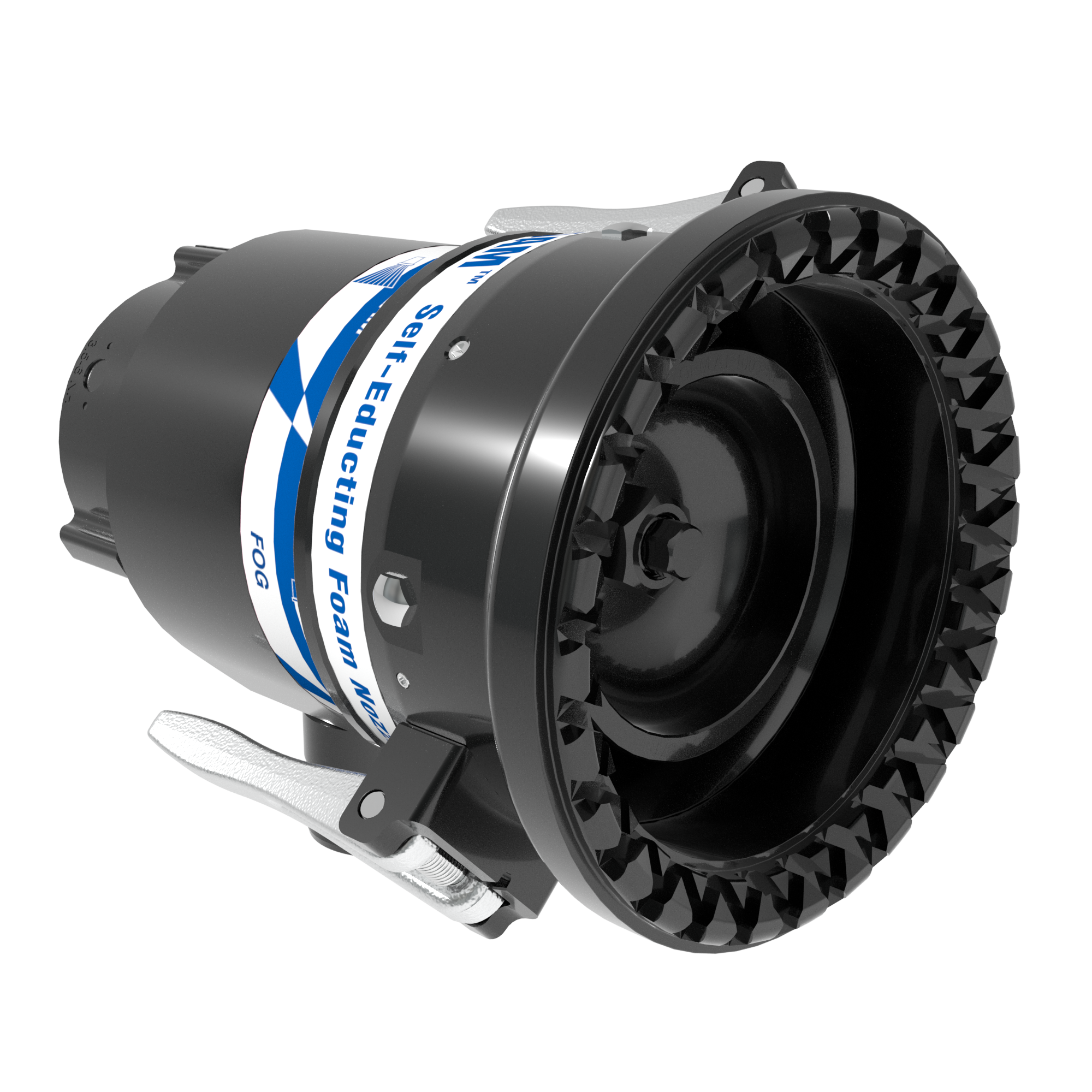

Master Foam Nozzles are self-educting firefighting nozzles that use a calibrated orifice plate to properly proportion foam solution into the water stream.
MASTER FOAM Nozzles
MASTER FOAM 3.5"F
ZMF17
2000 GPM @ 100 PSI W/10' HOSE
$3209.00 List Price
Find a Dealer
{{topic}}
{{topic}}
Features
Specifications
Flow Rate
2000 gpm (7600 l/min)
Inlet Coupling Style
Rocker
Inlet Coupling Swivel
Non-Full Time Swivel
Kfactor
2000 gpm@100psi -- Kfactor = 200(7600 l/min@7bar)
Pattern Actuation Method
Manual w/Folding Handles
Pressure
100 psi (7 bar)
Type
Fixed
Weight
36
Documents
Product Brochures
Z Indonesian MasterFoam (pdf)
Instructions For Installation, Safe Operation and Maintenance
Master Foam Nozzle Instruction Manual (pdf)
Technical Specifications and Drawings
lxm-006 (pdf)
MASTER FOAM Nozzles (pdf)
MASTER FOAM Nozzles (pdf)
MASTER FOAM SELF EDUCTING NOZZLE (pdf)
ZMF15 Finished Good Print (pdf)
ZMF17 Item Specification (doc)
